17

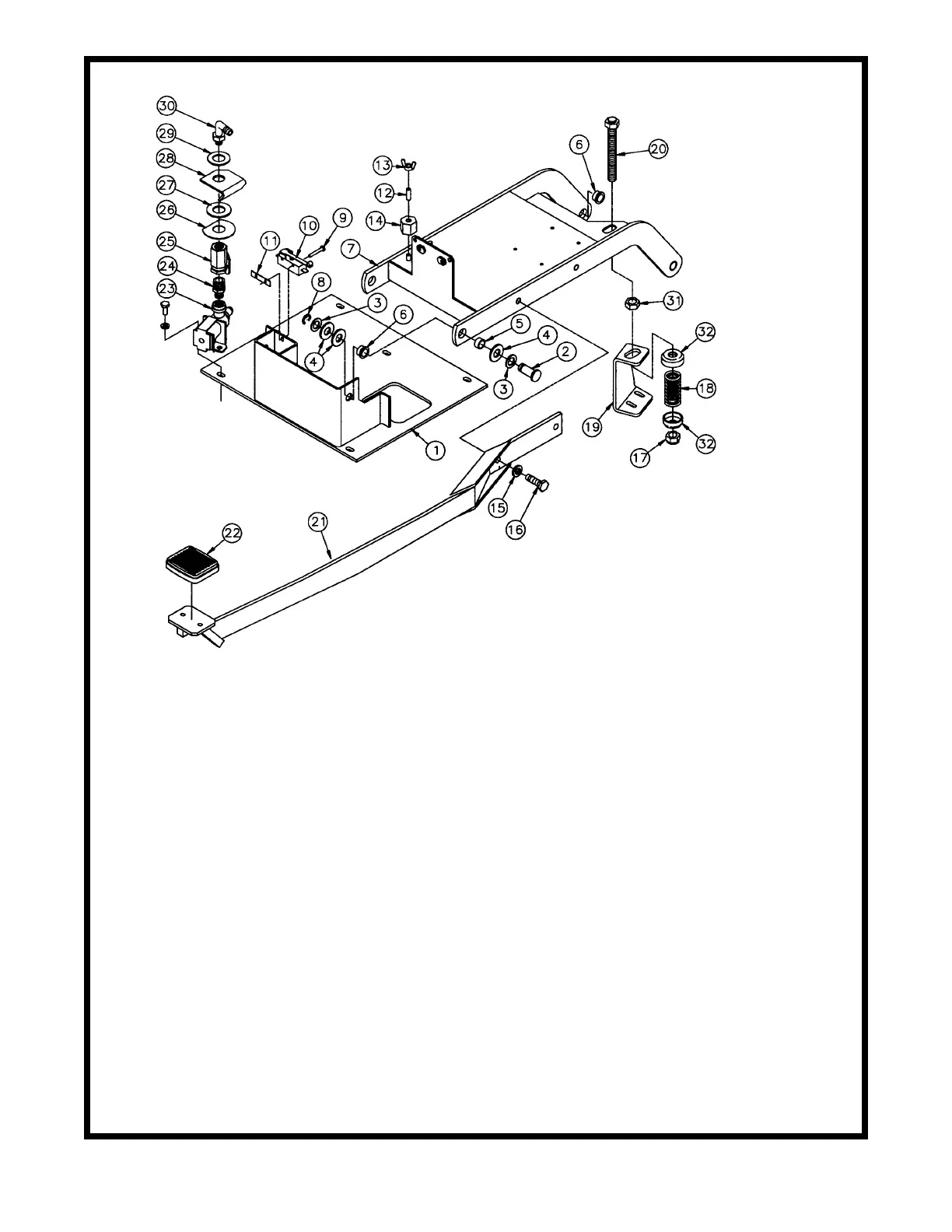

Part List
Item Part No. Qty. Description
1 200120 1 Base Plate Weldment
2 260036 2 Pin
3 712310 4 WSR-Flat .52 x .88 x .06
4 711527 6 WSR-Flat 5/8 x 1.12 x .12
5 762340 2 Oilite Bushing 1/2
6 260041 4 Oilite Flanged Bushing 1/2
7 200115 1 Lift Arm Weldment
8 711713 2 E-Ring 1/2
9 710207 2 SCR-MC 6-32 x .87
10 740128 1 Microswitch
11 711430 1 Tinnerman Clip
12 833638 2 Brass Stud
13 711368 2 Wing Nut
14 740132 2 Insulator Glastic
15 711546 2 WSR-Helical 3/8
16 713041 2 Bolt-HH 3/8-16 x 3/4 #5
17 711376 1 Nut-Nyloc 1/2 - 13
18 260137 1 Compression Spring
19 200110 1 Spring Bracket
20 200149 1 Adjustment Rod
21 200116 1 Pedal Arm Weldment
22 210142 1 Pedal
23 740493 1 Water Solenoid 24V
24 200195 1 Reducing Nipple 3/8 x 1/4
25 809413MCH 1 Solution Valve Machined
26 829463 1 WSR-Flat SS
27 828975 1 WSR-Neoprene .75 x 1.5 x .09
28 200196 1 Valve Bracket
29 711512 1 WSR-Flat .75 x 1.37 x .08
30 450040 1 Elbow 3/8 Barb x 3/8 MPT
31 711334 1 Nut-Hex 1/2 - 13
32 828264 2 Cup Washer
MOTOR LIFT TRACTION DRIVE
