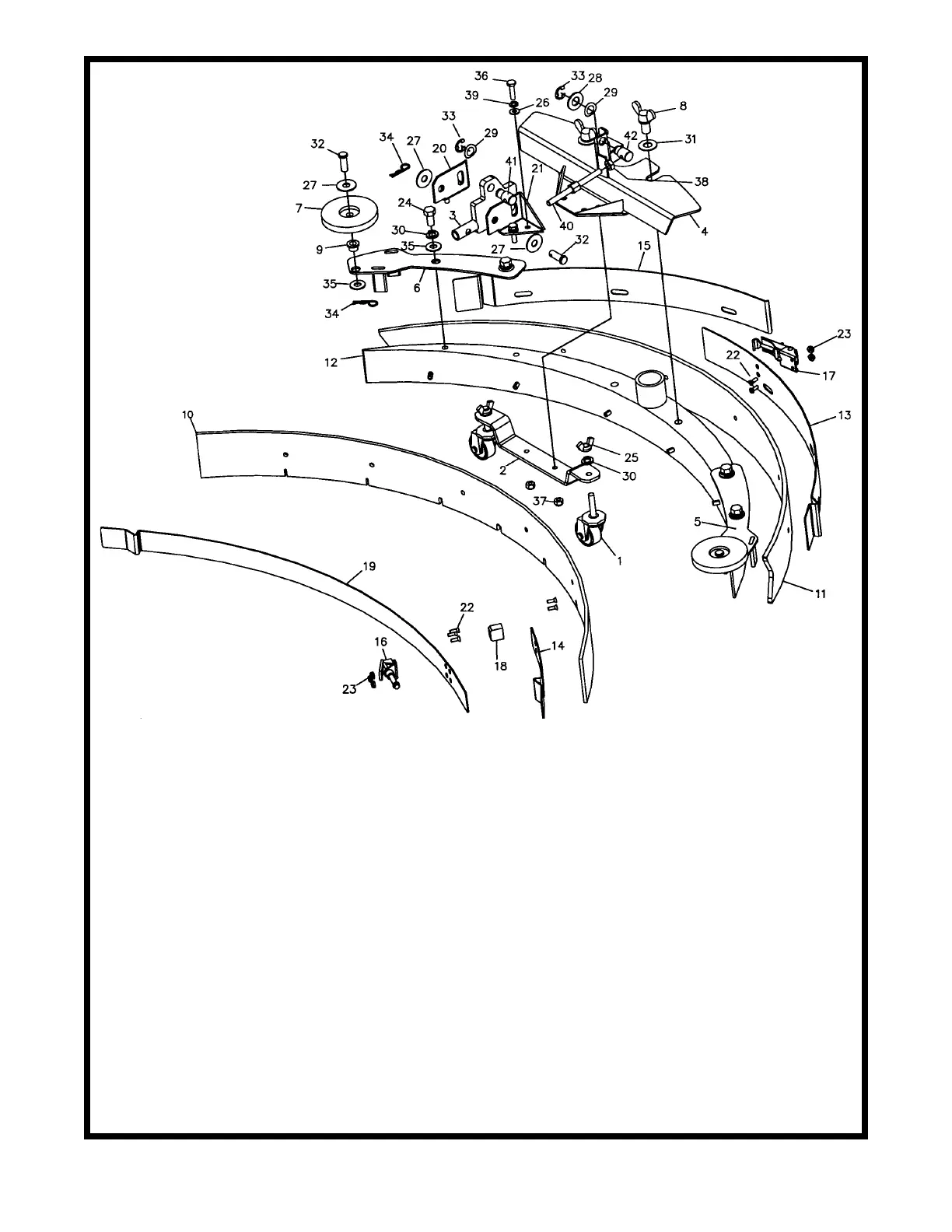

Minuteman 200X - Squeegee Assembly Complete

21
Parts List for 200348
Item Part No. Qty. Description
1 200064 2 Caster Wheel 3/8”-16 x 1-5/8”
2 200065 1 Castor Support Bracket
3 200169 1 200X Sq Lift Weldment New
4 200342 1 Squeegee Brkt Weldmt, 200X
5 200344 1 Top Plate Weldmt, 200X LH
6 200347 1 Top Plate Weldmt, 200X RH
7 210153 2 Roller Wheel
8 220249 2 Wing Bolt 1/2-13 x .75”
9 260066 2 Oilite Bushing
10 260242 1 Front Squeegee Blade 260
11 260243 1 Rear Squeegee Blade 260
12 260248 1 260 Sq. Casting w/Roll Pin
13 260339 1 Strap - Rear Latch 260
14 260344 1 Strap - Front Stop 260
15 260346 1 Strap - Rear Catch 260
16 281074 1 Squeegee Toggle Clamp, 2800
17 281075 1 Squeegee Latch, 2800
18 281740 1 Stop Bar
19 320308 1 Strap-Front Clamp 320
20 383424 1 Mounting Bracket-Right
21 383425 1 Mounting Bracket-Left
Item Part No. Qty. Description
22 710530 7 SCR-MC 8-32 x .50 BR
23 711026 5 Nut, Hex 8-32 Nyloc SS
24 711241 4 SCR-Hex 3/8-16 x .75” ZP
25 711367 2 Nut-Wing 3/8-16 ST PL
26 711504 4 WSR-Flat 1/4 ID SS
27 711507 4 WSR-Flat .37 x 1.12 x .06
28 711509 1 WSR-Flat 1/2 (.54 x 1.08 x .087)
29 711524 2 WSR-Wave .52 x .87 x .01
30 711546 6 WSR-Helical 3/8
31 711592 2 WSR-Nylon .50 x 1.06 x .06
32 711668 3 Cleavis Pin, 3/8 x 1 11-141
33 711713 2 Retaining Ring - “E” Type Ext .500
34 711808 3 Cotter Pin - Hair #13
35 712301 6 WSR-Flat .87 x .37 x .06
36 712564 4 Bolt-HH 1/4-20 x 1.00 SS
37 712667 2 Nut, Hex 1/4-20 Nyloc SS
