18

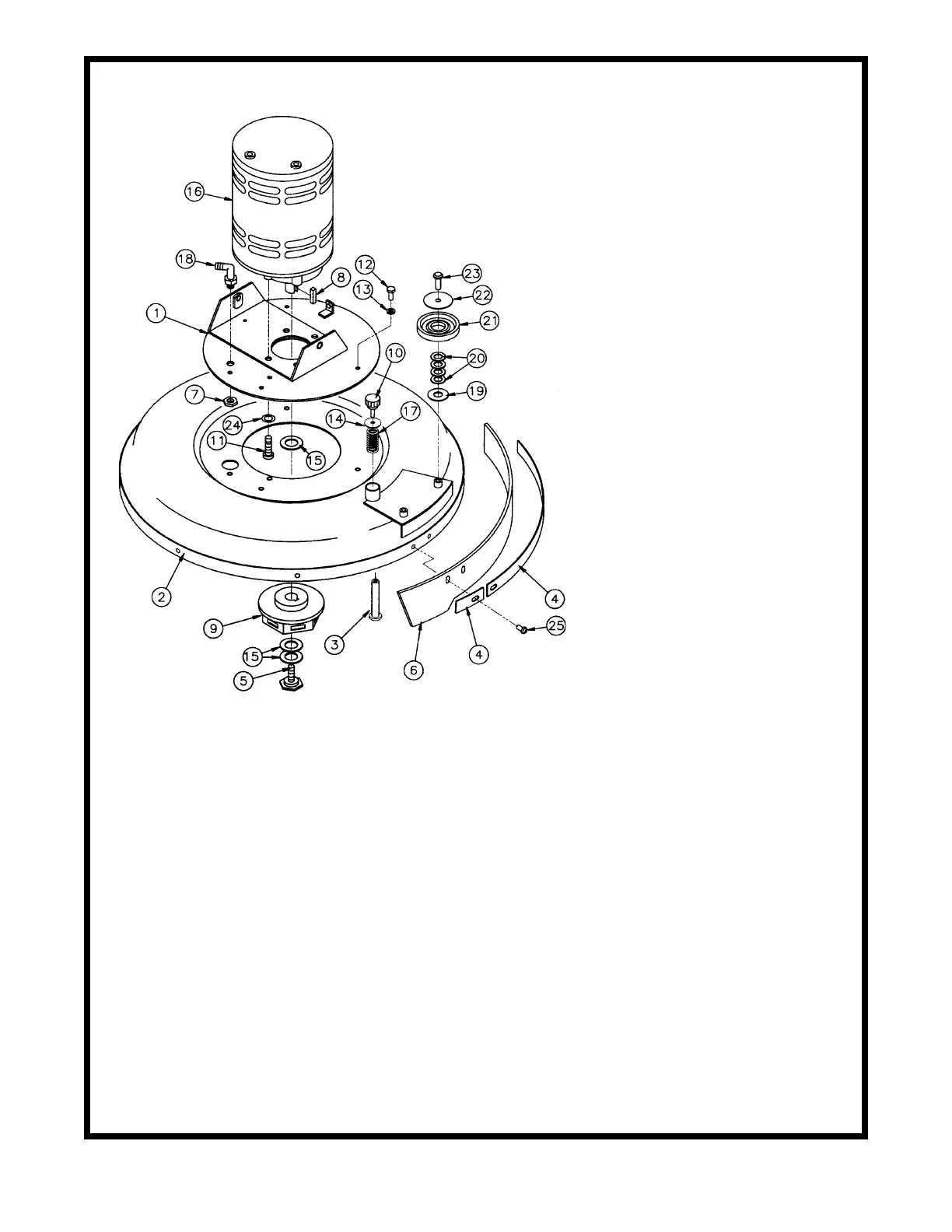

SCRUBHEAD ASSEMBLY
Part List
Item Part No. Qty. Description
1 200141 1 Motor Platform Weldment - TD
2 200187 1 Brush Shroud Weldment
3 200194 1 Pin, Brush Release
4 200294 2 Shroud Strap
5 210066 1 Retainer Bolt
6 200293 1 Shroud Skirt
7 260183 1 Nut 1/4 NPT Nylon
8 833621 1 Key, 1/4 x 1/4 x 1.00
9 430035 1 Drive Hub
10 500033 1 Locking Screw
11 710986 4 SCR-SC 3/8-16 x 1.00
12 711202 3 SCR-MC 1/4-20 x 1/2
13 711544 3 WSR-Helical 1/4
14 711519 1 WSR-Flat .25 x 1.00 x .03
15 711517 3 WSR-Flat 3/4
16 740209 1 Gear Motor 24V
17 833102 1 Spring
18 833325 1 Hose Barb 90 Nylon
19 711578 2 WSR-Flat 1/2 Brass
20 712310 8 WSR-Flat .52 x .87 x .06
21 430085 2 Bumper Wheel
22 712579 2 WSR-Flat .31 x 1.37 x .06 SS
23 710975 2 SCR-SC 5/16-18 x .87
24 711555 4 WSR-Lock Internal 3/8
25 712560 8 SCR-MC 1/4-20 x .50 Nyloc
To Next Page
