14

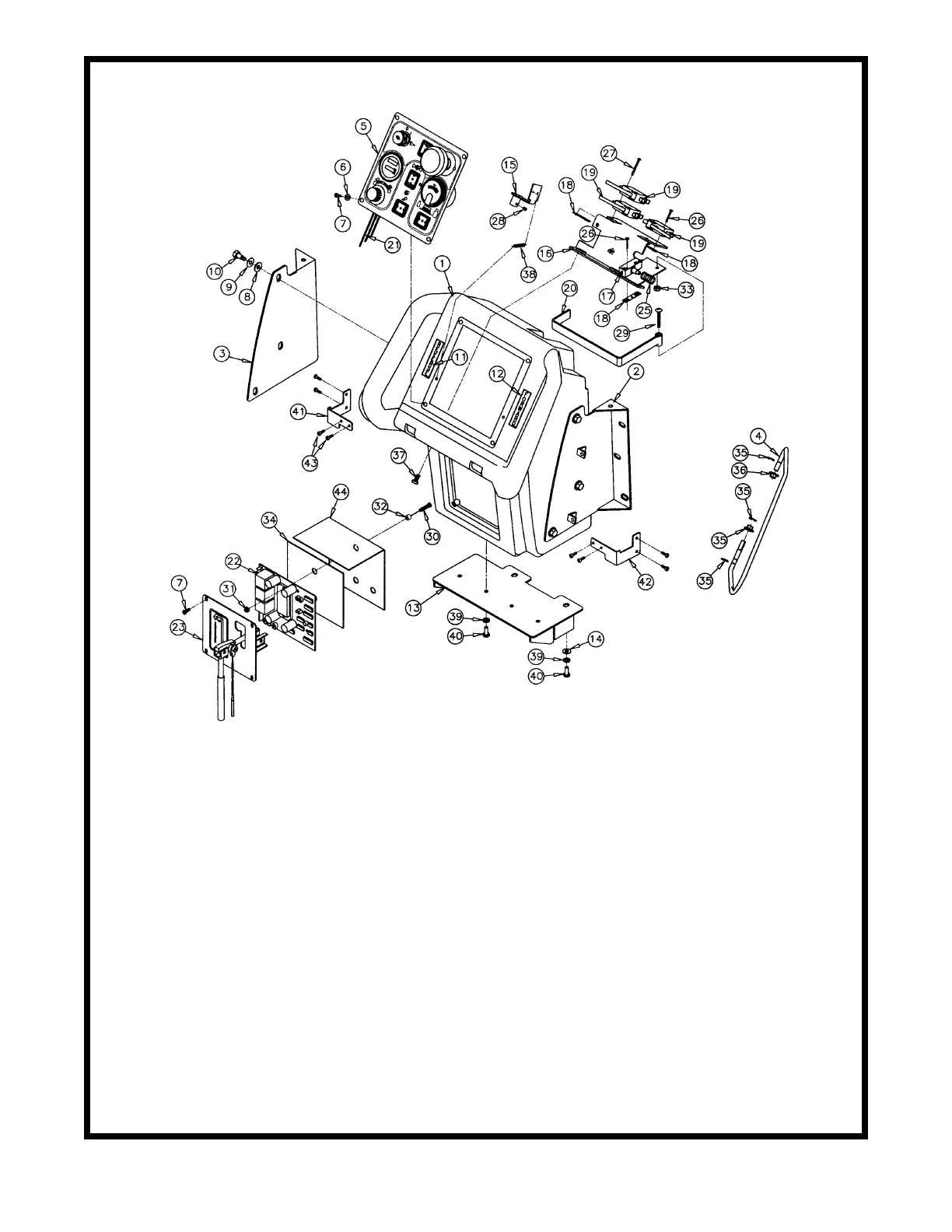

CONSOLE ASSEMBLY
Parts List for 200180
Item Part No. Qty. Description
23 200240 1 Squeegee Lift Assy.
24 200241 1 Squeegee Lift Cable
25 670093 1 Spring, Compression
26 710307 4 SCR-MC 6-32 x 1 ST PL
27 710312 2 SCR-MC 6-32 x 1.75 ST PL
28 711004 2 SCR-SK 1/4-20 x .25 SS
29 712569 1 SCR-MC 1/4-20 x 1.50 SS
30 710534 2 SCR-MC #8-32 x 1”
31 711372 2 Nut, Nyloc #8-32
32 200340 2 Spacer, S-C Board
33 829052 1 Nut, Hex 1/4-20
34 805637 1 SCR Insulator
35 711721 6 Retaining Ring .312
36 829052 4 Bushing Flanged, Nylon
37 710180 2 SCR-MC 1/4-20 x 1”
38 220324 2 Spring
39 711544 6 WSR-Helical 1/4
40 711203 6 Bolt-HH 1/4-20 x .62
41 200039 1 Bail Stop (RH)
42 200040 1 Bail Stop (LH)
43 711160 8 Screw Hi-Lo #10 x 5/8 PL
44 260210 1 Moisture Guard SCR 260TD
Item Part No. Qty. Description
1 200104MCH 1 Console Machined
2 200134 1 Console Bracket Right
3 200135 1 Console Bracket Left
4 200181CTD 2 Handle Wire, Coated
5 200295 1 Dashboard Assy. TD/DLX
6 712320 4 WSR-Nylon .22 x .45 x.04
7 712540 8 SCR-MC #10-24 x .37 SS
8 711575 6 WSR-Flat .31 x .75 x .06
9 711545 6 WSR-Helical 5/16
10 711228 6 Bolt-HH 5/16-18 x .75
11 715258 1 Decal, “Reverse”
12 715257 1 Decal, “Forward”
13 200151 1 Hinge Bracket Weldment
14 711505 2 WSR-Flat 1/4
15 200338 2 Cam Weldment
16 200184 1 Switch Bracket Weldment
17 742472 1 Switch, McGill NC
18 711430 3 Nut-Tinnerman 6-32
19 833329SA 3 Swtich, Staggered Action
20 200190CTD 1 Lever, Switch, Coated
21 743240 1 Harness, 200 Console
22 740944-1 1 Speed Control, 24V 1203A225
To Next Page
