Part List 200295
Item Part No. Qty. Description
1 200179 1 Dashboard Plate
2 715280 1 Decal 200 Dashboard
3 809874 1 Knob
4 743501 1 Meter, Hour Battery 24V
5 742102 1 Switch, 23670C4D
6 740811 1 Switch Boot
7 741005 1 Keyswitch On-Off
8 740711CE 1 Switch Dreefs w/Splashguard
9 742202 1 Disconnect Switch 125A
10 743049 1 Gauge, Brush Pressure
11 743199-1 1 Pot Assy w/o Resisto
Part List 200175
Item Part No. Qty. Description
1 200124 1 Backpanel Weldment
2
3 711368 2 Wing Nut, 1/4-20
4 740132 2 Insulator (Glastic)
5 740238 2 Circuit Breaker 18
6 740247 1 Circuit Breaker 30
7 742000 3 Diode Assembly
8 740549 1 Circuit Breaker 50
9 741037 1 5 Sec. True Off Delay Timer
10 742403 1 Shunt, Calibrated
11 743250 1 Wire Harness, Lower Assy.
12 788147 3 Solenoid 24VDC
13 833638 2 Brass Stud
14 711425 8 Whiz-Nut 1/4-20
15 712823 1 SCR-THMS 10-24 x 1”
16 712320 1 WSR-Nylon .22 x .42 x .04
17 712536 2 SCR 10-24 x .62
18 740159 1 CB175 Red Housing Only
19 711210 2 SCR-HH 1/4-20 x 1 1/4
20 742748 4 Boot, Circuit Breaker

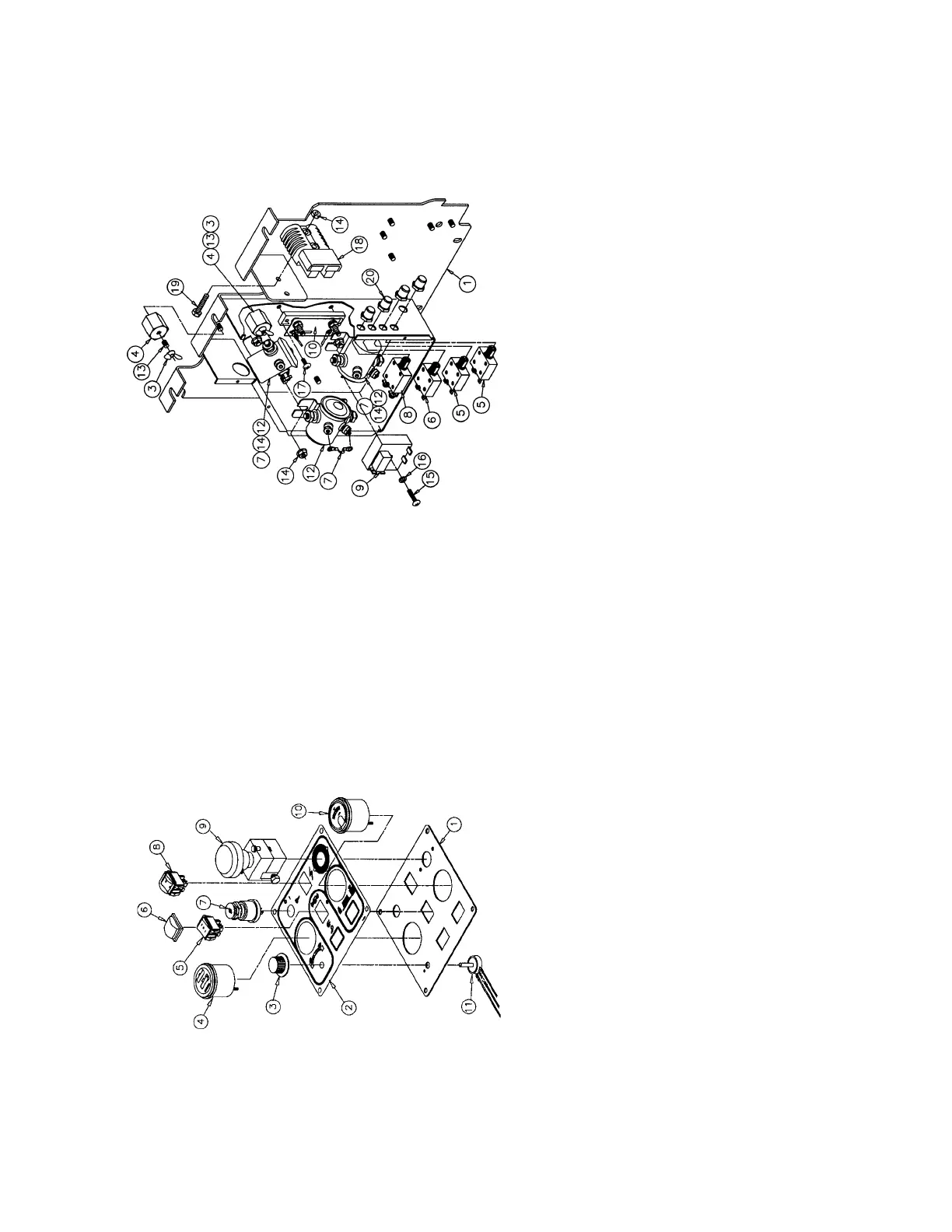

DASHBOARD BACK PANEL
