Machine Overview

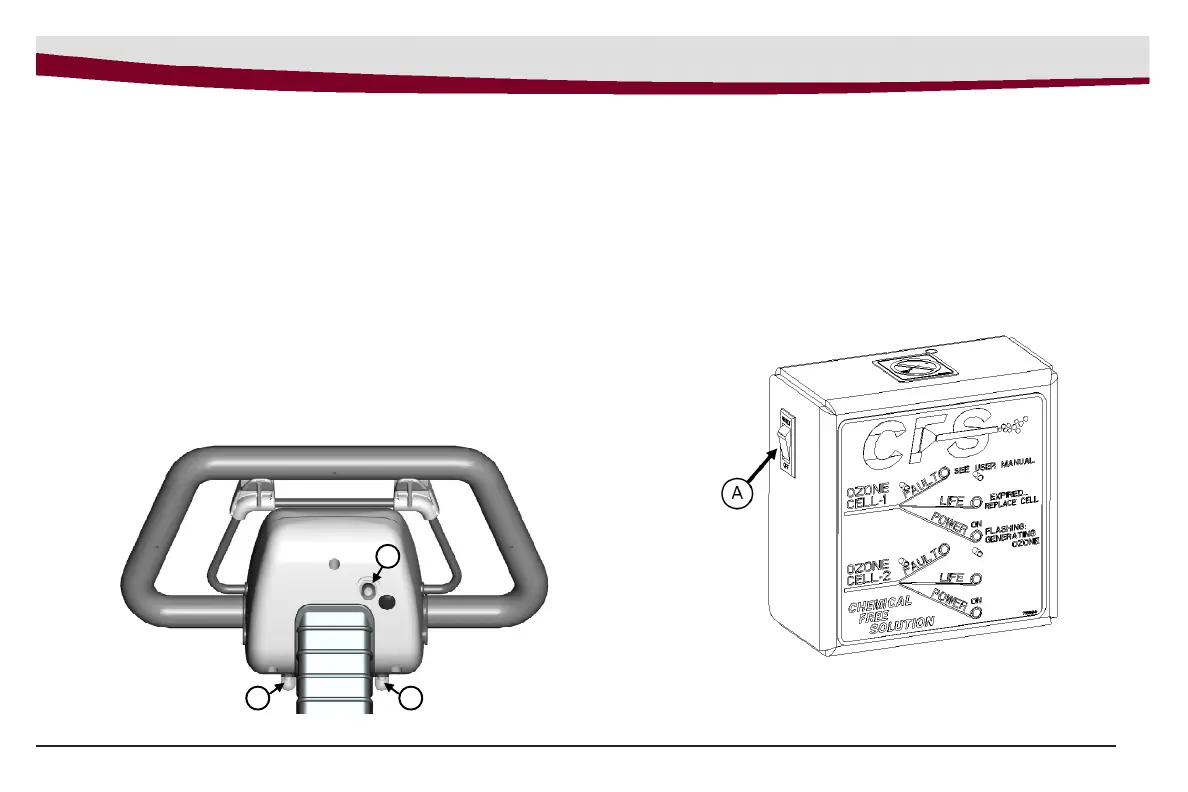

Circuit Breakers
The circuit breakers are located on bottom and rear of the
handle assembly.
1. BRUSH MOTOR BREAKER - (X17115) 1.5 amp
(X17230) 1.0 amp
2. VACUUM PUMP BREAKER - (X17115) 12 amp
(X17230) 7.5 amp
3 SPRAY JET PUMP\AUX POWER & PUMP BREAKER -
(X17115) 1.5 amp
(X17230) 1.0 amp
If any of the functions above are not operating, check if the
circuit breaker buttons have tripped. Press to reset.
2
3
1
3
1
CFS Control Box
The CFS Control Box is located on the back of the
machine to the left side of the handle assembly.
A. ON/OFF (RESET) SWITCH FOR CFS
The ON/OFF (RESET) Switch for the CFS controls the
power ON and power OFF. This switch is also used to
reset the CFS function of the X17 CFS machine.
