Minuteman X17 - Solution Tank In-Line Filter; Vacuum Intake Filter

14
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Machine Overview
Solution Tank In-line Filter
The In-line Filter protects the water pump from large debris.
This lter should be cleaned regularly.

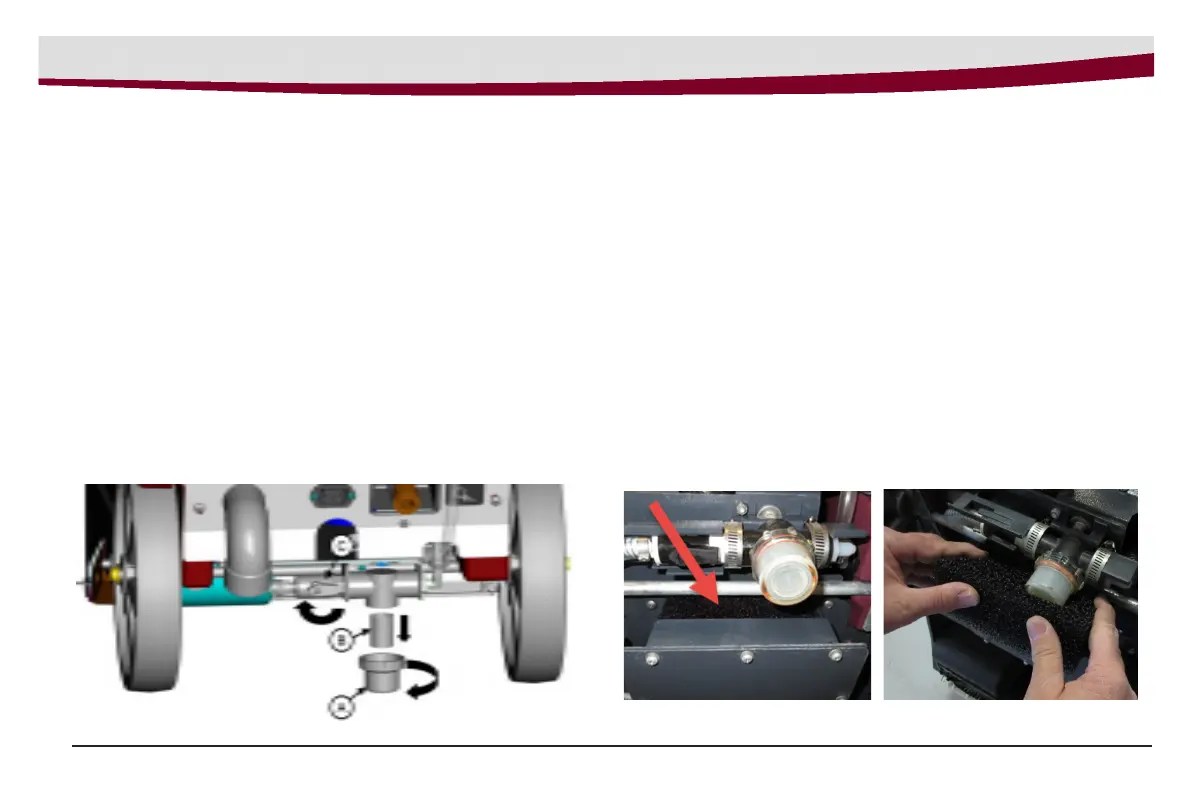

Steps to cleaning Solution Tank In-line Filter (See Figure 1):
1. Close the Shut-off Valve (C) by turning the handle 90
O
clockwise. When handle is perpendicular to water line the
valve is closed.
2. Next, twist the Filter Cap (A) counterclockwise.
3. Remove cap and Filter (B), clean with water.
4. Place lter back into cap, turn cap clockwise onto lter
body, tighten by hand. Note: Using tools to tighten
may damage plastic threads.
5. Open the Shut-off Valve (C) by turning the handle 90
O
counterclockwise.
Vacuum Intake Filter
The Vacuum Intake Filter protects the intake vacuum from
large debris. This lter should be cleaned regularly.
Steps to cleaning Vacuum Intake Filter:
1. Unplug machine from power source outlet.
2. Drain Solution and Recovery tanks.
3. Filter is located above CFS Power Supply Box on the
underside of the machine. Tilt machine forward on the
vacuum shoe until the lter is visible. (See Figure 2)
4. Once the lter is visible and the machine is supported in a
stabilize position - remove the lter. (See Figure 3)
5. Rinse and clean lter with water. Allow lter to air dry.
6. Insert lter back into original location.
Figure 2 Figure 3
Figure 1
