Minuteman X17 - Solution Tank Drain Hose; Solution Level Indicator

15
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Solution Tank Drain Hose

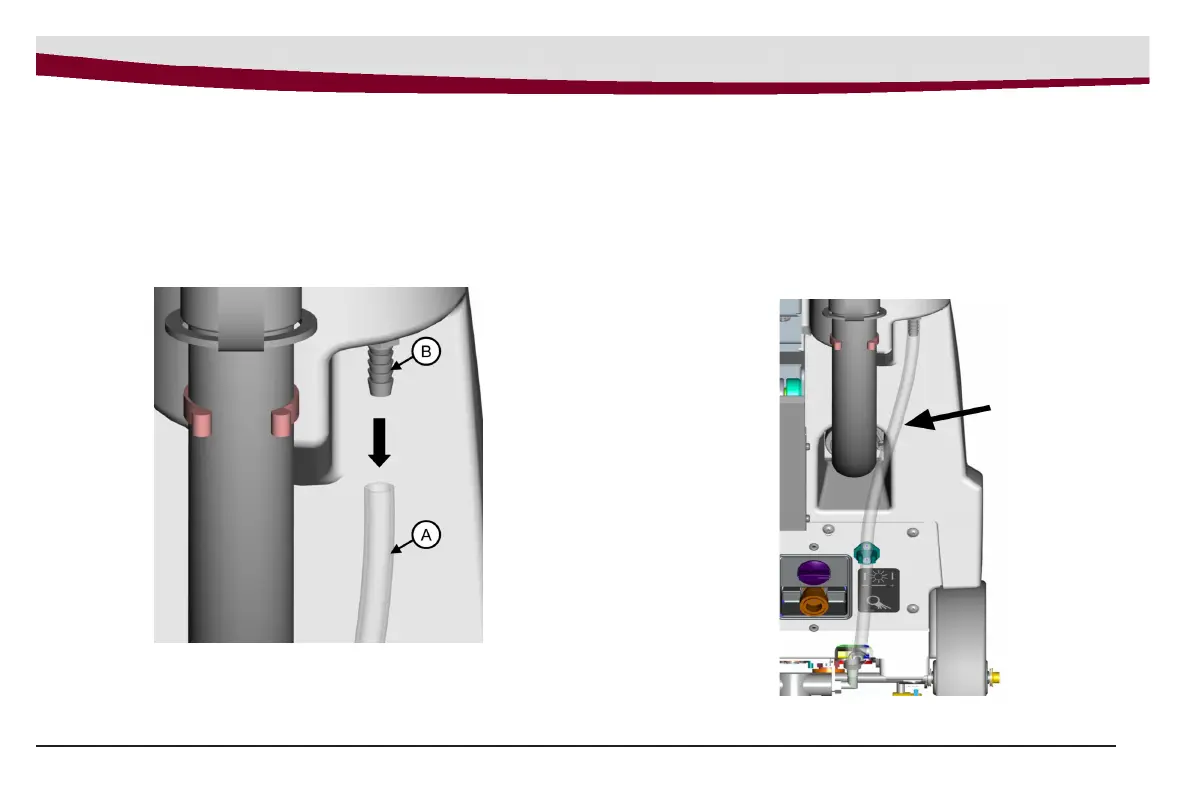

The solution tank may be drained by removing the Solution
Tank Drain Hose (A) from the Hose Barb (B) and routing
the hose to a oor drain. (See Figure 4)
Solution Level Indicator
The solution Tank Drain Hose also serves as a water
level indicator for the solution tank. The amount of water
remaining in the solution tank can be seen through the clear
drain hose. (See Figure 5)
Machine Overview
Figure 4
Figure 5
