8
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

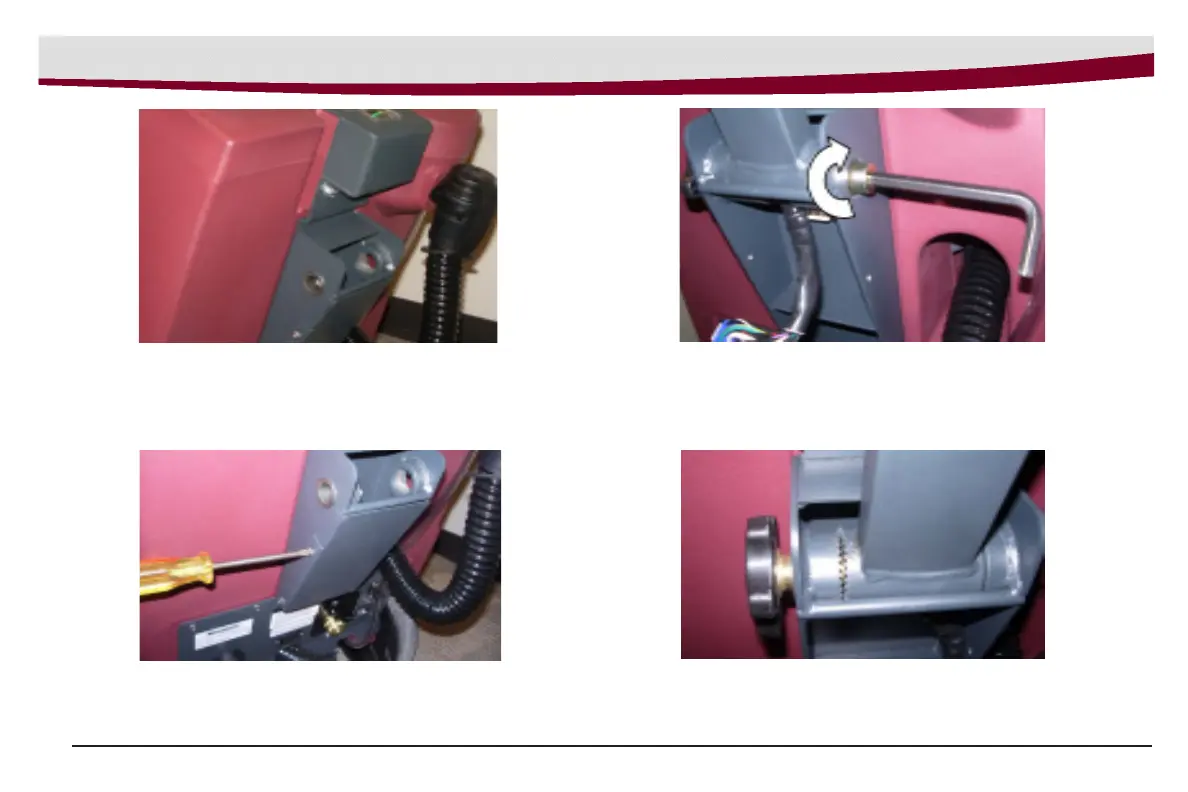

2. Use philips screwdriver to unscrew 4 screws
and remove cover.
3. Insert handle assembly in between bushings. Insert
the shoulder bolt through the bushing and screw
into the handle assembly using supplied wrench.
4. Align the teeth on the bushing and handle
assembly before tightening the adjustment knob.
1. Unpack machine.
Assembly
