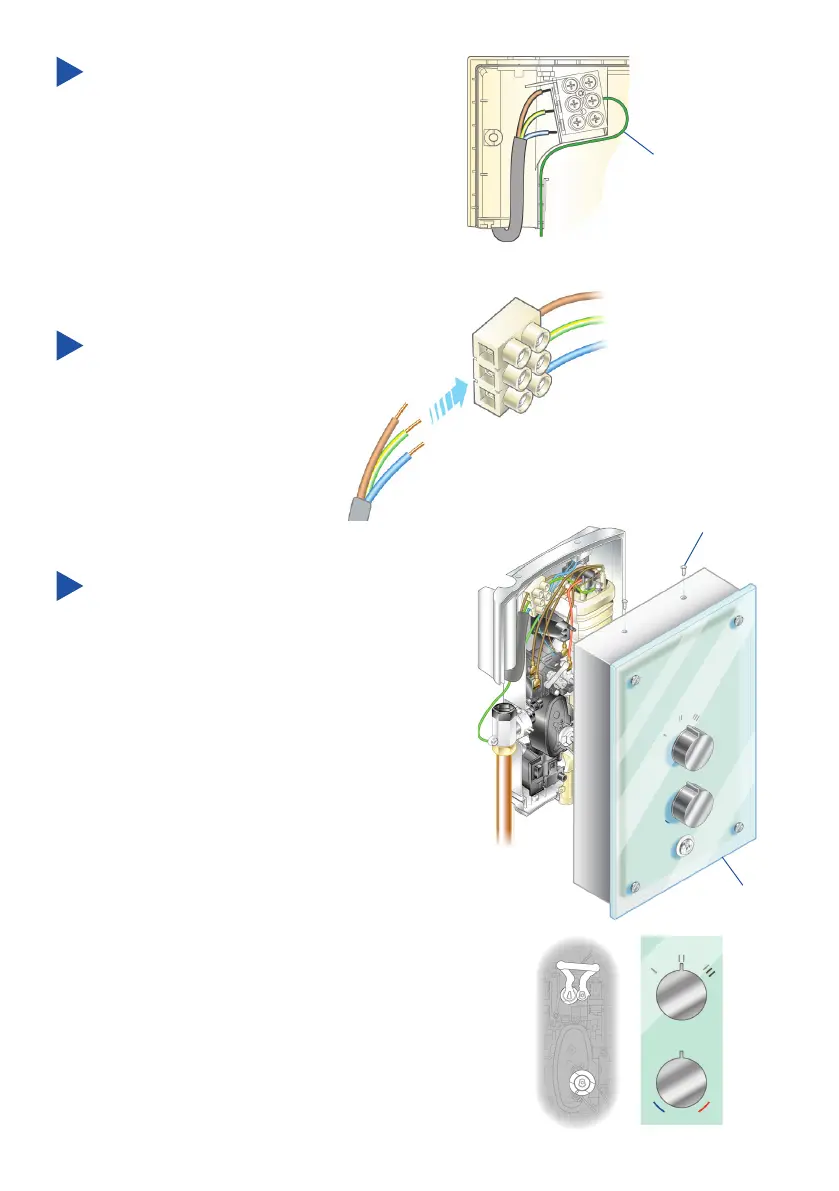

Feed cable into Case. Fit Earth
sleeve (not supplied) and then strip
insulation.
Do not twist cable cores.
Firmly connect the conductors. Do not
exert strain on the terminal block.
L = BROWN
E = GREEN/YELLOW
N = BLUE
Refit the Cover, making sure it is
correctly located. Do not overtighten
screws.
Caution! Handle the glass cover
assembly with care.
Do not use alternative screws to
secure the Cover. This can cause
internal damage to the appliance.
Do not seal around the back of
appliance.
When tting the Cover, position the
controls to correspond with the internal
drive features as shown.
Cover
Cover Retaining
Screw
Important! Make sure
that the inlet earth wire is
routed as shown. Failure
to do so may cause
product malfunction.
