Mira Elite ST Installation Guide

11
2. Electrical
Read the section 'Important Safety Information' rst.

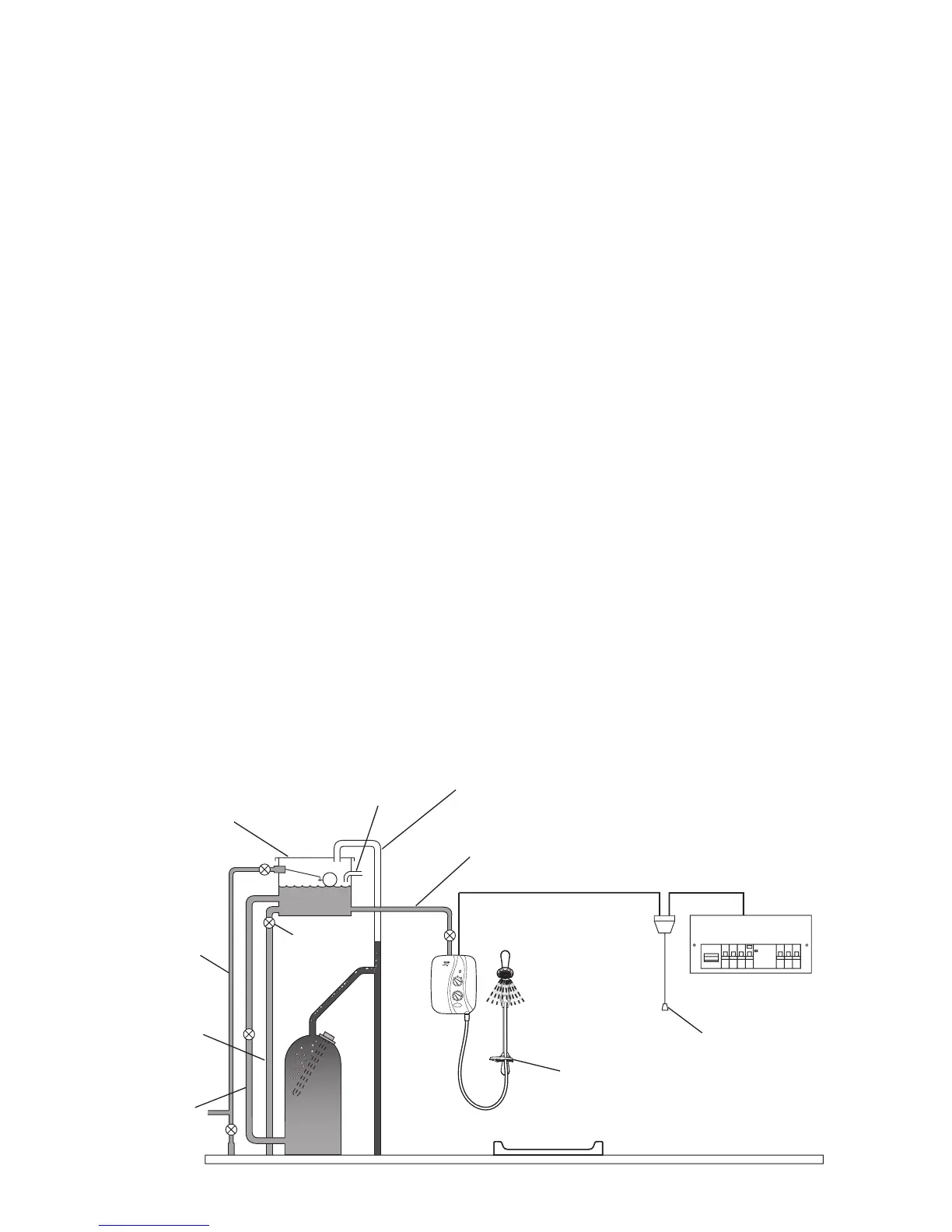

Plumbing and Electrical Schematic Diagram
Consumer Unit
Double Pole
Isolating Switch
Soap Dish/
Hose Retaining
Ring
Cold Water Storage
Cistern (Tank)
Hot Water
Cylinder Vent
Pipe
Isolating
Valve
Independent Cold Water Supply
to Shower
Warning Pipe
Hot Water
Cylinder
Feed
Cistern Fed
Cold Supply
to Other
Outlets
Cold Water
Mains Feed
Checklist
2.1.1 Electrical supply fuse and consumer unit are adequate for the product.
2.1.2 Shower unit is earthed.
Caution! For the Mira Elite ST 10.8 kW model the minimum required supply cable
size is 10 mm
2
.
2.1.3 The minimum required supply cable size must conform to BS 7671.
Note! The terminal block will not accept cable larger than 16 mm
2
.
2.1.4 Double pole isolating switch.
2.1.5 Do not twist live or neutral cable cores.
2.1.6 Electrical connections are tightly secured.
Do not strain terminal block.
2.1.7 Plumbing supply completed before electrical supply is turned on.
2.1.8 Unless otherwise stated, electrical equipment such as extractor fans, pumps
must not be connected via this product.

Mira Elite ST Specifications

General

Flexible hose	Yes
Product color	Chrome, White
Number of shower heads	1 head(s)
