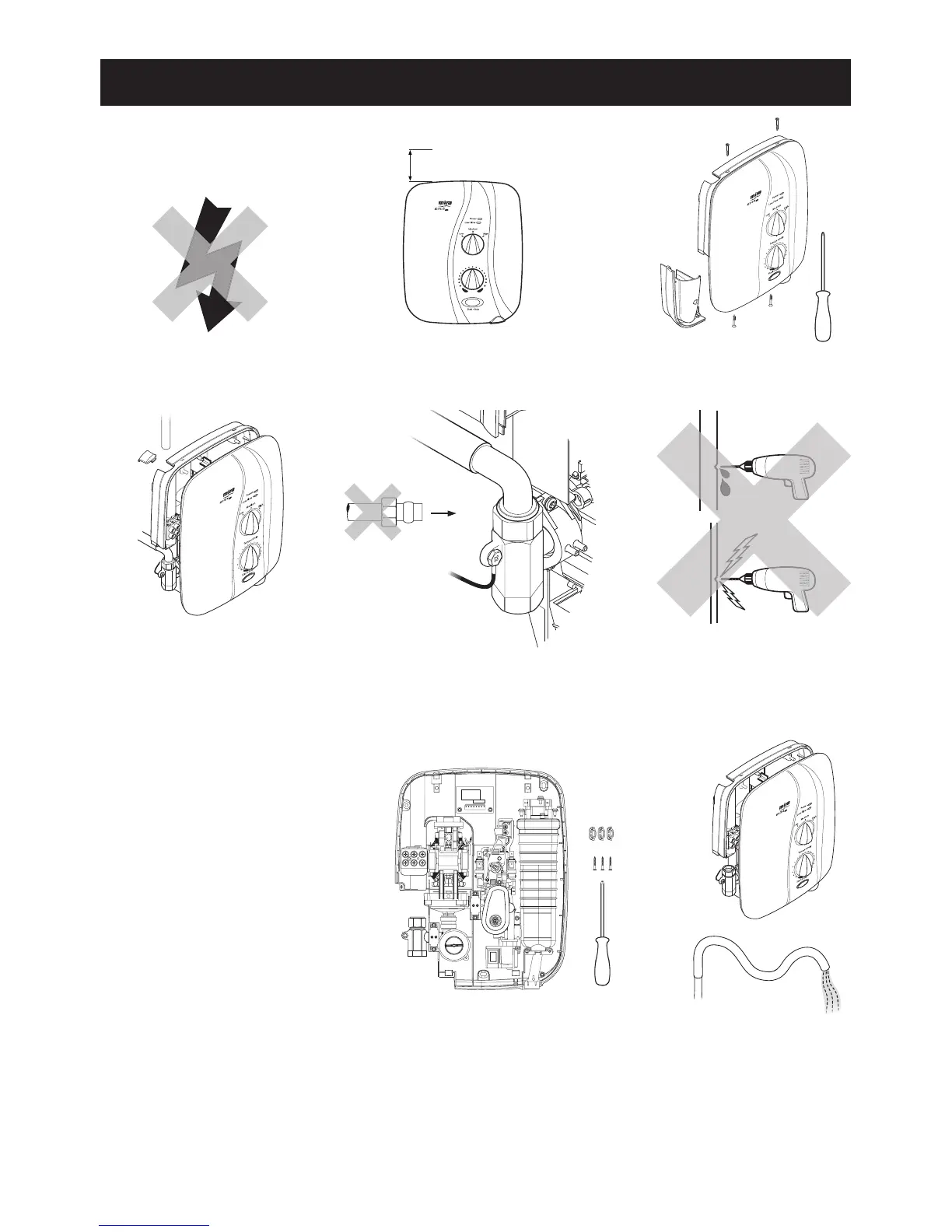

INSTALLATION
Read the section 'Important Safety Information' rst.
Electrical supply is turned
off at the mains.
200 mm minimum gap
from ceiling.
Remove the four cover
screws.
CAUTION! Do not drill into
buried cables or pipes.
Remove the cover and
determine supply pipe
position.
For rear inlet, use soldered
elbow. Do not trap green
wire.
Fit Rubber Feet and fix
appliance to wall.
Flush a minimum of 10
litres through pipework.
1. 2.
200 mm
3.
4. 5. 6.
7.
8. 9.
Hold the product on the
wall in the desired location
and mark the positions of
the xing holes.
Remove the product from
the wall.
Drill the three holes.
(Wall xings are not supplied.
For solid wall structures a red
rawl plug and a no. 8 x 1½”
countersunk brass or stainless
steel screw should be used.
For other wall structures such
as panels alternative xings
may be required. A minimum
of 3 xing screws should be
used)
