Mira Elite ST Installation Guide

5

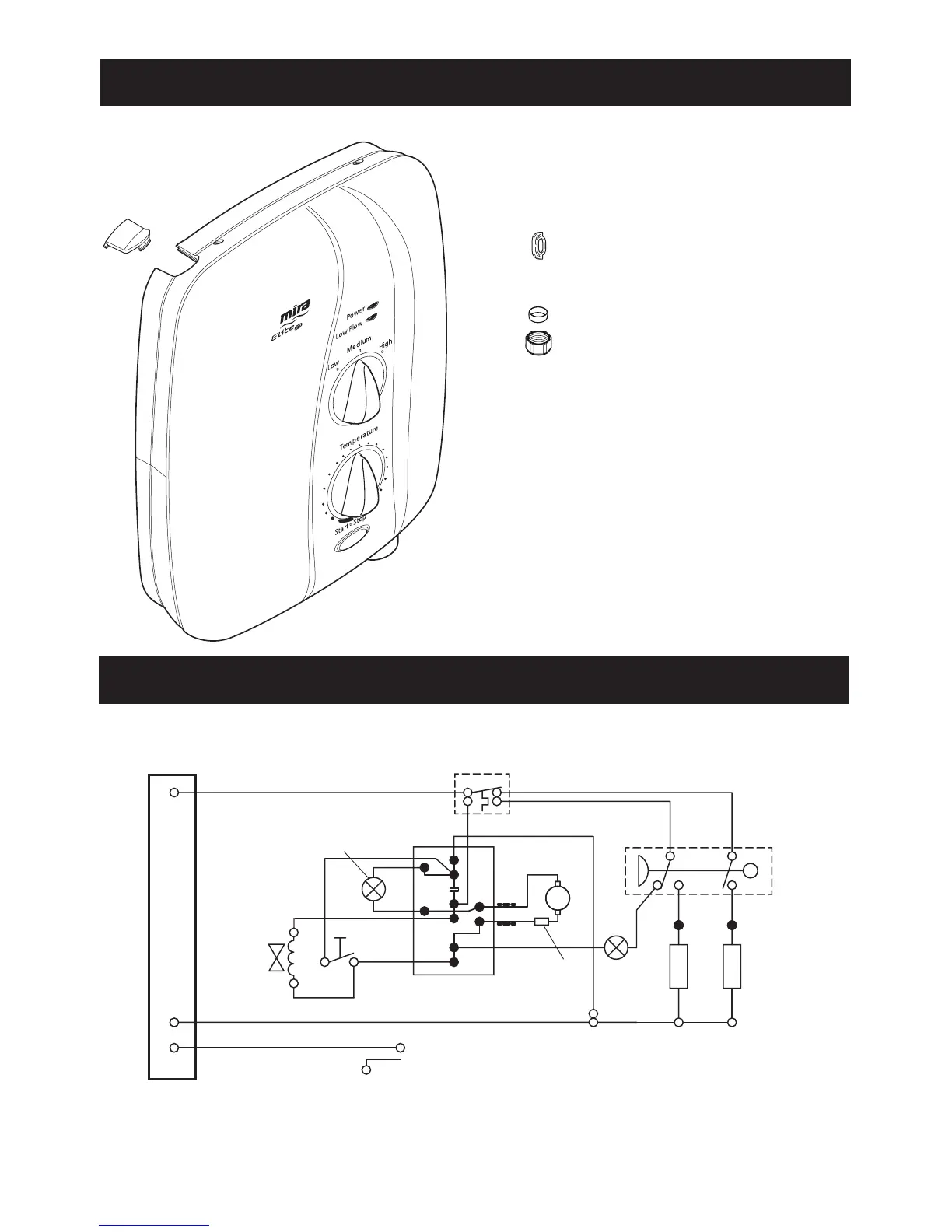

PACK CONTENTS CHECKLIST
q 1 x Mira Elite ST
q 1 x Compression Nut
q 1 x Olive
q 3 x Rubber Feet
q 1 x Case Insert
Documentation
q 1 x Installation and User Guide
q 1 x Guarantee Registration Document
Tick the appropriate boxes to familiarise yourself with the part names and to conrm that the parts are
included.
RED
RED
BROWN
MOTOR
BROWN
BROWN
BROWN
BROWN
BLUE
GREEN
GREEN
ORANGE
BLACK
STOP/START
INLET CONNECTOR
TANK CONNECTION
LOW FLOW NEON
POWER ON NEON
THERMAL TRIP
PRESSURE / POWER SELECTOR SWITCH
SOLENOID VALVE
BLACK
BLACK
BLUE
C 0.1u
BLUE
BLUE
THERMAL CUTOUT DUAL DISC
L
L NE
N
LOAD
HIGH
LOW
WIRING DIAGRAM

Mira Elite ST Specifications

General

Flexible hose	Yes
Product color	Chrome, White
Number of shower heads	1 head(s)
