Field Wiring

8.2.6 Single Loop Terminal Connections - Style 6

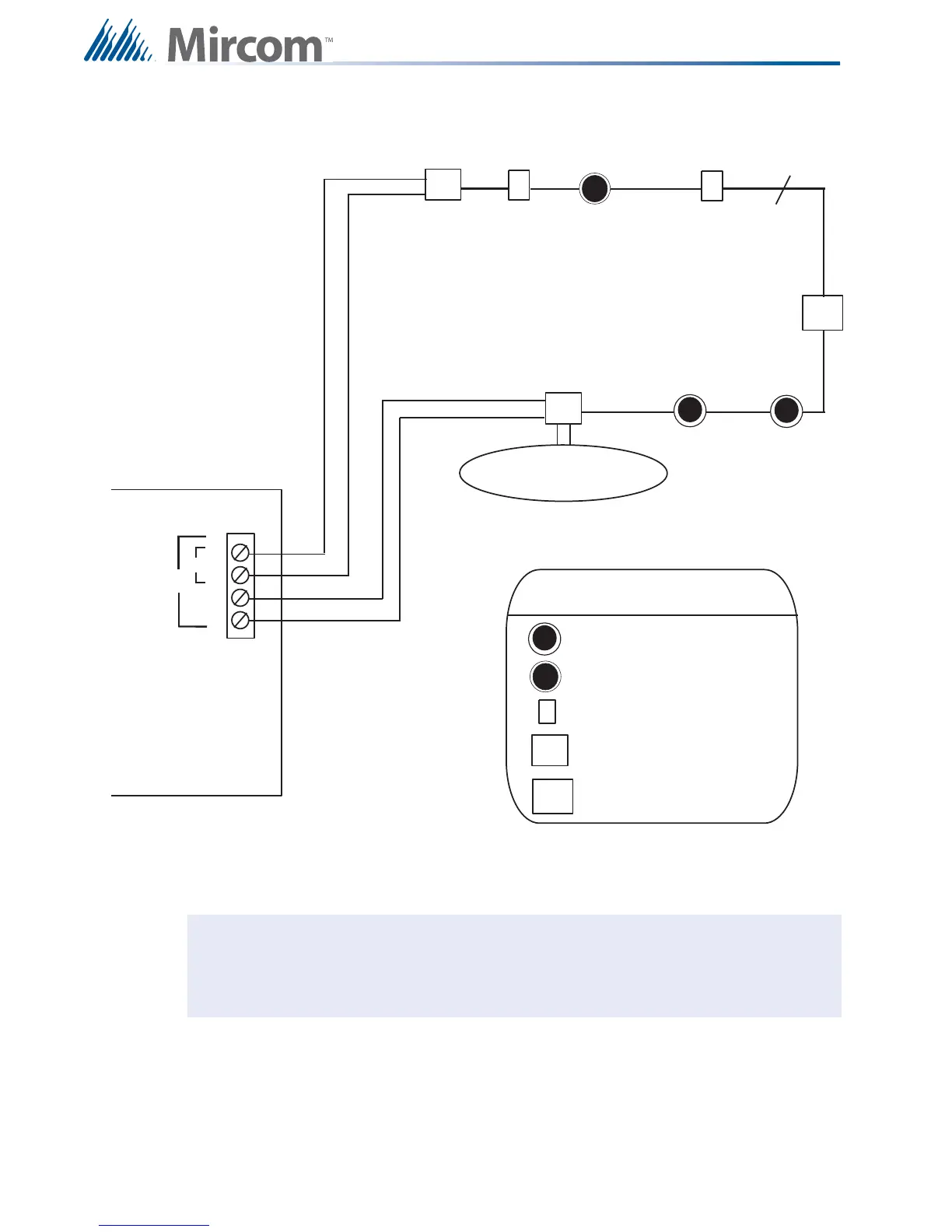

Figure 38 Single Loop Terminal Connections - Style 6

Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.

Loop wiring: maximum loop resistance is 40 ohms total. These lines are fully

supervised.

ADDRESSABLE

THERMAL SENSOR

ADDRESSABLE

SMOKE DETECTORS

LEGEND

Addressable Smoke Sensor

Addressable Thermal Sensor

Addressable Manual Pull Station

Addressable Monitor Module

TWO WIRES

Addressable Relay Output Module

ANALOG

LOOP A

ALC-198S SINGLE

LOOP MODULE

Conventional 4-Wire Smoke

Detectors, Heat Sensors

and Manual Pull Stations
