25

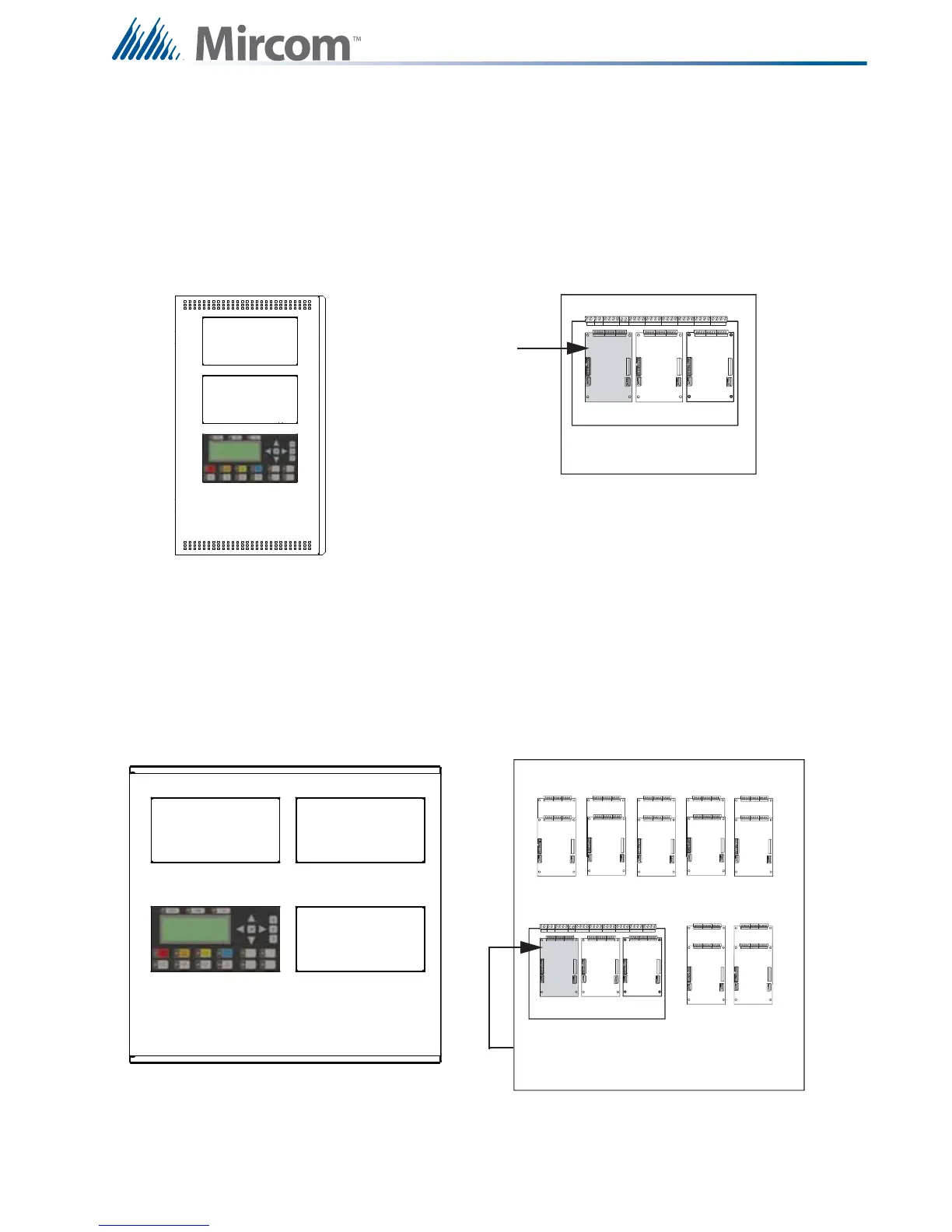

Display and Adder Modules Mounting Locations
6.0 Display and Adder Modules Mounting Locations
6.1 FX-2003-6DS/FX-2003-12DS/FX-2003-6DS-16LED Compact
Main Chassis
Mounts in the UB-1024DS backbox and supports three circuit adder modules.
6.2 FX-2017(S)-12DS Mid-size Main Chassis
Mounts in the BBX-1072ADS or BBX-1072ARDS Enclosure, and supports three display
modules and 17 adder modules.
Exterior View Interior View
Exterior View Interior View
Slot is reserved for
PR-300 or UDACT-
300A. If not
required, this slot
can be used to
mount any of the
adder modules.
1
23
45
67
89101112
1314151617
FX-2000 Main Board
Slot is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
