26

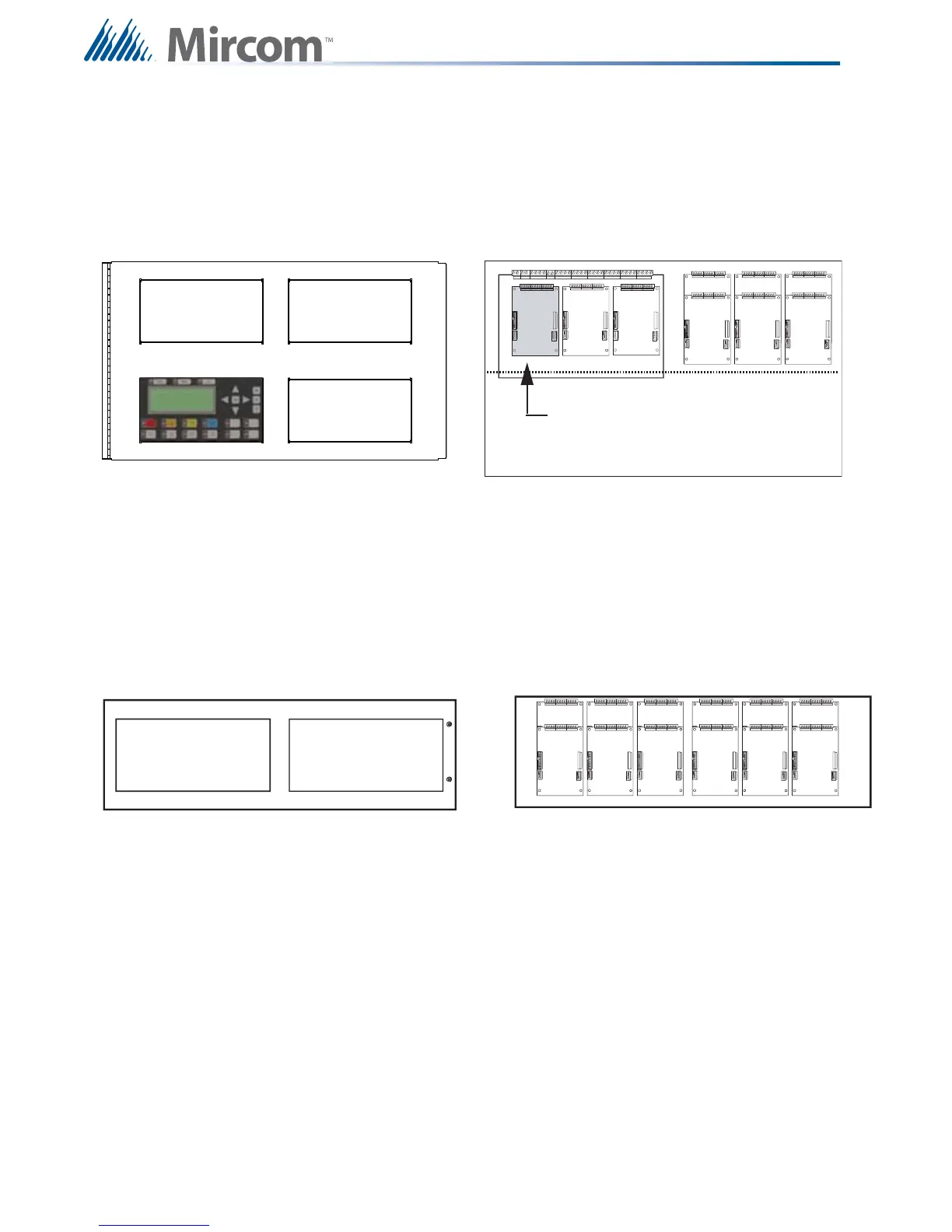

Display and Adder Modules Mounting Locations
6.3 FX-2009(S)-12DS Large Main Chassis
Mounts and occupies four display positions in BB-5008 or BB-5014 Enclosures, and supports
two display modules and nine adder modules.
6.4 ECX-0012 Expander Chassis for FX-2009-12DS
Mounts and occupies two display positions in BB-5008 or BB-5014 Enclosures, and supports
two display and 12 adder modules.
Exterior View Interior View
Exterior View Interior View
Cutout to mount
display module
Cutout to mount
display module
Cutout to mount
display module
4
231
56
789
FX-2000 Main Board
Slot is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
Cutout to mount
display module
Cutout to mount
display module
1
2
34
56
789101112
