Field Wiring

8.2.6 Single Loop Terminal Connections - Style 6

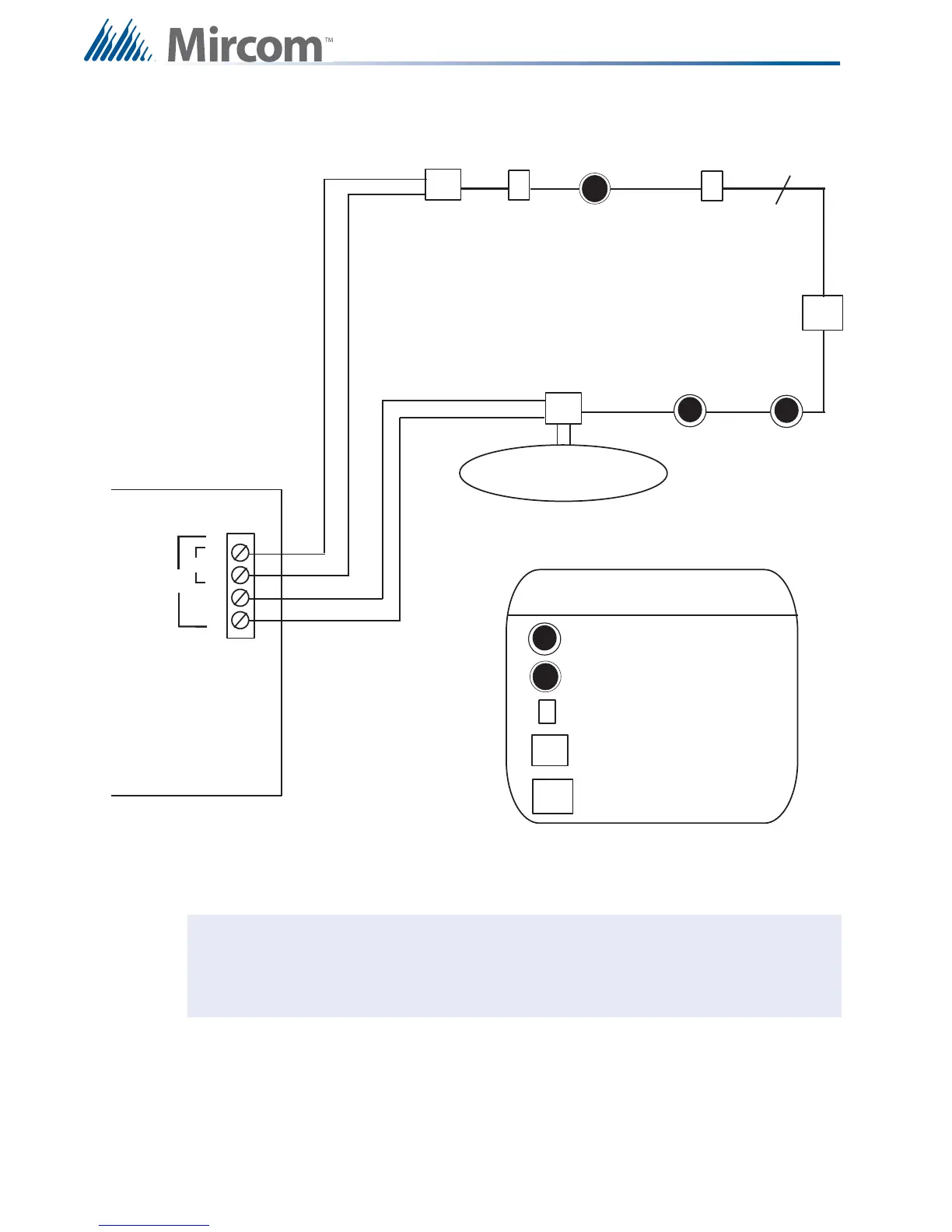

Figure 38 Single Loop Terminal Connections - Style 6

Notes: All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.

Loop wiring: maximum loop resistance is 40 ohms total. These lines are fully

supervised.

ADDRESSABLE

THERMAL SENSOR

ADDRESSABLE

SMOKE DETECTORS

LEGEND

Addressable Smoke Sensor

Addressable Thermal Sensor

Addressable Manual Pull Station

Addressable Monitor Module

TWO WIRES

Addressable Relay Output Module

ANALOG

LOOP A

ALC-198S SINGLE

LOOP MODULE

Conventional 4-Wire Smoke

Detectors, Heat Sensors

and Manual Pull Stations

Default Chapter2
- Table of Contents2
1 Introduction4
2 Document Conventions6
3 System Components7
4 Mechanical and Chassis Installation15
5 Module Mounting Locations26
6 Display and Adder Modules Mounting Locations28
- FX-2003-6DS/FX-2003-12DS/FX-2003-6DS-16LED Compact Main Chassis28
- FX-2017(S)-12DS MID-Size Main Chassis28
- FX-2009(S)-12DS Large Main Chassis29
- ECX-0012 Expander Chassis for FX-2009-12DS29
7 Module Settings32
- Main Fire Alarm Modules (MD-764 Part of Main Chassis)32
- Main Fire Alarm Super Module (MD-757 Part of "S" Version Main Chassis)33
- RAX-1048TZDS Zone Display Module35
- IPS-2424DS Programmable Input Switches Module35
- Fan Damper Control Display Module (FDX-008W/WKI)36
- DM-1008A Hardwire Detection Adder Module39
- SGM-1004A Hardwire NAC Signal Adder Module40
- RM-1008A Hardwire Relay Adder Module42
- Polarity Reversal and City Tie Module (Model PR-300)43
- UDACT-300A Main Board44
- ALC-H16 Hardwire Loop Controller Module50
8 Field Wiring52
- Main Fire Alarm Module Terminal Connections52
- Analog Loop Wiring54
- NAC Signal Module (SGM-1004A) Terminal Connections61
- UDACT-300A Main Board Terminal Connections64
- Wiring Tables and Information66
9 System Checkout68
10 Indicators and Controls69
11 Operation75
- Single Stage Operation75
- Two Stage Operation76
- Pre-Signal Operation77
- UUKL Feature77
- Output Circuit Delay Operation77
- Circuit Types78
12 Appendix A: Specifications82
13 Appendix B: Compatible Devices88
- FX-2000 Series Compatible Addressable Loop Devices (UL)88
- FX-2000 Series Compatible Two-Wire Smoke Detectors (UL)89
- FX-2000 Series Compatible Four-Wire Smoke Detectors (UL Listed)91
- FX-2000 Series Compatible Signalling Devices (UL Listed)91
- FX-2000 Series Compatible Addressable Loop Devices (ULC)92
- FX-2000 Series Compatible Hardwire Smoke Detectors (ULC)93
- FX-2000 Series Compatible Synchronized Modules and Strobes94
14 Appendix C: Power Supply and Battery Calculations95
15 Appendix D: Remote Annunciator Panels97
16 Appendix E: DIP Switch Settings Summary99
17 Appendix F: Alarm Verification Timing101
18 Appendix G: Wiring for Supervised Output Module102
19 Appendix H: Label Requirements for Zone Identification103
