Mircom FX-2003-6DS - Relay Module (RM-1008(A)) Terminal Connections

59
Field Wiring
8.4 Relay Module (RM-1008(A)) Terminal Connections
Relays are available as shown in Figure 41

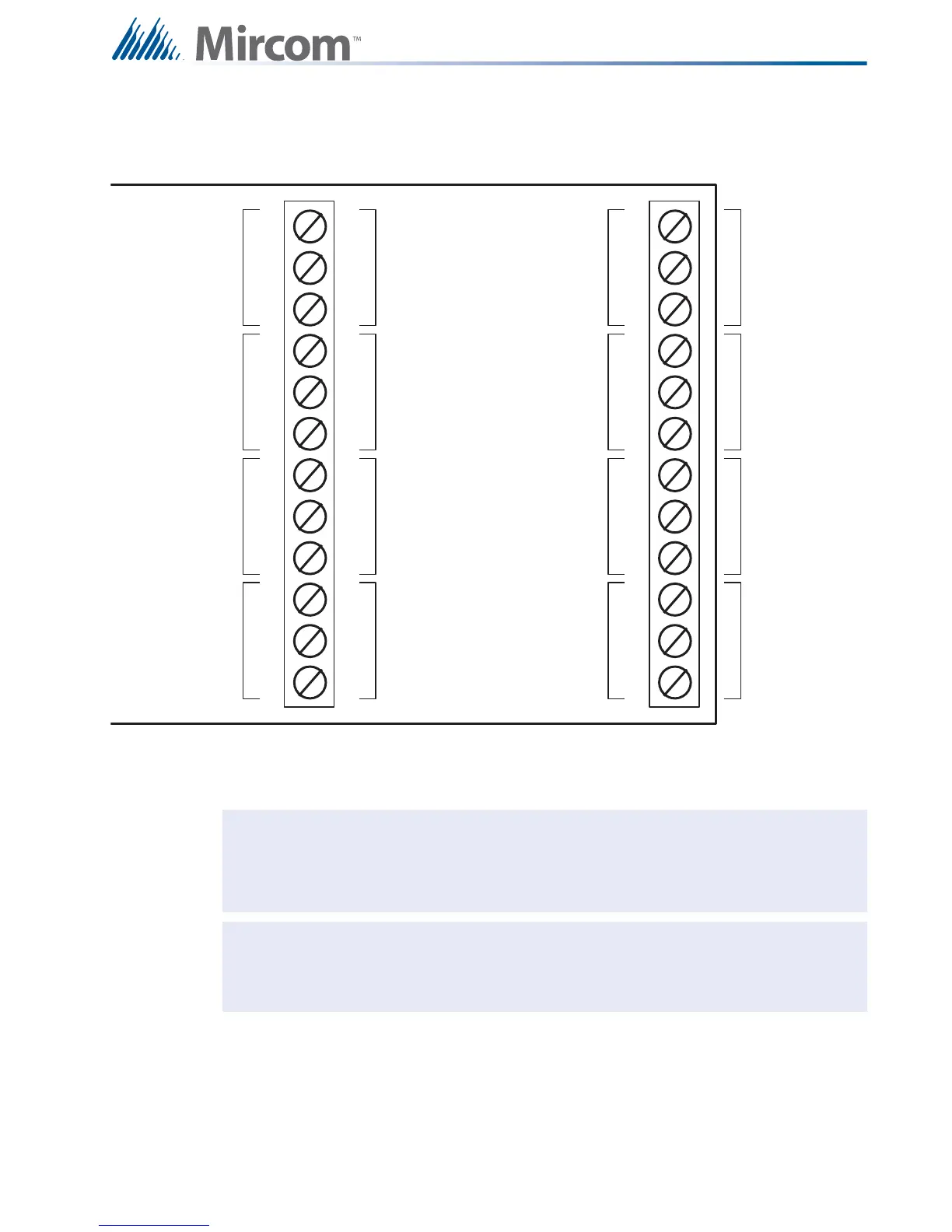

Figure 41 Hardwire Relay Module Terminal Connections
Notes: All relay circuits are power limited and must use type FPL, FPLR, or FPLP power
limited cable.
All relay circuits must be connected to a listed power limited source of supply.
Attention: Do not connect 120 VAC directly to these relays.
RLY 1
AUX RELAY 1
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 2
AUX RELAY 2
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 3
AUX RELAY 3
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 4
AUX RELAY 4
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
COM
RLY 5
NO
NC
AUX RELAY 5
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 6
AUX RELAY 6
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 7
AUX RELAY 7
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
RLY 8
AUX RELAY 8
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
