Page 16
MOUNTING THE THERMOSTAT HEATER KIT MODEL TH-102 IN THE UNIVERSAL
ENCLOSURE (OPTIONAL):

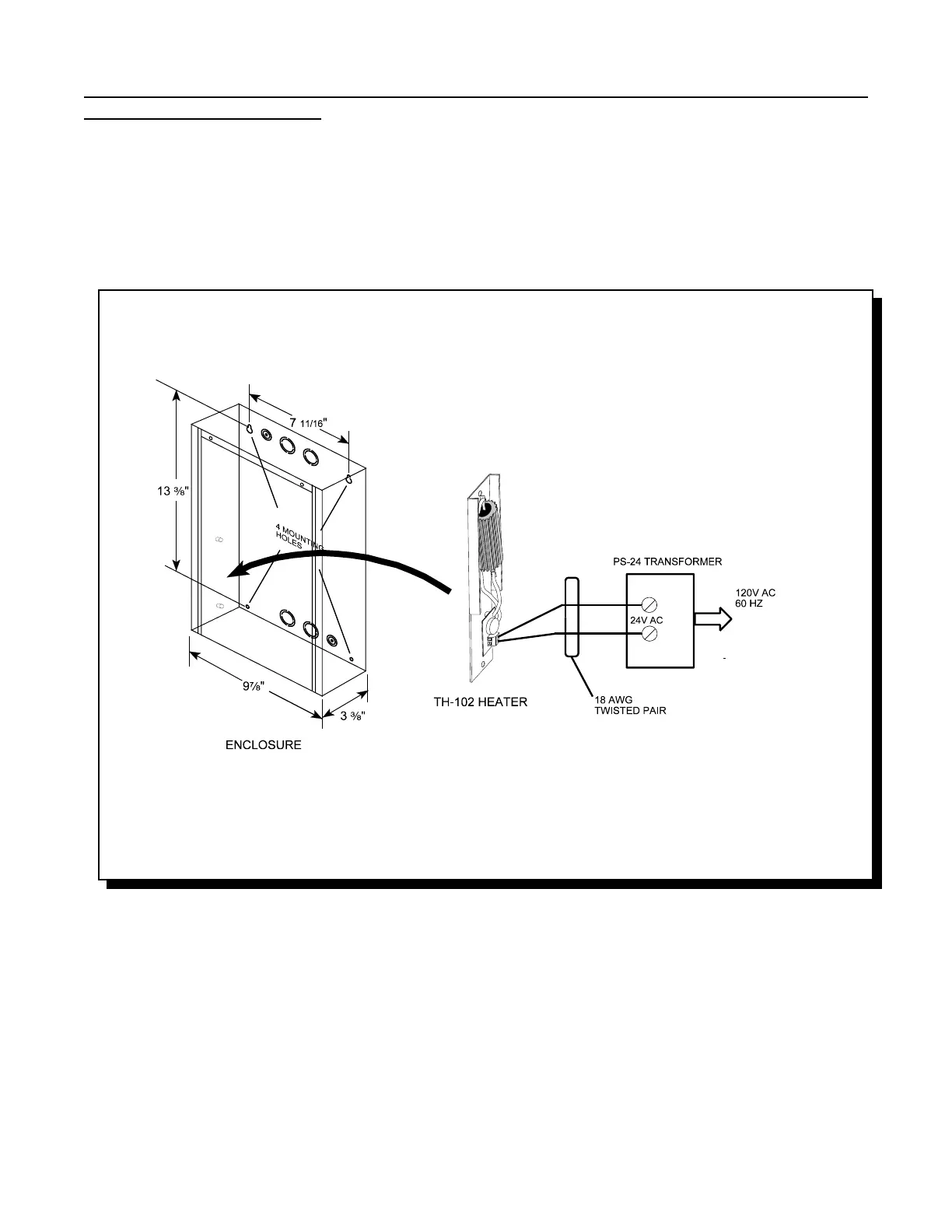

Mount the Heater Kit according to the Figure below. Install the TH-102 Heater into bottom left hand corner of the
universal enclosure using the two spacers and two hex nuts provided. Use a pair of #18 AWG wires to connect from
the TH-102 unit to 24VAC tap on a PS-24 transformer. The transformer must be installed outside the enclosure.
