Page 19

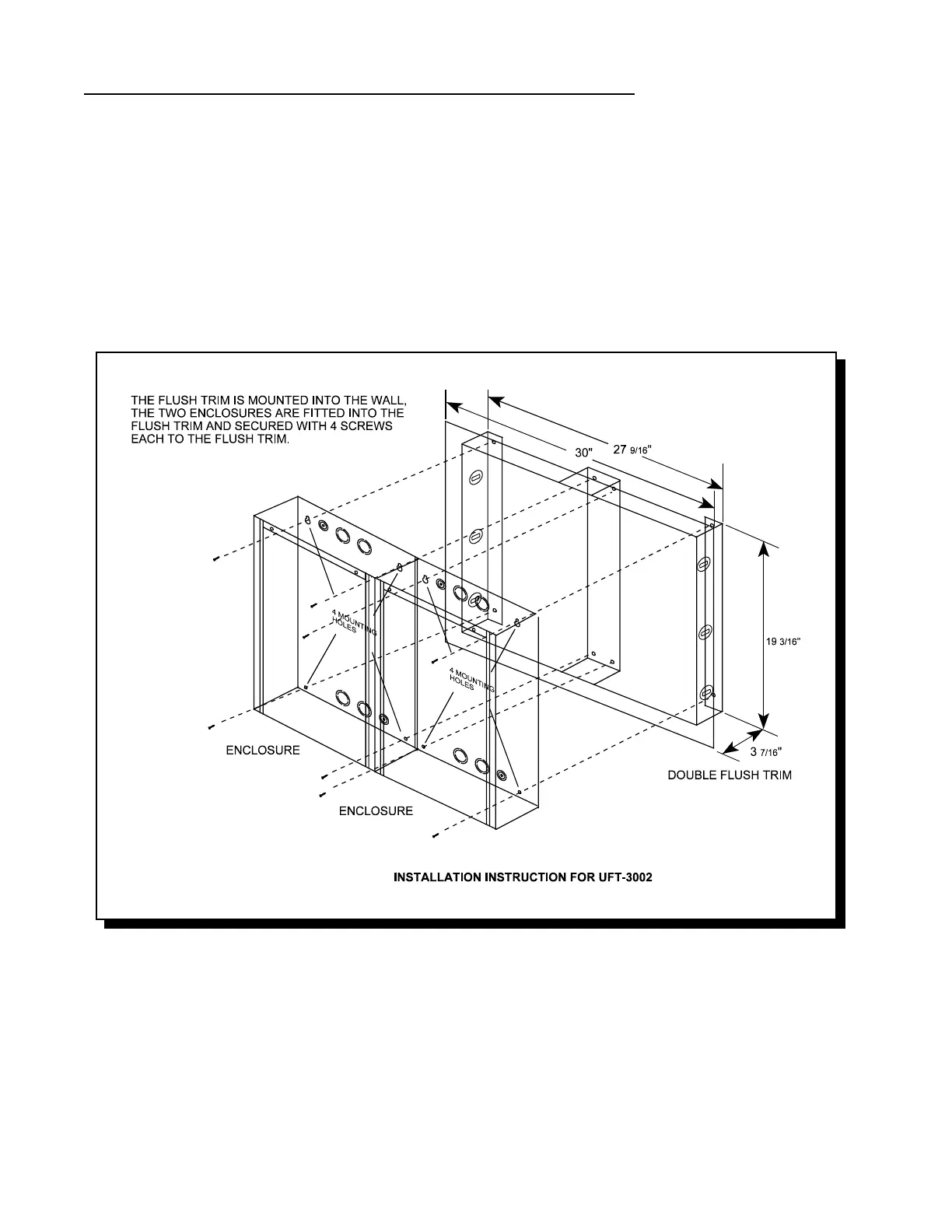

UFT-3002 FLUSH MOUNTING FRAME FOR TWO 3000 UNIVERSAL PANELS
The UFT-3002 Flush Mounting frame allows installation of two 3000 Universal panels (such US-3140, US-3140H and
US-3280)within the frame as shown in the Figure below.
