2008M NSL UNIT WIRING

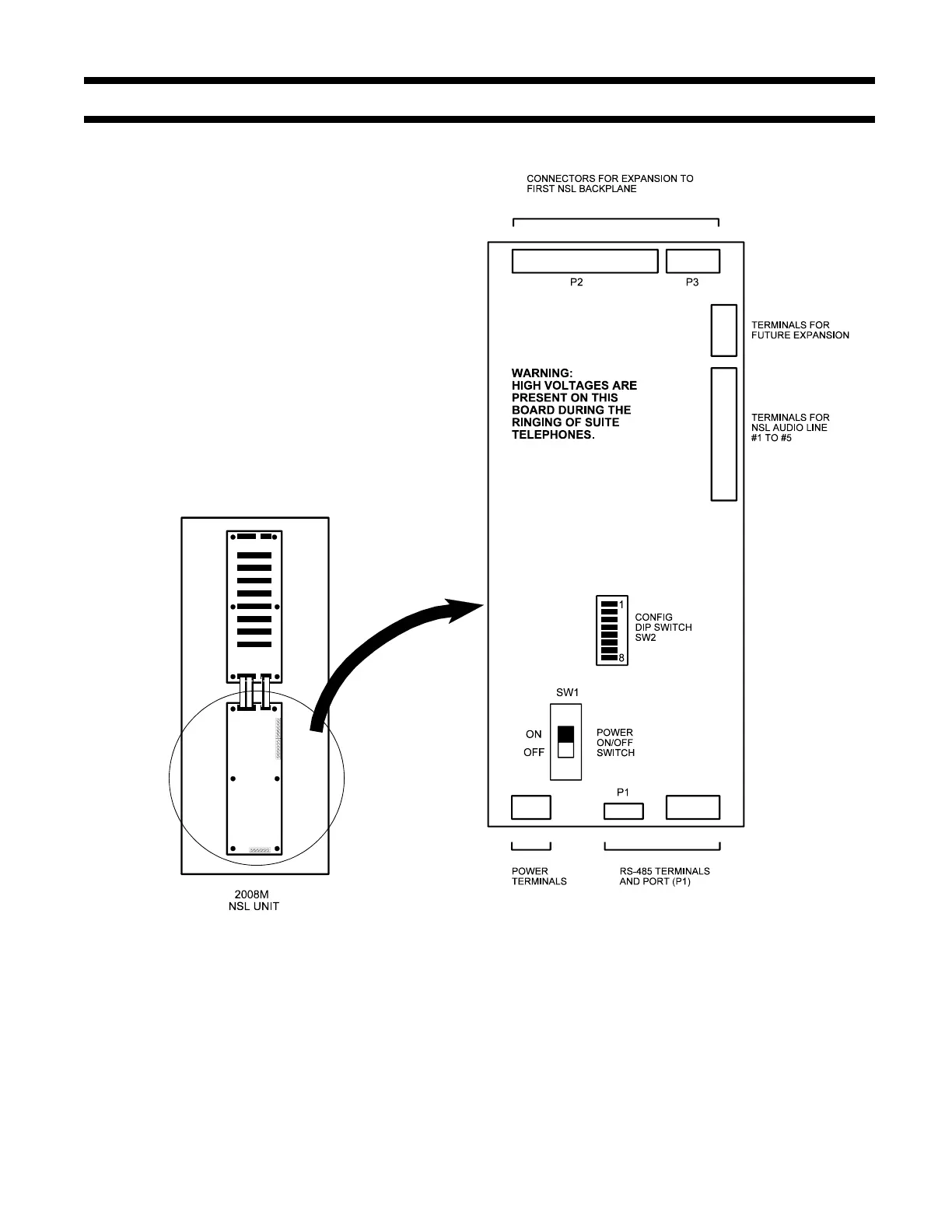

The 2008M NSL Unit Controller Board has both ribbon cable
sockets and screw terminals. The screw terminal connections
are defined more fully in the following pages.
P1 RS-485 Port for connection to an RS-485IMA
Interface Module.
P2 & P3 Expansion to the first NSL Backplane.
SW1 Turns the Unit’s Power on and off for servicing, or to
re-start the unit.
SW2 DIP Switches to set the Unit’ ID.
(see Configuration)
