Page 25

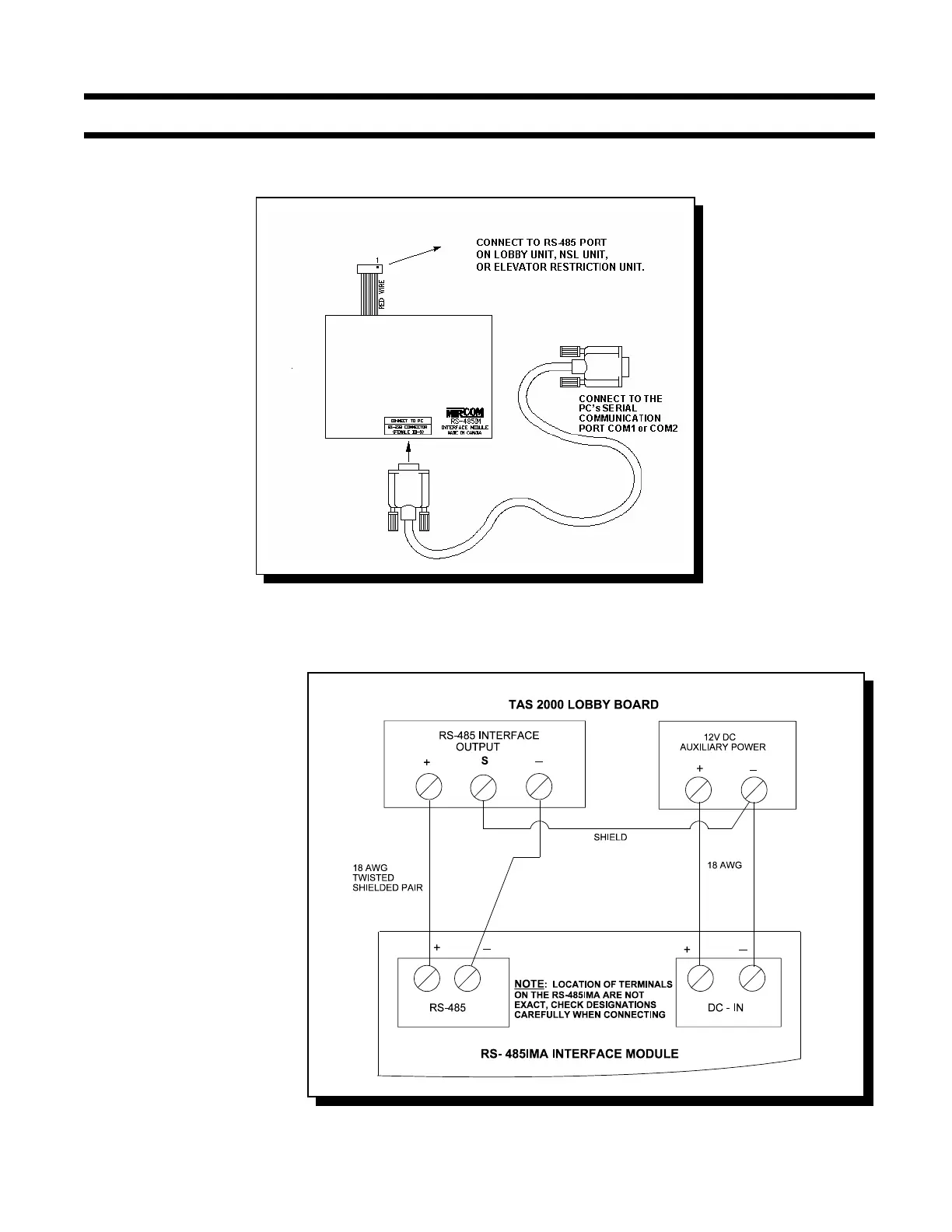

2001 LOBBY UNIT CONFIGURATION VIA A PERSONAL COMPUTER
The easiest way to configure the 2001 Lobby Unit is with the Mircom PC Configuration Software Package. This Windows 95/98 software is
provided on a single CD-ROM. It is connected to the TAS-2000 system via the Mircom RS-485IMA Interface Module ...
Only one RS-485IMA connection is required to any fully networked TAS-2000 System (that is a system where all units are
connected on the same RS-485 Bus).
See the ------ Online Help for
further information.
Should the Lobby panel be
farther away than the ribbon can
reach, the RS-485IMA Interface
module may be hard wired as
shown in this diagram. Please
note the cover must be removed
from the
RS-485IMA in order to reach the
terminals.
