Page 38

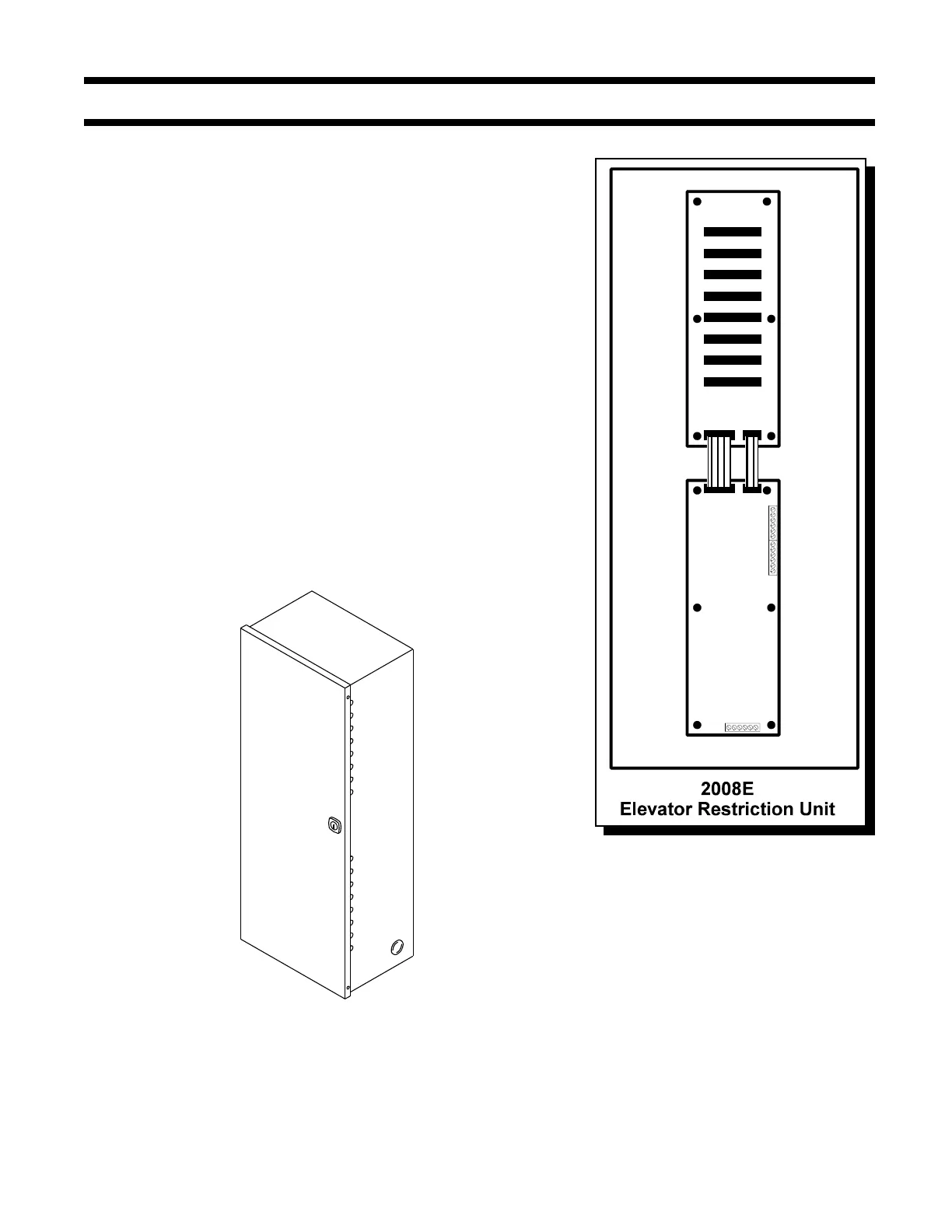

2008E ELEVATOR RESTRICTION UNITS
Elevator Restriction function allows the visitor limited access in the
building. The 2008E Elevator Restriction Unit includes a cabinet for
mounting into an electrical room with the Main Elevator Restriction
Controller Board and the Elevator Backplane. Up to eight 2012E
Elevator Relay Boards may be installed, allowing for 96 Elevator floors
to be accessed in this enclosure.
The 2008E Elevator Restriction Unit performs the following functions ...
Provides time dependent relay contacts which can be used for
either Elevator control or Video control
User selectable timer for relay contacts, settable for each 2008E
Elevator Restriction Unit at each 2001 Lobby Unit.
RS-485 Interface to network to other Units.
Low Power operation from one 24V transformer.
See the NSL & Elevator Unit Enclosure section for mechanical and
mounting information.
