Page 5

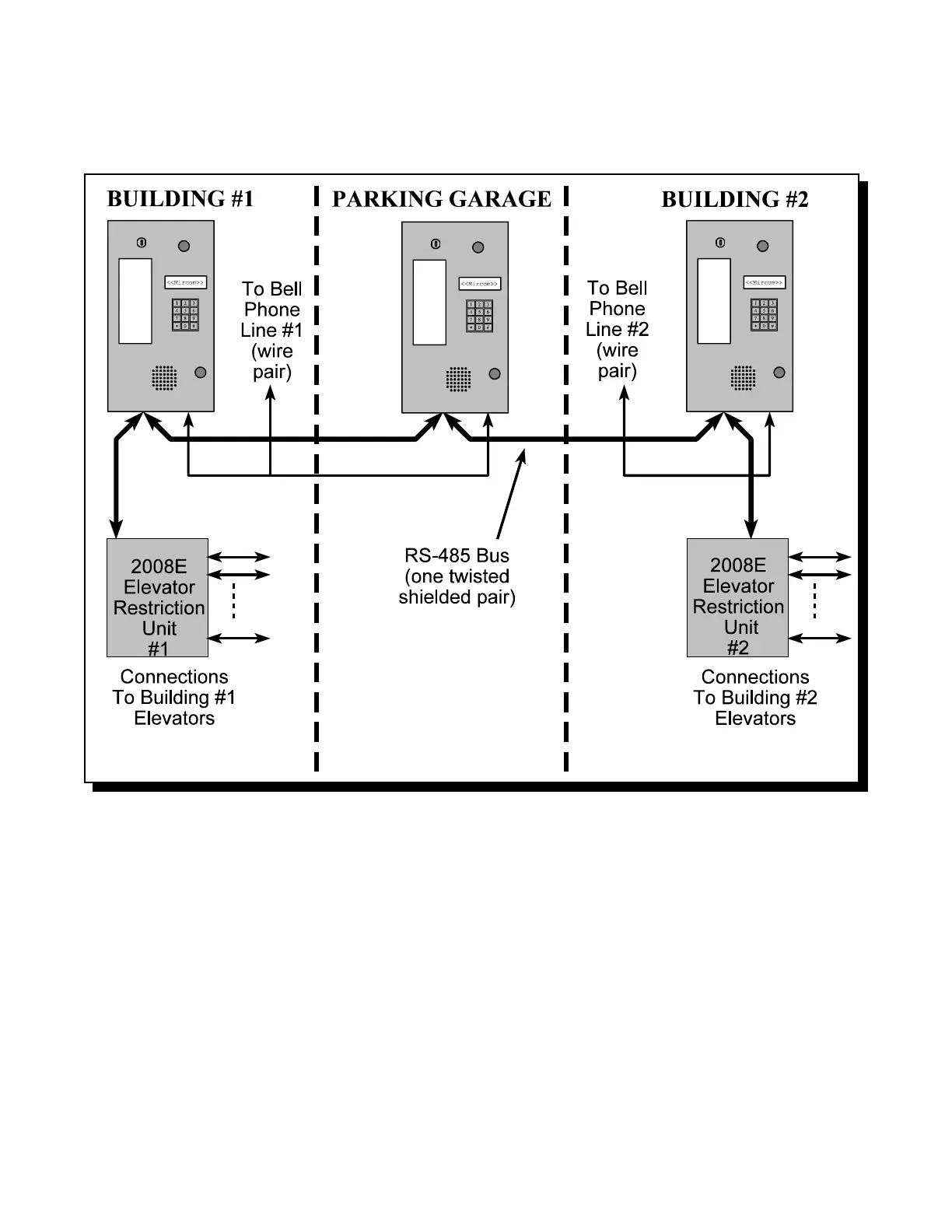

A two building, three Lobby Unit ADC configuration. The Parking Garage and Lobby Unit shares one Bell Phone Line
with Building #1. Each Building has a 2008E Elevator Restriction Unit. All three Lobby Units could share the same
Bell Line, but if one Lobby Unit is used, the other Lobby Units show a system busy and cannot be used until that line
is available again. Also possible is that each Lobby Unit has its own Bell Line.
