Operation Manual Accessories
8-8
Unpack by grabbing the enclosure body not the door handle. Open the door by turning the latch
90
0
in either direction.

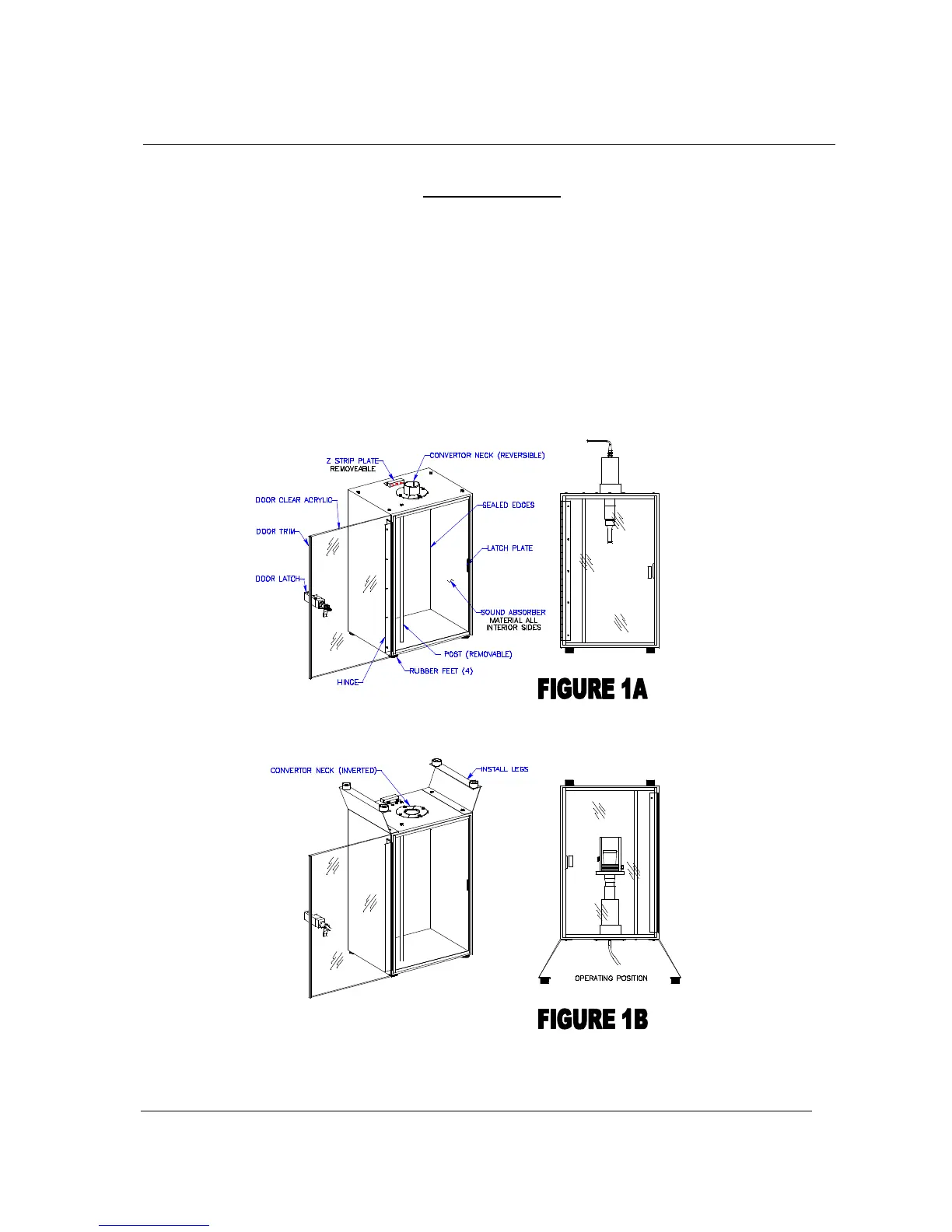

Standard Horn or Microtip assembly: see figure 1A
Remove the four screws from convertor next, invert neck with cylindrical sleeve outward and
reinstall screws.
Cup Horns: see figure 1B
Remove the four screws at corners of box. Place Z-shaped legs on box as shown and replace
screws. If fitting coolant tubing to cup horn, remove two screws from Z-strip, reverse Z-strip to
uncover three holes and replace screws. Pass coolant tubing through holes. Invert Sonabox.
S U P ER S O N AB O X A S S EM B L Y FO R S T AN D A R D H O R N S
S U P ER S O N AB O X A S S E M B L Y F O R C U P H O R N U S E
