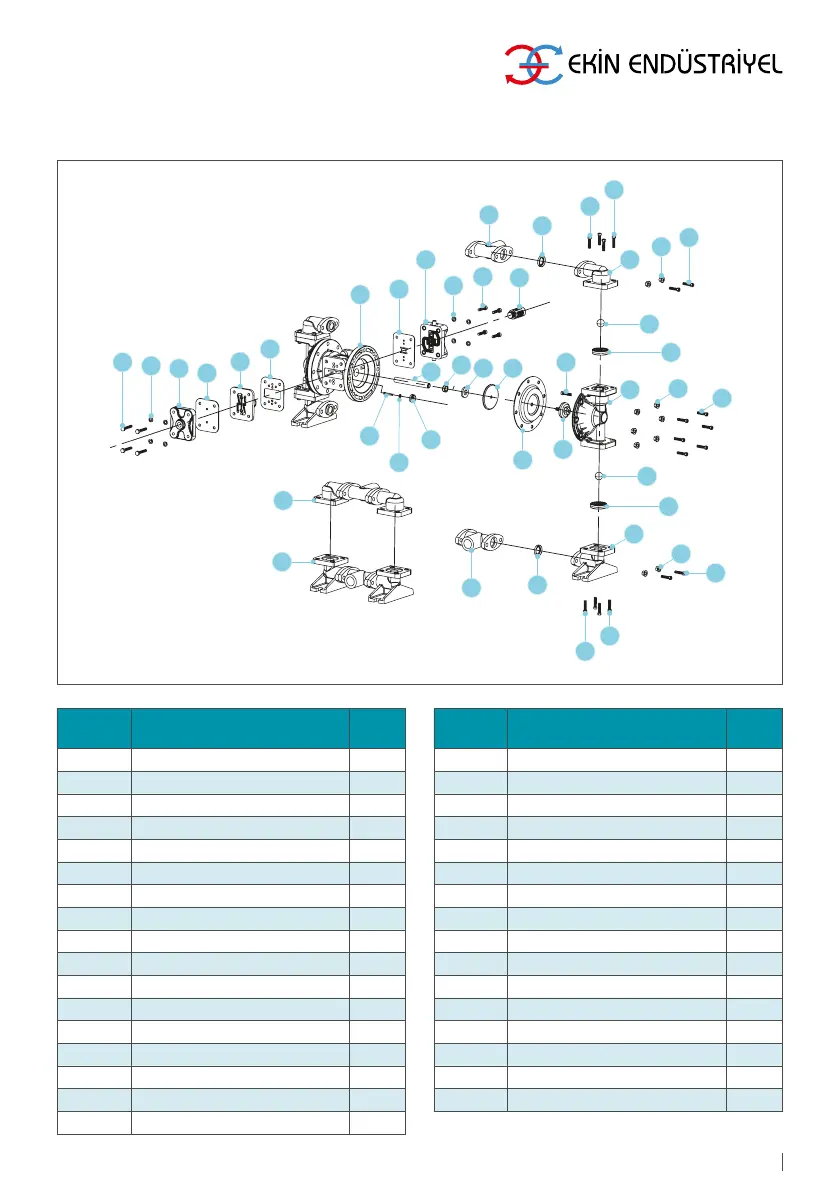

Spare Part Drawing (Metal)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 8
3 Main Body 1
4 Chamber Outhor 2
5 Ball, Check 4
6 Ball Seat 4
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plumber 2
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
Item No Desctription Piece
14 Gasket, Intermediate Bracket 1
15 Gasket, Valve Body 1
16 O-Rings, For Pin 1
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23 Capscrew M8x35 12
24 Capscrew M8x30 16
25 Capscrew M8x25 12
26
Capscrew Soc Head M6x35 Stainless
4
27 Capscrew M6x35 Stainless 4
28 Nut Hex Flange M6 20
29 Washer M6 Stainless 8
