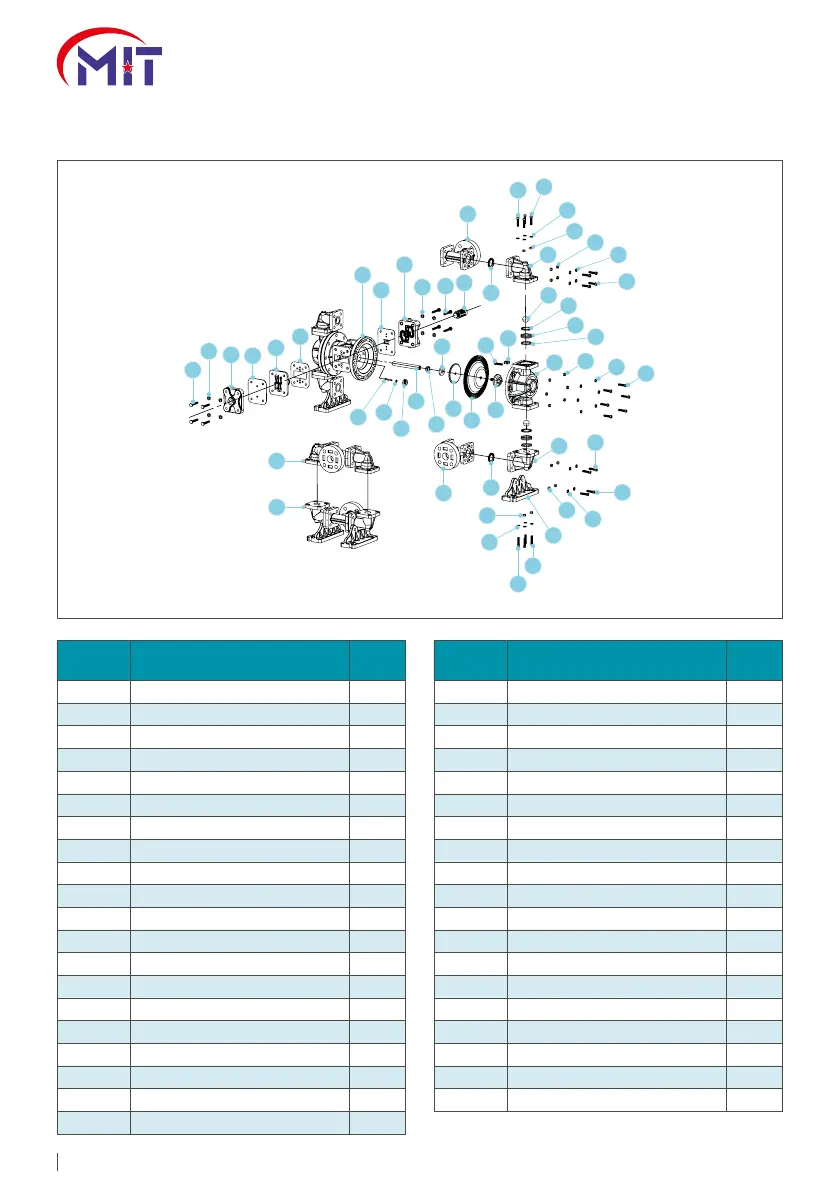

Spare Part Drawing (Plastic)
Item No Desctription Piece
1 Suction Line 1
1A Elbow, Suction 2
1B Bracket, Mounting 2
2 Discharge Line 1
2A Elbow, Discharge 2
2B Manifold 2
2C Seal, Manifold 8
3 Main Body 1
4 Chamber Outhor 2
5 Ball, Check 4
6 Ball Seat 4
6A Gasket, Ball Seat 8
7 Diaphragm 2
8 Air Valve Kit 1
9 Pilot Valve Kit 1
10 Bumper 2
11 Bushing, Plunger 2
12 Cap, Air Inlet 1
13 Gasket, Air Discharge 1
14 Gasket, Intermediate Bracket 1
Item No Desctription Piece
15 Gasket, Valve Body 1
16 O-Ring, For Pin 1
17 Plate, Inner Diaphragm 2
18 Plate, Outher Diaphragm 2
19 Plunger, Actuator 2
20 Srod, Diaphragm 1
21 Oil Seal 2
22 Mufer 1
23 Washer M8 Stainless 100
24 Capscrew M8x30 Stainless 8
25 Capscrew M8x25 Stainless 4
26 Wasyer M6 Stainless 8
27 Capscrew M8x40 Stainless 16
28 Square Washer M6 Stainless 8
29 Nut Hex Fiber M6 Stainless 20
30 Nut Hex M8 Stainless 16
31 Capscrew M8x35 Stainless 16
32
Capscrew Soc Head M6x35 Stainless
4
33 Capscrew M6x35 Stainless 4
