3. Definition & Location Of Connectors / Switches

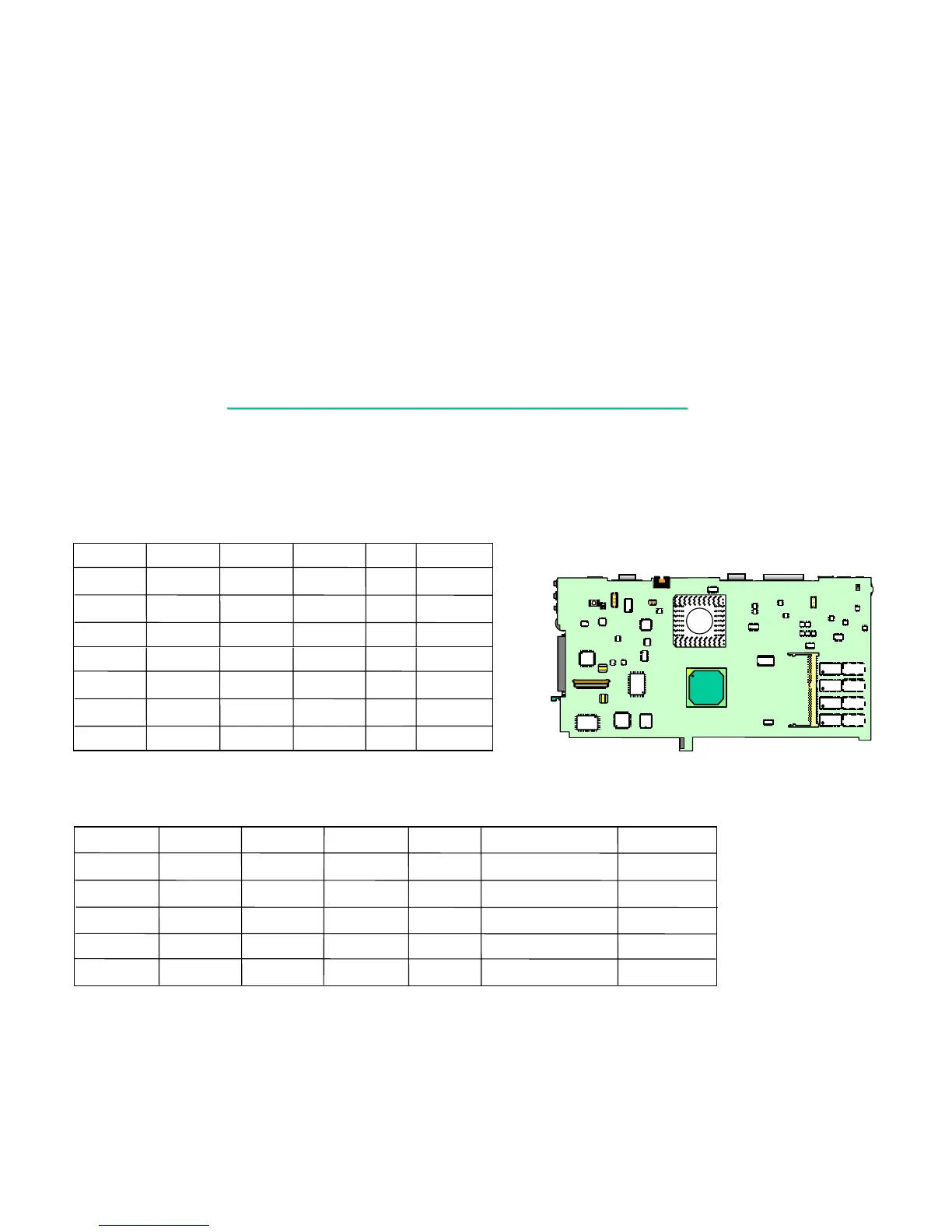

3.2 Mother Board Switch Table
SW3. CPU & SDRAM Frequency setting table:
SW_FS3 SW_FS2 SW_FS1 SW_FS0 CPU SDRAM
0 0 0 0 66 100
0 0 0 1 100 100
0 0 1 1 133 100
0 1 0 0 66 133
0 1 0 1 100 133
0 1 1 1 133 133
1 0 0 0 66 66
SW2
SW1
SW3
SW4
SW4. LCD Panel ID Select
LCD_SW4 LCD_SW3 LCD_SW2 LCD_SW1 Vendor PANEL Description
0 0 0 0 HannStar HSD141PX11 14.1”
0 0 0 1 Unipac UP141X01-2 14.1”
0 0 1 0 Hyundai 14X13-101 14.1”
1 0 0 0 Hyundai HT15X31 15”
1 0 0 1 Hitachi TX38D85VC1CAA 15”
