3. Definition & Location Of Connectors / Switches

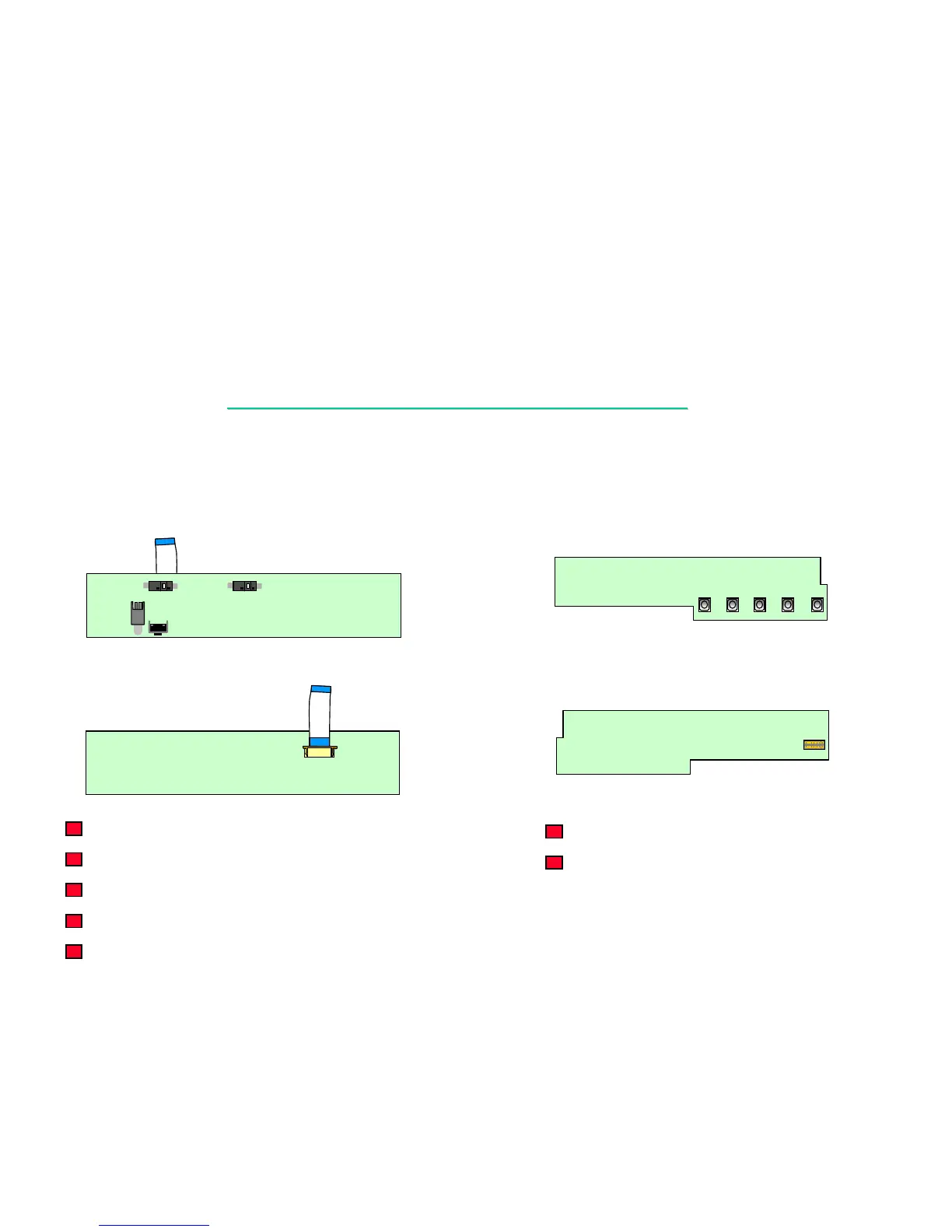

3.6 IQSB Board 3.7 Easy Start Button Board
Easy Start Button Board(side A)IQSB board(side A)
SW1 SW2
D8
SW3
SW3SW2SW1 SW4 SW5
Easy Start Button Board
(side B)
J500
IQSB board(side B)
J501
SW1: Touch Pad Left Key.
SW2: Touch Pad Left Key.
SW3: E-Mail Function key.
D8: E-Mail Indicator LED.
J500: IQSB Board to MB J515 Touch-Pad Button Connector.
J501: Easy Start Button Board to MB Connector .
SW1,SW2,SW3,SW4,SW5,SW6:
Programmable Easy Start Button function key.
