MiTAC 7521 PLUS/N - Daughter Board

78
7521
7521
Plus / N N/B MAINTENANCE
Plus / N N/B MAINTENANCE

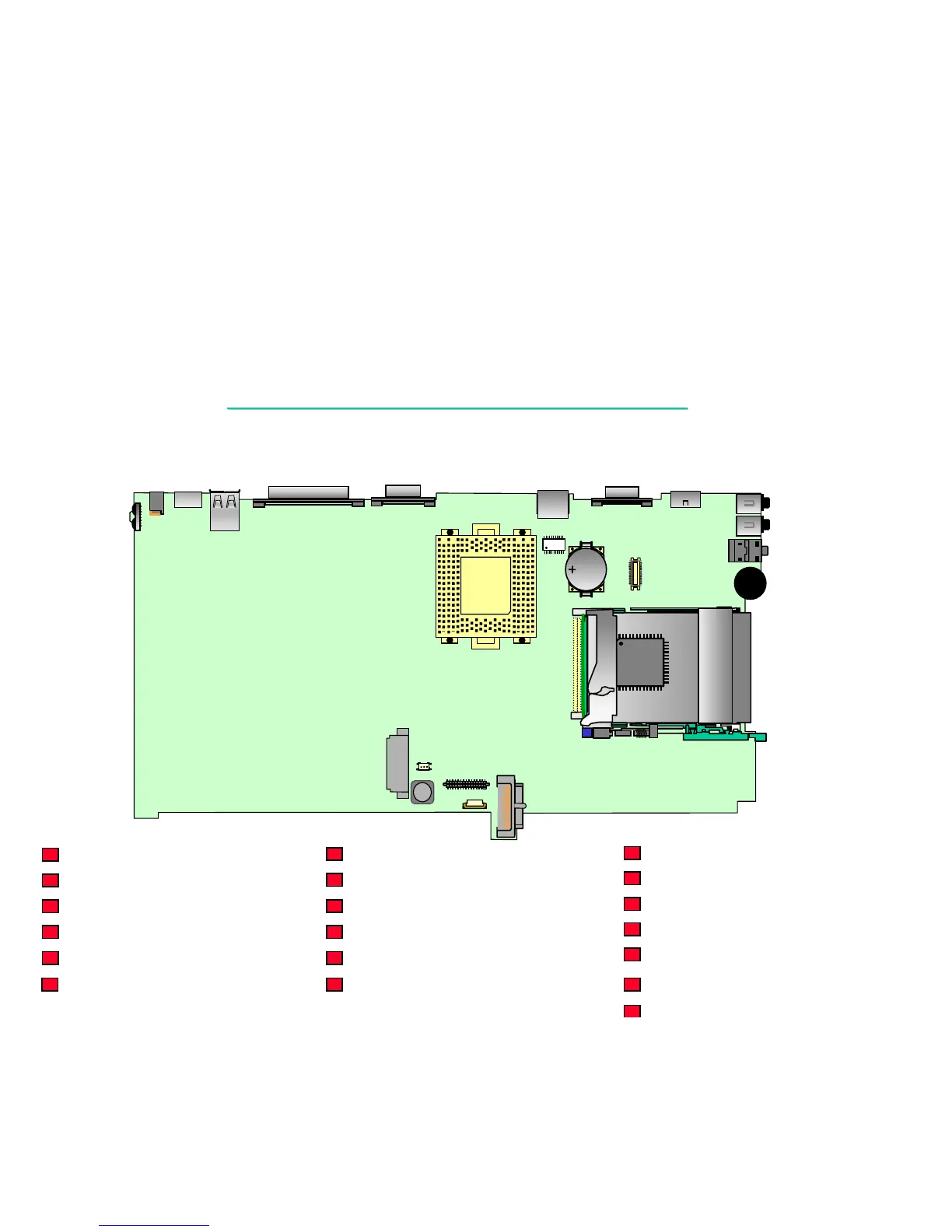

3. Definition & Location Of Connectors / Switches
3.3 Mother Board-B
U501
PJ501
J502
J508
J505
J507
J504
J506
J503
J509
J510
VR501
J506
J516
J513
J512
J514
J515
BT501
J511
U502
U503
J501
PJ501: Power jack ( AC adapter).
J502 : PS2 Mouse/keyboard.
J503: Line in Jack.
J504: RJ45 LAN connect.
J505: Parallel Port.
J506: PCMCIA card socket.
J507: VGA Connector.
J508: USB connector.
J509: Phone Jack Connector.
J510: Line Out with APDIF.
J511: MDC MODEM transfer BD connector.
J513: CPU
FAN Connector.
J516 :HDD/FDD Connector.
J512: CD-ROM drive connector.
J514: Charger & Touch-Pad connector.
J515: Touch-Pad button connector.
BT501: CMOS Battery connector.
VR501: Volume control VR.
U503: FC-PGA Socket 370 CPU Slot.
