Plus / N N/B MAINTENANCE
Plus / N N/B MAINTENANCE
3. Definition & Location Of Connectors / Switches

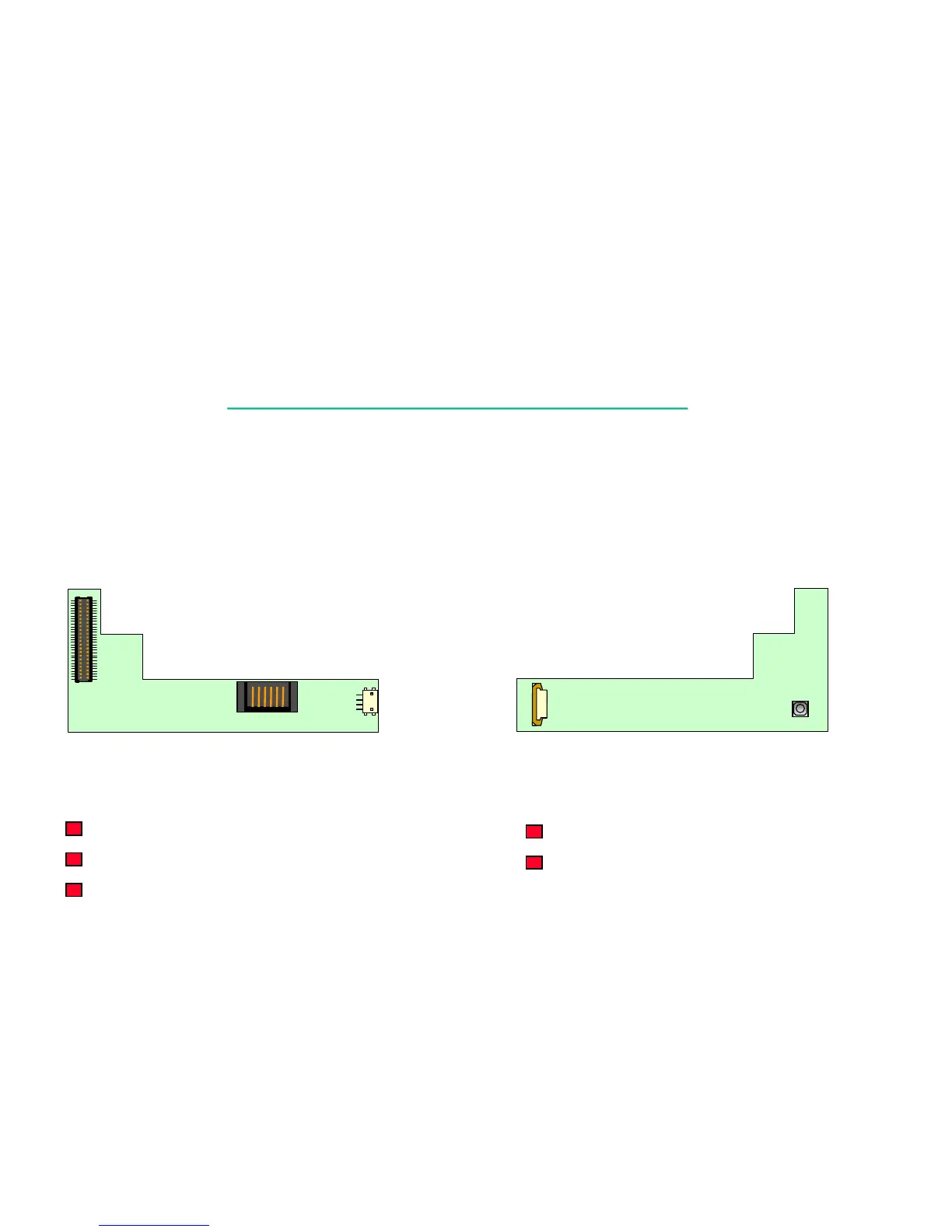

3.5 Charger Board
Charge board(side B)
J500
SW500
Charge board(side A)
J1
PJ4
J2
J1:Charger & Touch-Pad connector to M/B.
PJ4:Battery pack connector.
J2: Internal speaker connector.
J500: Touch-Pad button connector.
SW500: CMOS Reset
