MITECH MICRO 8 - Transmitter Board (TX)

MICRO 8
Installation and user manual
Page 12 of 24

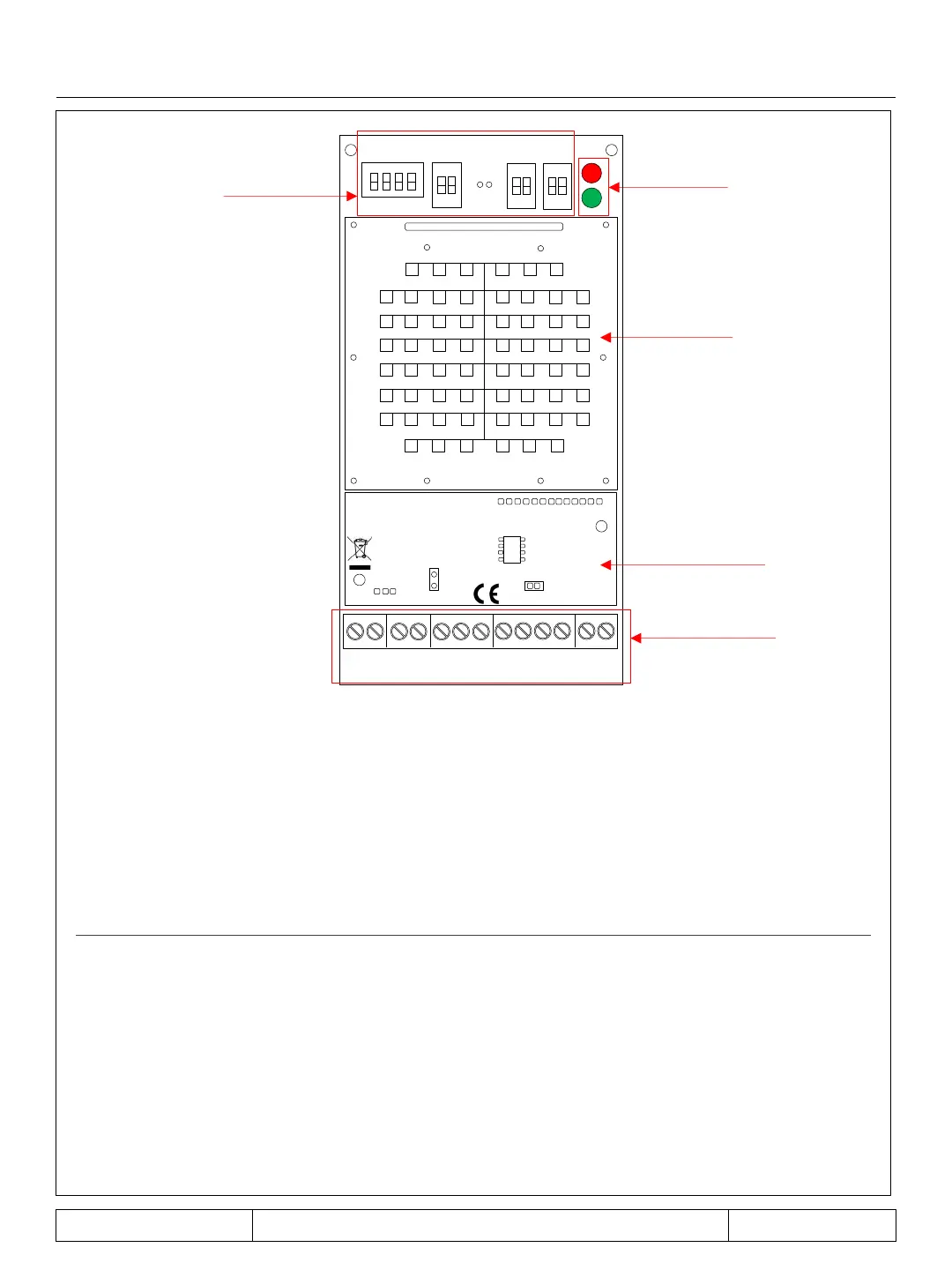

Transmitter
board (TX)
LED
TX ANTENNA
FREQ
0
ON
1 2
0
ON
1 2
SENS
LEVEL
SENS
TIME
ABS
CNF
S/A
LED
ON
TAMPER
IN
TAMPER
OUT
0 A B
RS485
GND VIN
ALARM WARN
0
ON
1 2
Dip
-switch description:
FREQ:
frequency setting
SENS LEVEL:
attenuation of the 4 dB transmission level
ABS:
not used
CNF:
activation of configuration mode
S/A:
activation of the RS485 module for software management
LED:
led activation
Terminal
board description:
TAMPER IN:
tamper input
TAMPER OUT:
tamper output
0 A B:
RS485
ALARM:
fault output
WARN:
not used
GND
: 0 V
VIN:
+12 Vdc
TERMINAL BLOCK
DIP SWITCH
MODULE RS485
TERM
BUZZER
