Installing
Release 3.3 121

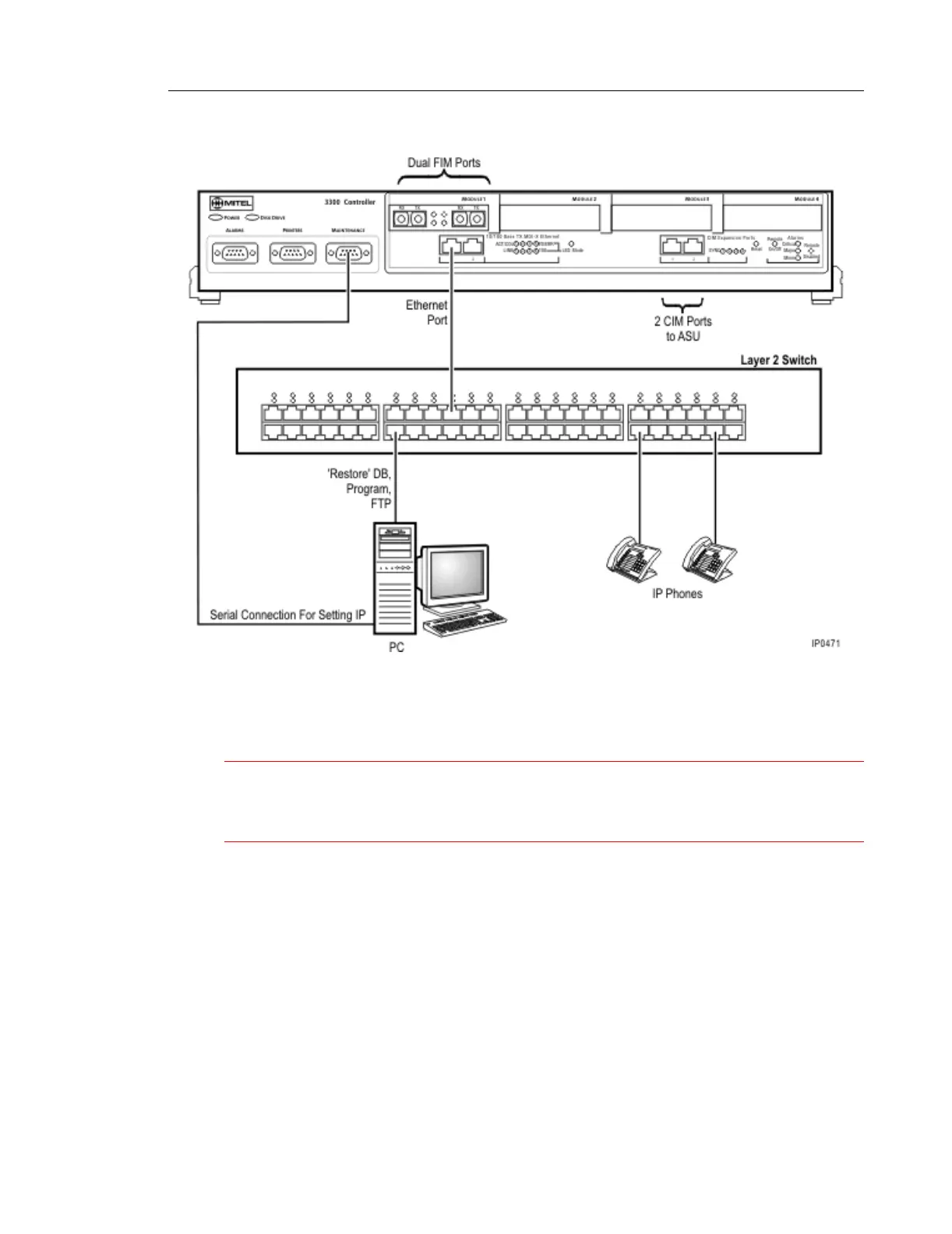

100 User Controller
Install the Hard Drive
CAUTION: To prevent ESD damage while handling modules on any unit, always attach
the wrist strap from the cabinet being serviced, and immediately place any item removed
from a cabinet into an anti-static bag.
1. Remove the plate located underneath the controller (this will involve removing the 6 border
screws).
2. Attach the Hard Drive securely to the plate using the four screws provided.
3. Attach the power cable.
4. Attach the SCSI cable.
5. Carefully insert the Hard Drive into the controller.
6. Secure the plate onto the chassis with the 6 border screws.
