3300 Analog Services Units
Mitel Networks™ 3300 Universal ASU Components

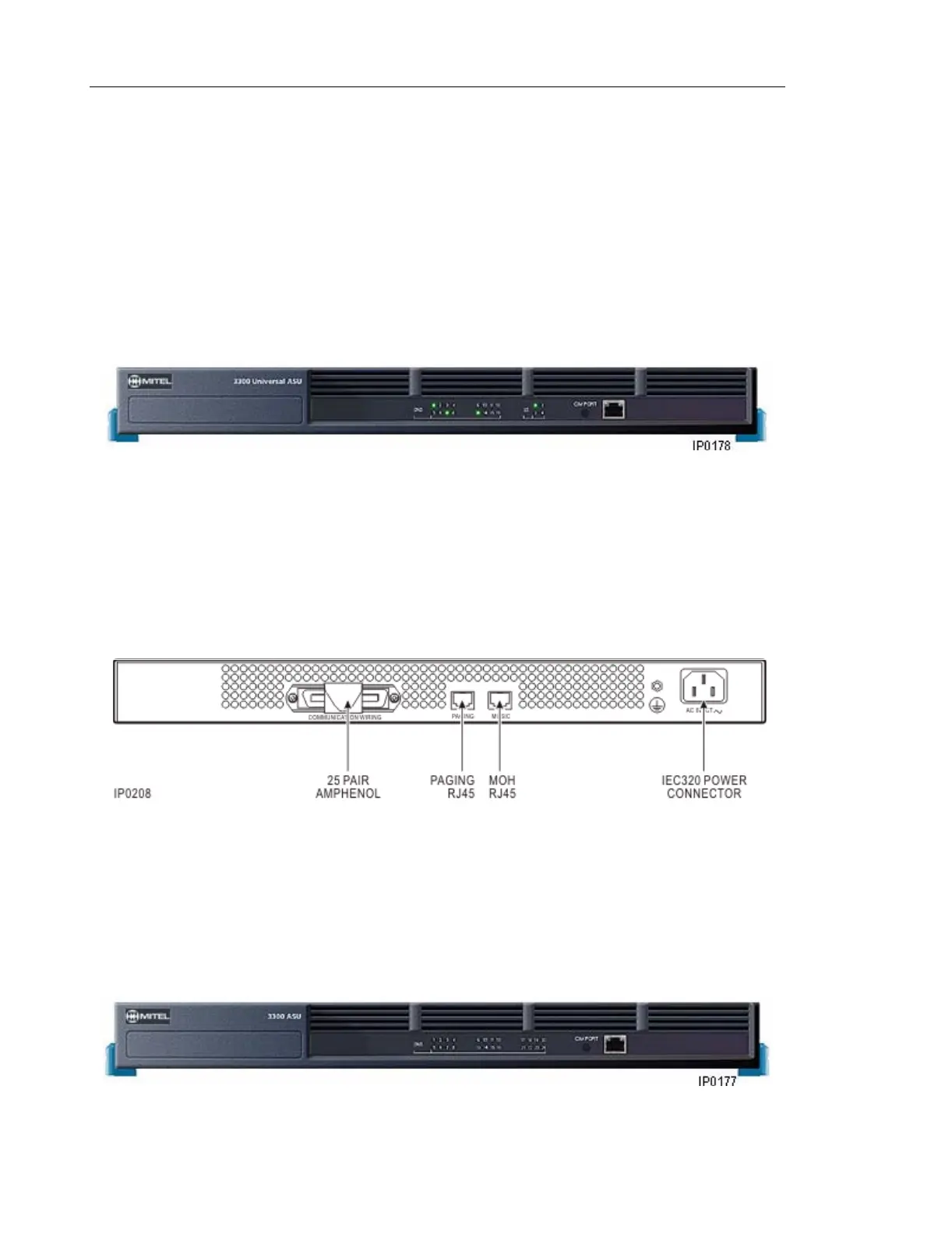

Front Panel
• 16 ONS LEDs showing circuit status
• 4 LS trunk LEDs showing circuit status
• 1 CIM Status LED
• RJ-45 connector (CIM connection to the 3300 Controller).
Rear Panel
• D-type 25 pair connector providing connectivity to the LS and ONS Tip/Ring or A/B circuits
• 8 pin modular jack (RJ-45) for 2 Paging ports
• 8 pin modular jack (RJ-45) for 4 Music on Hold ports (only one MOH port is supported
through software on the system)
• Standard Male IEC 320 AC power connector.
Mitel Networks™ 3300 ASU Components
Front Panel
• 24 ONS Circuit LEDs indicate the status of the telephone circuits
• 1 CIM circuit LED indicates the status of the CIM link
• RJ-45 connector (CIM connection to the 3300 Controller).
