18
EX Controller Installation Guide
ENDPOINT PINOUT

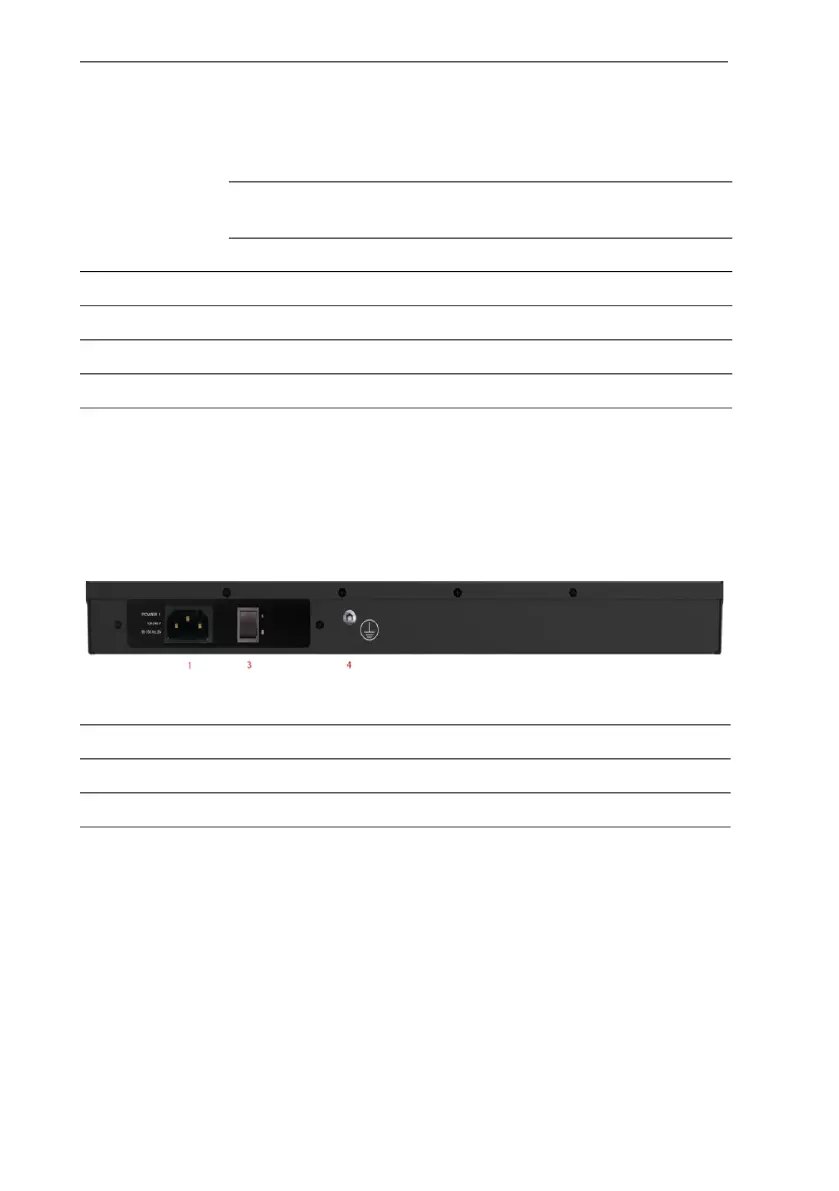

POWER AND GROUNDING
RJ-48
CONNECTOR
PIN
NT/TE SETTINGS
EX CONTROLLER
OTHER MIVBCONTROLLERS
(MXE II, CXI II)
NT MODE TE MODE NT MODE TE MODE
1 TX + RX - RX Ring TX Ring
2 TX - RX + RX Tip RX Tip
4 RX + TX + TX Ring TX Ring
5 RX - RX - RX Tip TX Tip
Note: The above table provides a comparison of the Endpoint Type settings of
EX Controller and other MIVB controllers. The Auto port pinout option sets the
pinout according to the value configured for the Endpoint Type. For more
information, see https://documentation.media5corp.com/.
# DESCRIPTION
1 POWER 1 connector
2 POWER 2 connector
3 Power switch
4 Grounding screw
