8. AUXILIARY AND APPLIED FUNCTIONS
8 − 2
8.1 Limit Switch Output Function
The limit switch output function allows the A1SY42 output module or AY42 output
module to output ON/OFF signals corresponding to the positioning address set for
each axis.
8.1.1 Limit switch output data
Item Settings
Initial
Value
Comments
ON/OFF point
setting
• −2147483648 to 2147483647
(× 10
−
1
µ
m,× 10
−
5
inch, PULSE)
• 0 to 35999999
( 10
−
5
degree)
Units
× 10
−
1
µ
m
× 10
−
5
inch
10
−
5
degree
PLS
0
• Up to 10 points can
be set for each
axis.

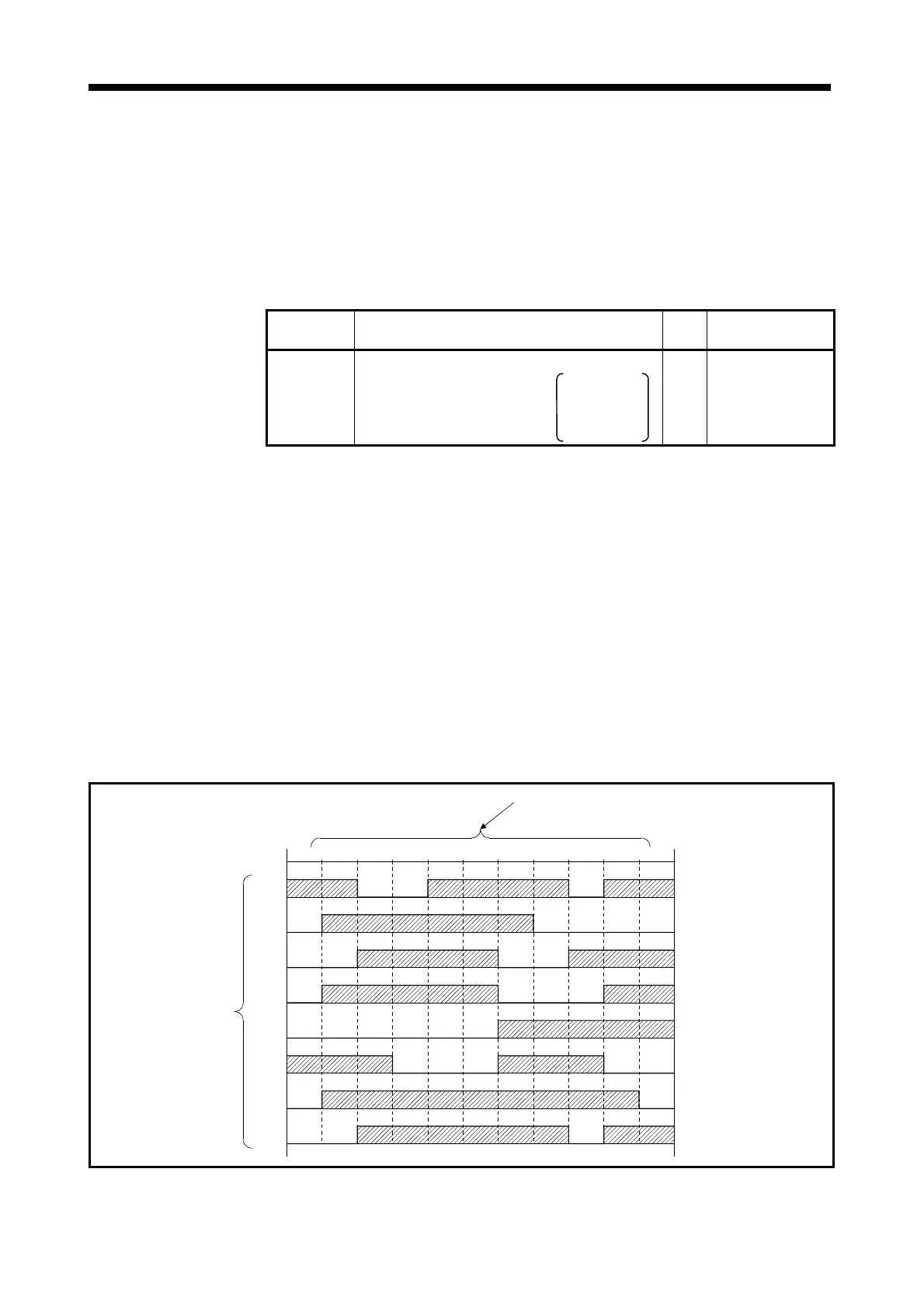

8.1.2 Limit switch output function
[Control Details]
(1) The limit switch function outputs the ON/OFF pattern from the A1SY42/ AY42
at the set addresses.
Before running the limit switch output function, the ON/OFF point addresses
and the ON/OFF pattern must be set from a peripheral device.
(Settings cannot be made by the sequence program.)
The number of limit switch outputs per axis and the ON/OFF points are as
follows:
(a) Number of limit switch output points .............8 points/axis,
total 256 points
(b) ON/OFF points...............................................10 points/axis
Set an address in the stroke limit
range for each point.
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
ON
ON
12345678910
MIN MAX
Point 1
8 points
/axis
ON/OFF switching points 10 points/axis
.
(Common for Point 1 through Point 8)
Point 2
Point 3
Point 4
Point 5
Point 6
Point 7
Point 8
ON
