8. AUXILIARY AND APPLIED FUNCTIONS
8 − 11
The relationship between the commanded speed (positioning speed set in the
servo program) and actual speed (actual positioning speed) is shown below for
different electronic gear settings.
• if electronic gear setting = 1, commanded speed = actual speed
• if electronic gear setting < 1, commanded speed < actual speed
• if electronic gear setting > 1, commanded speed > actual speed
1) electronic gear setting = 1
2) electronic gear setting < 1
3) electronic gear setting > 1
V
t
A
ctual
acceleration
time
Actual
deceleration
time
Set acceleration time
Commanded
speed
Speed limit
value
1)
2)
3)
The speed limit value, acceleration time, and deceleration time are data from the designated parameter block.
Set deceleration time

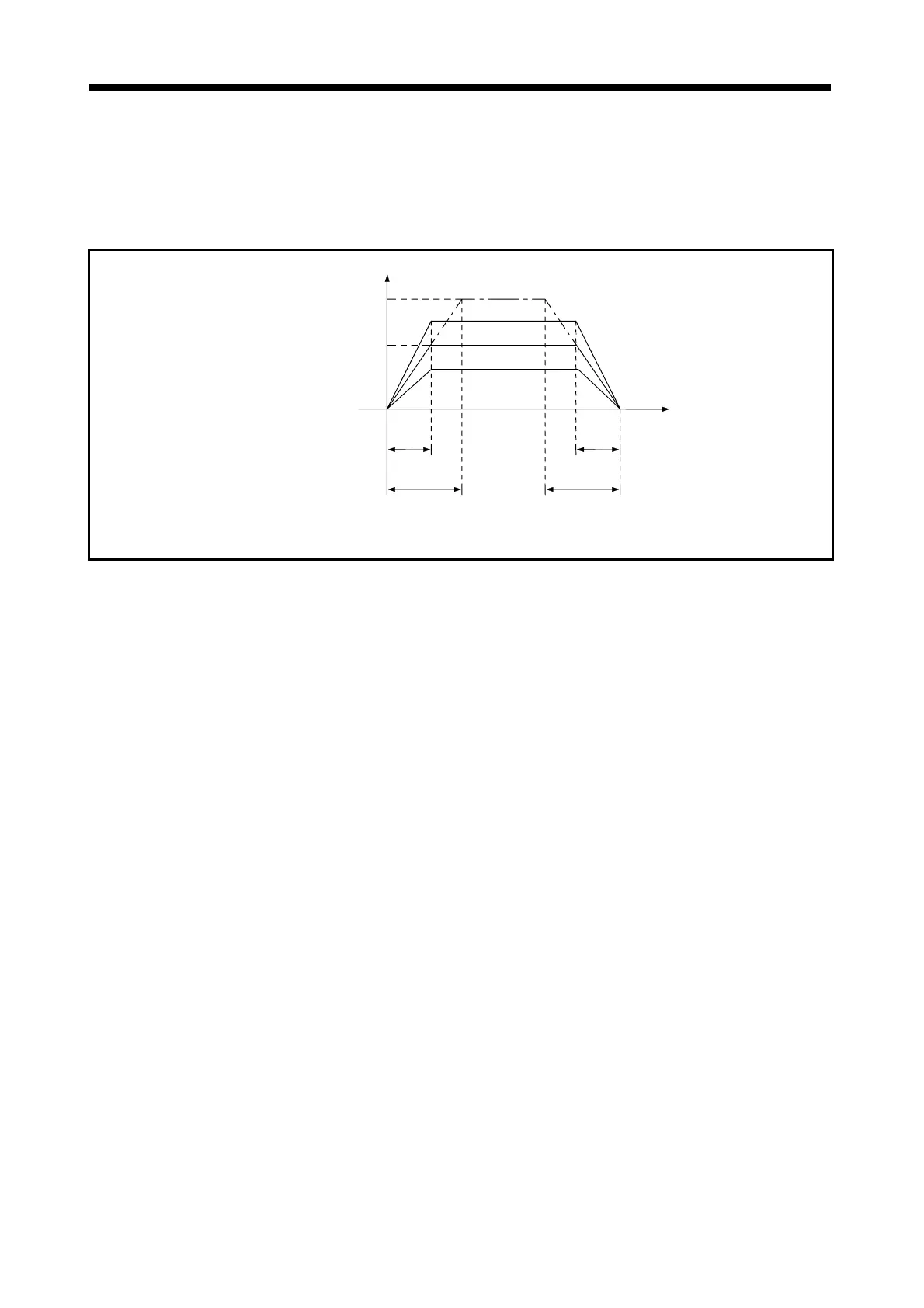

Fig.8.2 Relationship Between Commanded Speed and Actual Speed
