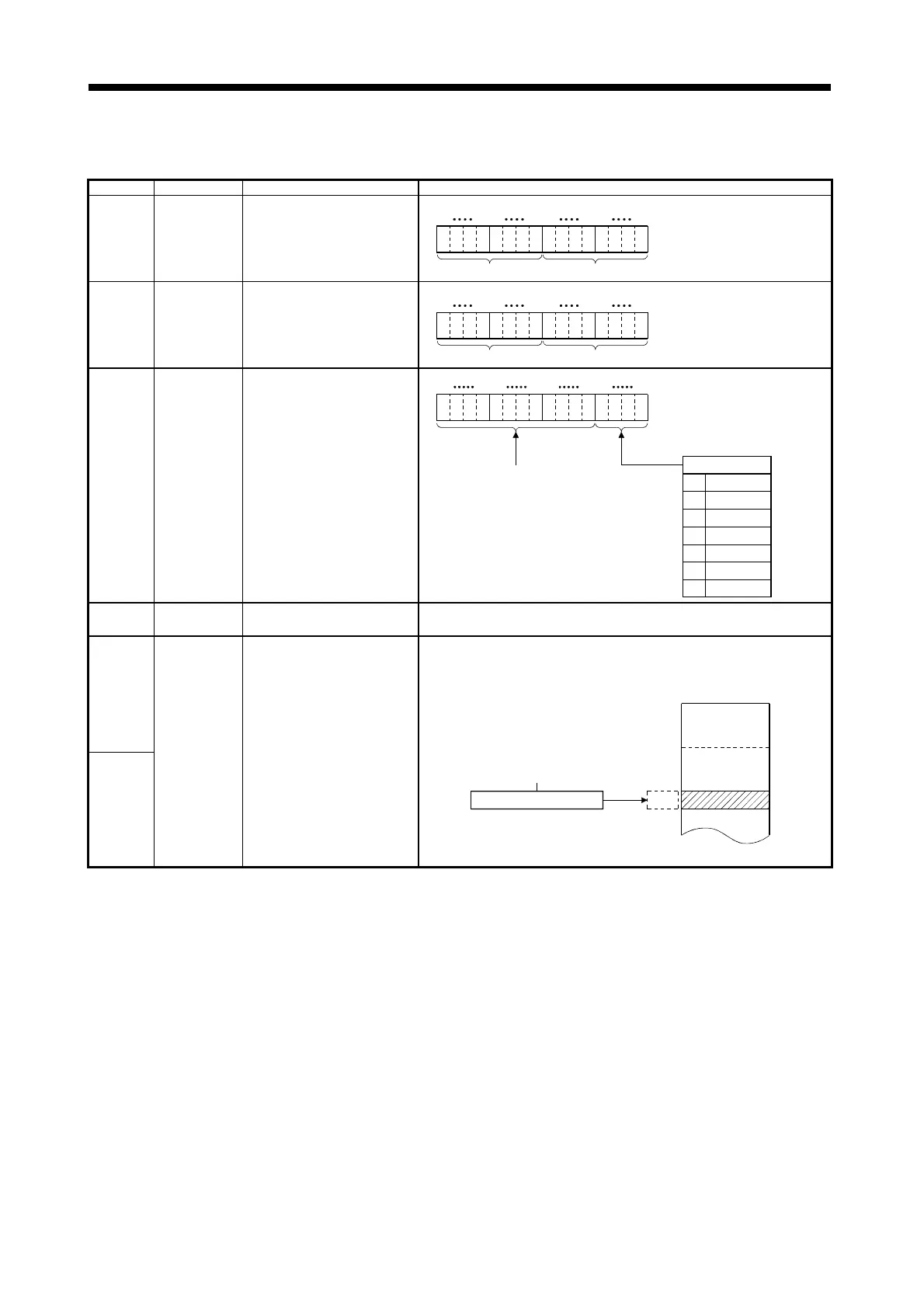

Table 3.2 Special Register List (Continued)
Number Name Stored Data Explanation
D9026
(Note-2)
Clock data
Clock data
(day, hour)
!
The day and hour are stored in BCD code in D9026 as shown below.
B15 B12B11 B8B7 B4B3 B0
HourDa
Example
: 31st, 10th hour
H3110
D9027
(Note-2)
Clock data
Clock data
(minute, second)
! The minute and second are stored in BCD code in D9027 as shown below.
B15 B12B11 B8B7 B4B3 B0
SecondMinute
Example
: 35ms, 48s
H3548
D9028
(Note-2)
Clock data
Clock data
(0, day of week)
!
The day of week is stored in BCD code in D9028 as shown below.
B15 B12B11 B8B7 B4B3 B0
Example
: Friday
H0005
"0" must be set here.
0
1
2
3
4
5
6
Day of week
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
D9035
Extended file
register
Used block No.
!
The block No. of the extended file registers in current use is stored in BIN.
D9036
D9037
For specifying
extended file
register device
number
Device number for direct access to
any device of extended file register
!
Using a BIN value, specify in two words of D9036 and D9037 the device number
of the extended file register to be accessed directly. Specify any of the consecutive
device numbers starting at R0 in block No. 1, regardless of the block No.
0
16383
16384
D9037 D9036
to
to
to
Device No. (BIN value)
Block No. 2 area
Block No. 1 area
Extended file registers
