Wiring the FL-net dedicated cable
2.7.4 Connecting the FL-net dedicated cable

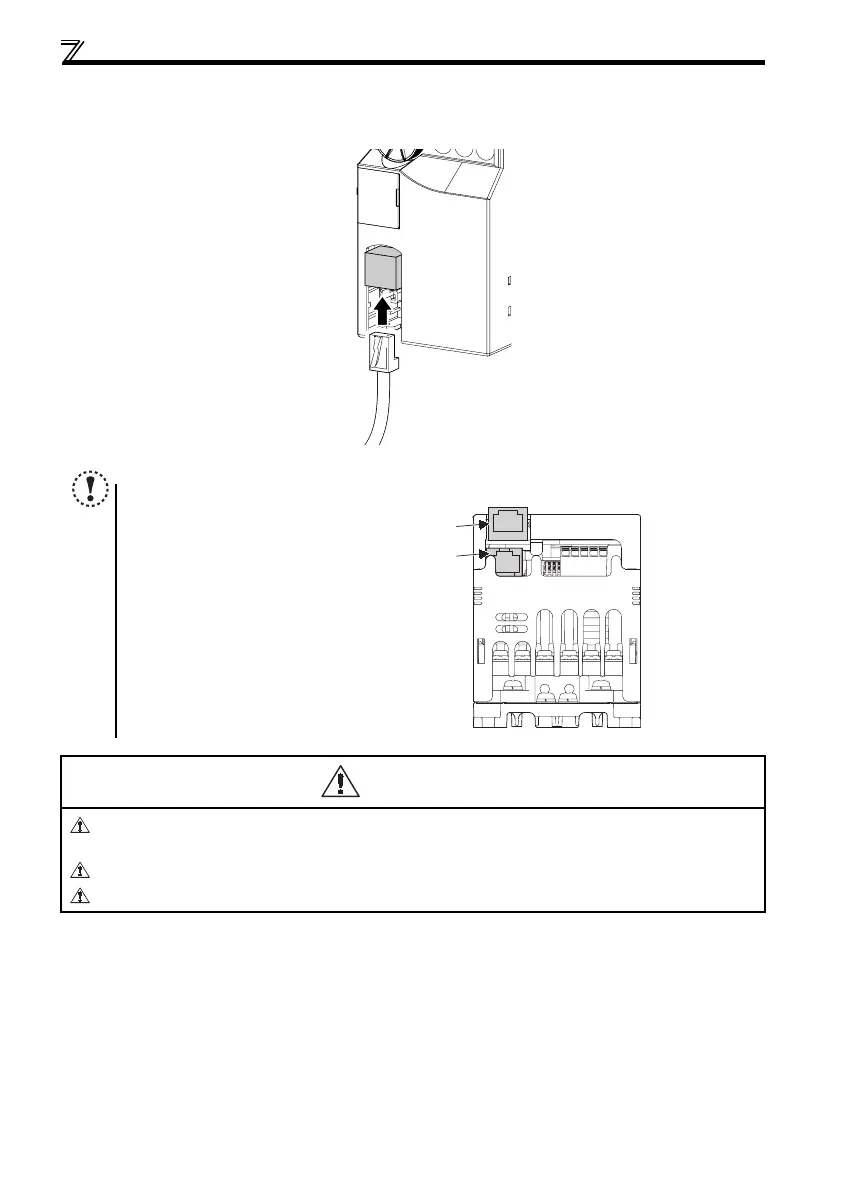

Connect the FL-net dedicated cable to the FL remote communication connector.
NOTE
y Do not connect the FL-net dedicated cable to the connector reserved for manufacturer settings.
CAUTION
Do not connect a parameter unit (FR-PU07, etc.) to the FL remote communication connector. Doing so may damage
the inverter.
Take caution not to subject the cables to stress.
After wiring, wire offcuts must not be left in the inverter. Wire offcuts can cause an alarm, failure or malfunction.
Connector reserved for manufacturer settings
FL remote communication connector
