1 PRODUCT CHECKING AND PARTS IDENTIFICATION
Unpack the inverter and check the capacity plate on the front cover and the rating plate on the inverter side face to ensure that
the product agrees with your order and the inverter is intact.
zInverter model
• Accessory
· Fan cover fixing screws (M3 × 35mm)
These screws are necessary for compliance with the EU Directive (
Refer to page 35 )
Capacity Quantity
FR-E720-1.5KNF to 3.7KNF, FR-E740-1.5KNF to 3.7KNF 1
FR-E720-5.5KNF to 15KNF, FR-E740-5.5KNF to 15KNF 2
Harmonic suppression guideline (when inverters are used in Japan)
All models of general-purpose inverters used by specific consumers are covered by "Harmonic suppression guideline for consumers who
receive high voltage or special high voltage". (For further details, refer to the Instruction Manual (Applied).)
Inverter model
Serial number
Capacity plate *
FR-E720-2.2KNF
E720 2.2 KNFFR
--
Represents the
inverter capacity [kW]
E720
Three-phase 200V class
E740
Three-phase 400V class
No. Voltage class
Rating plate *
Inverter model
Input rating
Output rating
Serial number
FR-E720-2.2KNF
Cooling fan
(Refer to the Instruction
Manual (Applied))
Combed shaped wiring cover
(Refer to the Instruction Manual
(Applied))
Main circuit terminal block
(Refer to page 6)
Front cover
(Refer to the Instruction Manual
(Applied))
Operation panel
(Refer to the Instruction Manual (Applied))
∗ Location of the capacity plate and the rating plate differs
according to the inverter capacity.
Refer to the outline dimension drawing.
(Refer to the
Instruction Manual (Applied))
LED (operation status
indication)
(Refer to the Instruction
Manual (Applied))
Node address switch
(Refer to page 14)
FL remote communication connector
(Refer to page 16)
Control circuit terminal
block
(Refer to page 6)

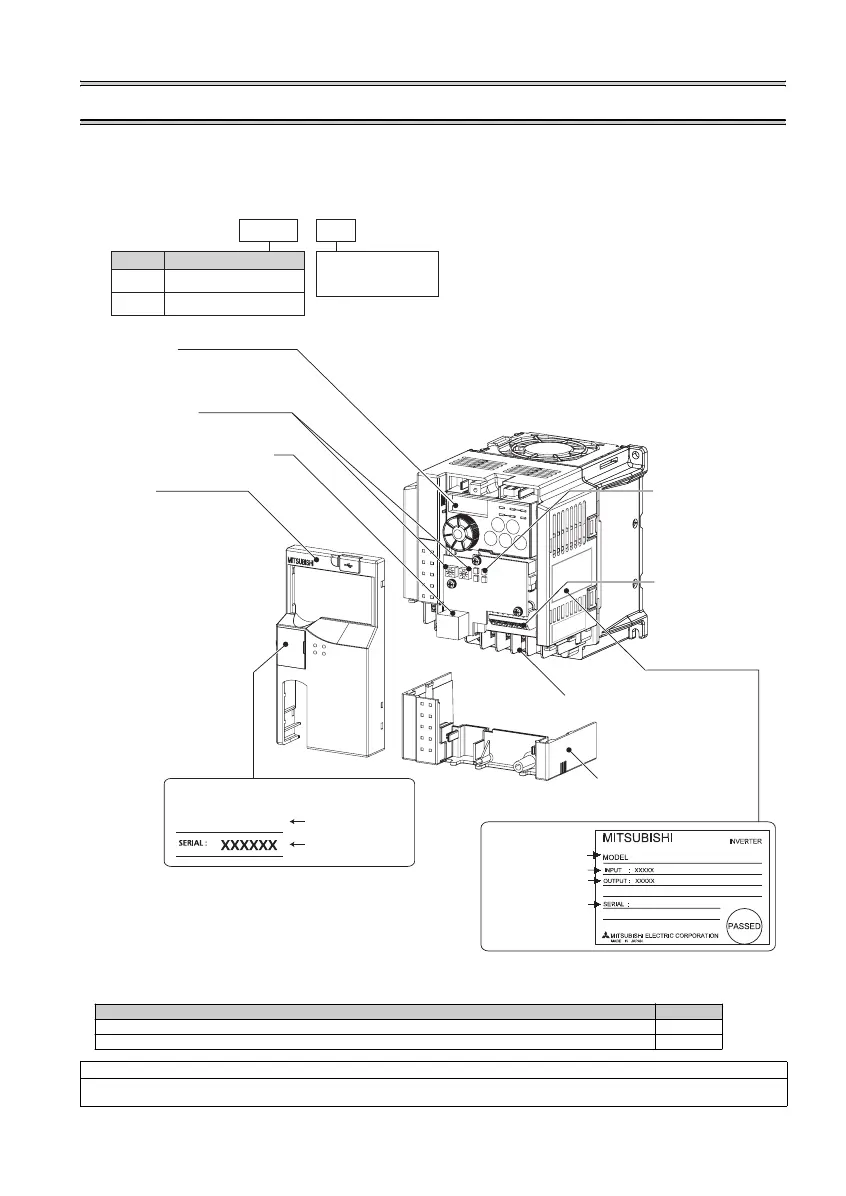

Example of FR-E720-2.2KNF
