7-4 EQUIPMENT - Diagnosis System
DIAGNOSIS SYSTEM

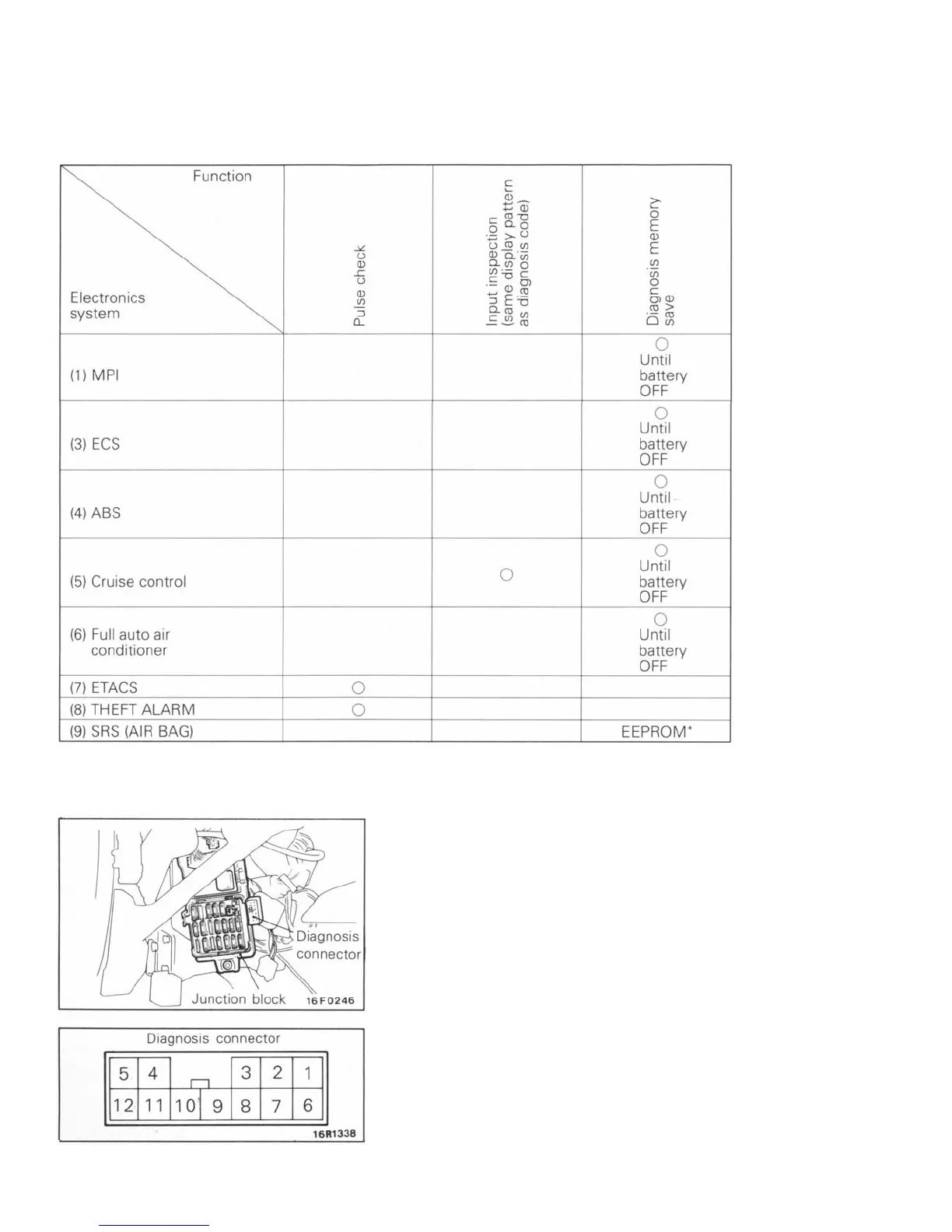

Diagnosis system is designed to improve serviceability and has the following functions
DIAGNOSIS CONNECTOR
The diagnosis connector for the following systems is located on the
right side of the junction block.
1. MPI
2. –
3. ECS
4. ABS
5. Cruise control
6. –
7. Full auto
A/C
8. SRS (Air Bag)
9. ET ACS (Theft Alarm)
10. Diagnosis control
11. Vehicle simulated speed
12. Earth
