CLUTCH
Clutch master cylinder
The clutch is the dry single-plate diaphragm type;
A hydraulic type with clutch booster is used for the
clutch control.
SPECIFICATIONS
Some models are equipped with a clutch damper in
the clutch tube to make changes in hydraulic pres-
sure smoother when the clutch is engaged and to re-
duce the maximum value for the clutch input torque.
Items Specifications
Clutch operating method Hydraulic type
Clutch disc
Type Single dry disc type
Facing diameter
0.0. x 1.0. mm (in.) 250 x 160 (9.8 x 6.3)
Clutch cover assembly
Type Diaphragm spring strap drive type
Setting load N (kg,lbs.) 9,200 (920, 2,024)
Clutch release cylinder
1.0. mm (in.) 19.05 (3/4)
Clutch master cylinder
1.0. mm (in.) 15.87 (5/8)
Clutch booster
Type Vacuum type, single
Effective dia. of power cylinder mm (in.) 101 (4.0)
Boosting ratio 1.7 [at 110 N (11 kg, 24 Ibs.)]
[Clutch pedal depressing force]
Vacuum tank
Capacity dm
3
(U.S. qts., Imp. qts.) 1.2 (1.27, 1.06)
Vacuum pipe
Check valve
Vacuum pipe

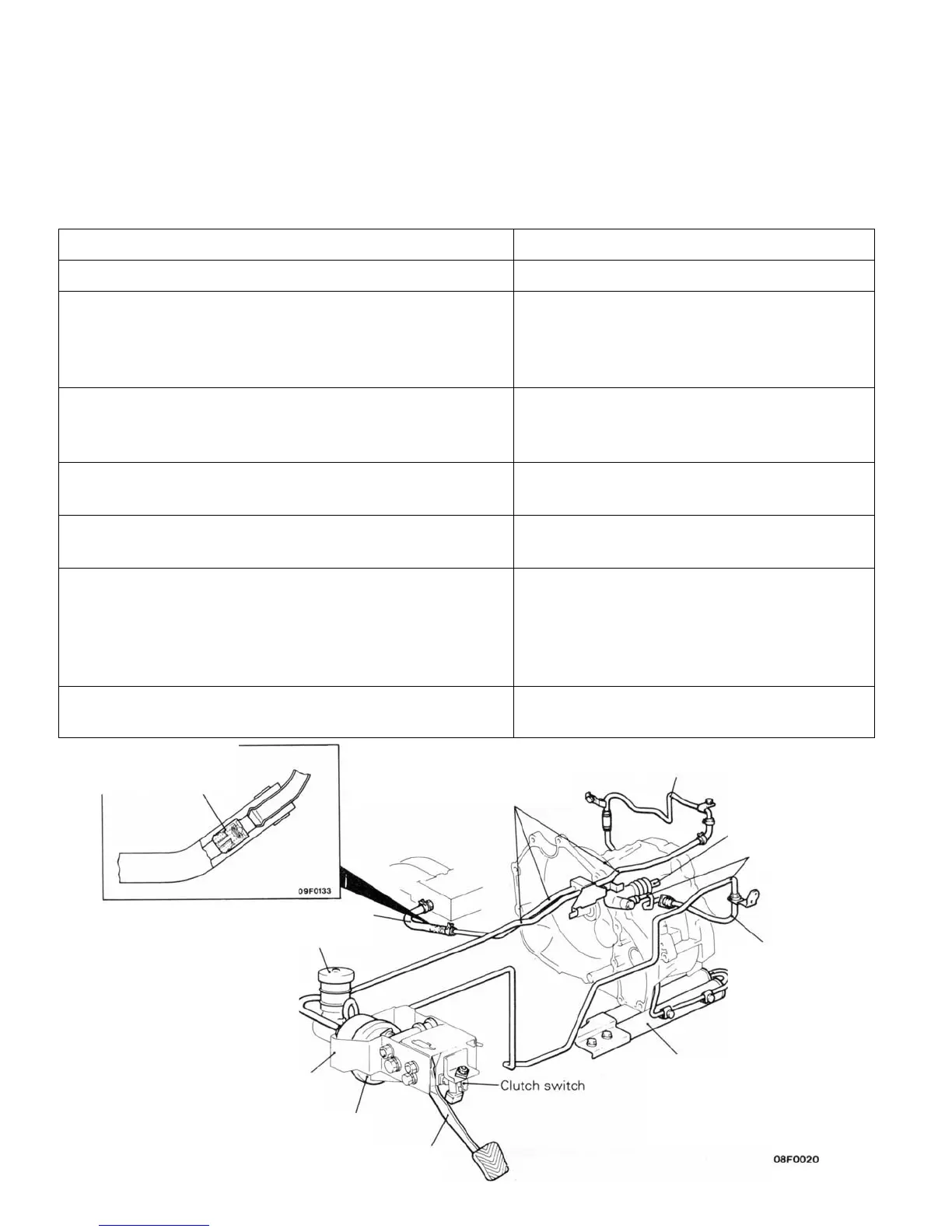

Clutch release
cylinder
Clutch tube
clutch hose
Vacuum hose
Pedal support bracket
Clutch booster
Clutch pedal
Clutch vacuum tank
-
