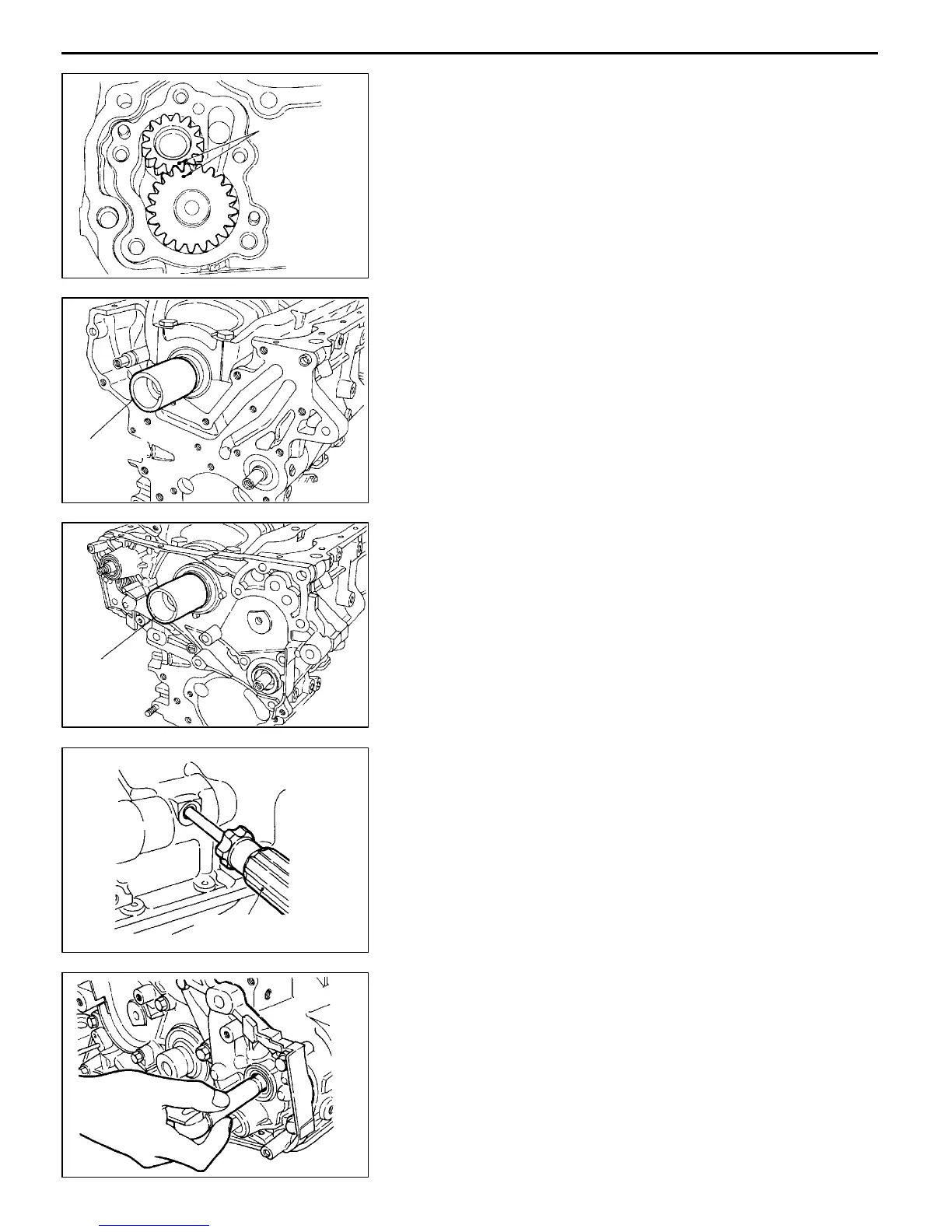

4D68 ENGINE (E-W) -
Front Case, Counter ba la nc e Shaft s and Oil Pan
11A-10-6
"
G
A
OIL PUMP DRIVEN GEAR / OIL PUMP DRIVE
GEAR INSTALLATION
(1) Apply engine oil amply to the gears and line up the
alignment marks.
"
H
A
FRONT CASE INSTALLATION
(1) Install the special tool at the front end of the crankshaft
and apply a thin coat of engine oil to the outer
circumference. In case an oil seal has been installed to
the front case, be sure to use the guide.
(2) Install the front case assembly via a new front case gasket
and temporarily tighten the flange bolts (other than those
for tightening the filter bracket.)
(3) Install the oil filter bracket via the oil filter bracket gasket
and temporarily tighten four bolts with washers.
(4) Tighten the front case bolts to the specified torque.
"
I
A
FLANGE BOLT INSTALLATION
(1) Insert a Phillips screwdriver [shank diameter 8 mm] into
the plug hole on the left side of the cylinder block to block
the counterbalance shaft then tighten the flange bolt.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
6LU0015
Alignment mark
6EN0746
MD998285
6EN0747
MD998285
6EN0564
Phillips
screwdriver
6EN0565
