Glow Plug, Fuel Inje c tion Pump And Inje c tion N oz zle
11A-5-1

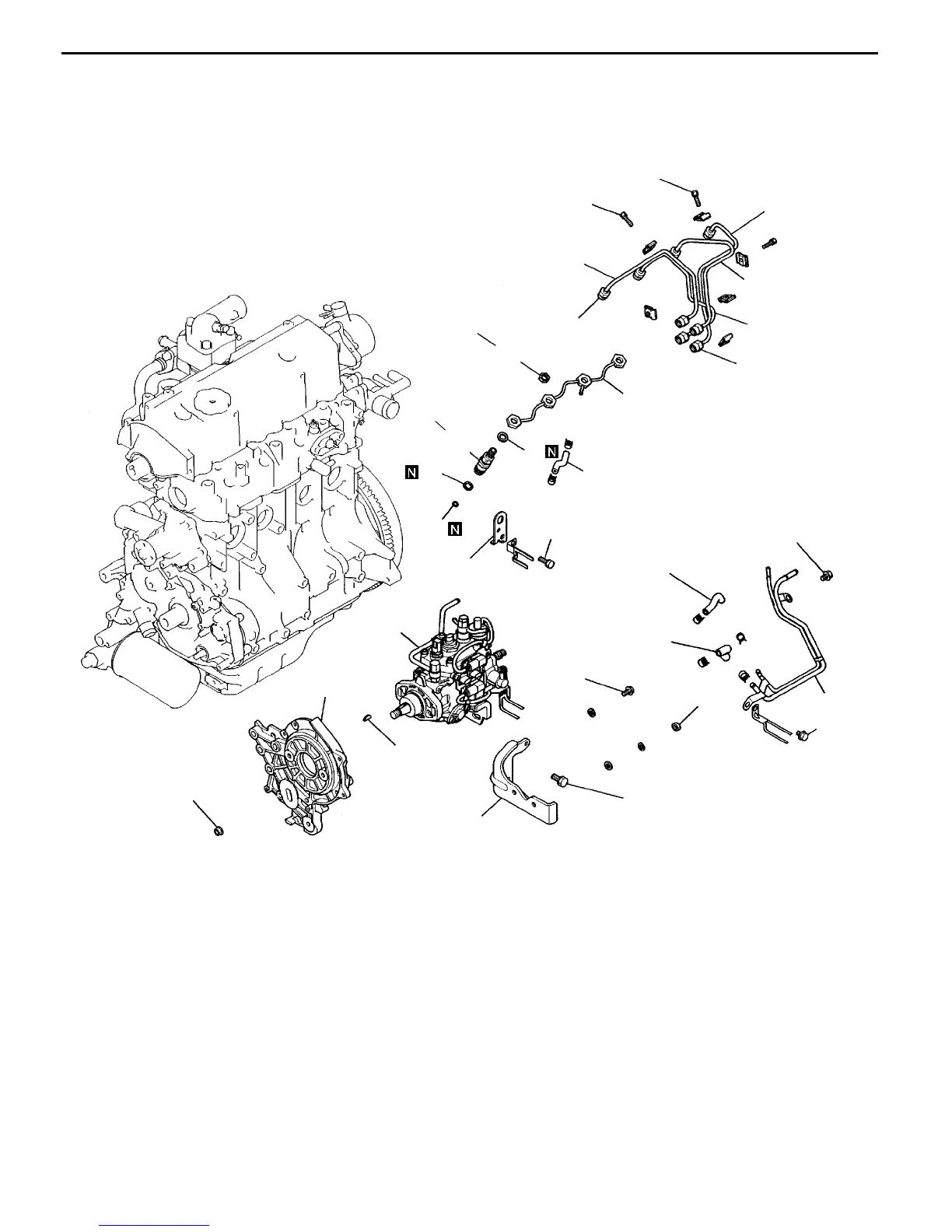

5. GLOW PLUG, FUEL INJECTION PUMP AND INJECTION
NOZZLE
REMOVAL AND INSTALLATION
DEN0887
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
18 Nm
18 Nm
13 Nm
13 Nm
23 Nm
23 Nm
35 Nm
54 Nm
29 Nm
29 Nm
29 Nm
5Nm
5Nm
Removal steps
A
A
""
D
A
1. Injection pipe No.1
A
A
""
D
A
2. Injection pipe No.2
A
A
""
D
A
3. Injection pipe No.3
A
A
""
D
A
4. Injection pipe No.4
5. Fuel hose
6. Fuel hose
7. Fuel hose
8. Fuel pipe
9. Engine hanger
A
B
"
10. Fuel injection pump
11. Key
12. Fuel injection pump stay
A
C
""
C
A
13. Fuel return pipe nut
14. Fuel return pipe
15. Fuel return pipe gasket
A
D
""
B
A
16. Injection nozzle
"
A
A
17. Holder gasket
"
A
A
18. Nozzle gasket
19. Fuel injection pump bracket
