4D68 ENGINE (E-W) -
Cylinder Head, Valves and Valve Springs
11A-9-1

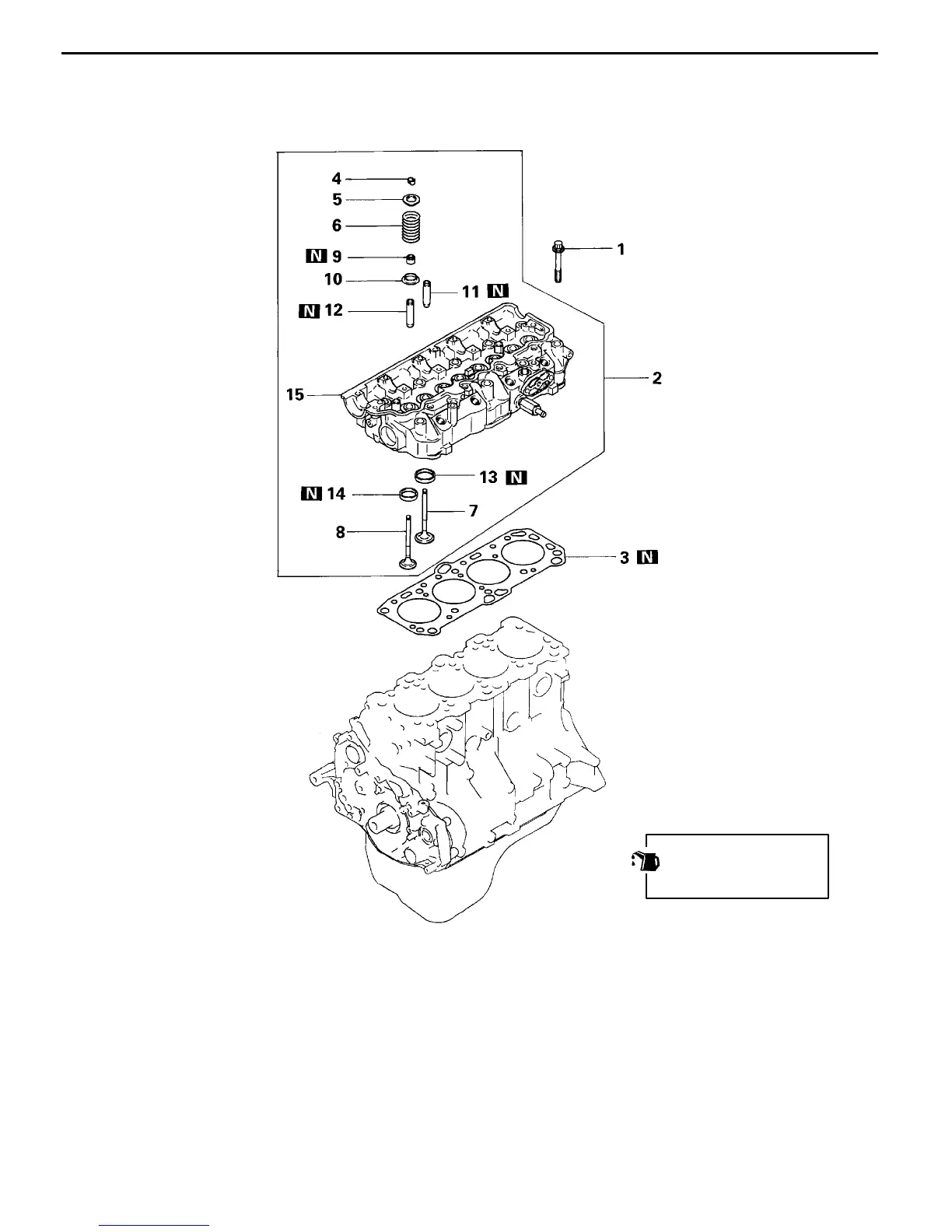

9. CYLINDER HEAD, VALVES AND VALVE SPRINGS
REMOVAL AND INSTALLATION
DEN0777
Apply engine oil to all
moving parts before
installation.
Removal steps
A
A
""
E
A
1. Cylinder head bolt
2. Cylinder head assembly
"
D
A
3. Cylinder head gasket
A
B
""
C
A
4. Valve spring retainer lock
5. Valve spring retainer
"
B
A
6. Valve spring
7. Intake valve
8. Exhaust valve
A
C
""
A
A
9. Valve stem seal
10. Spring seat
11. Intake valve guide
12. Exhaust valve guide
13. Intake valve seat
14. Exhaust valve seat
15. Cylinder head
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
