4D68 ENGINE (E-W) -
Timing Belt
11A-4-2
REMOVAL SERVICE POINTS
A
A
"

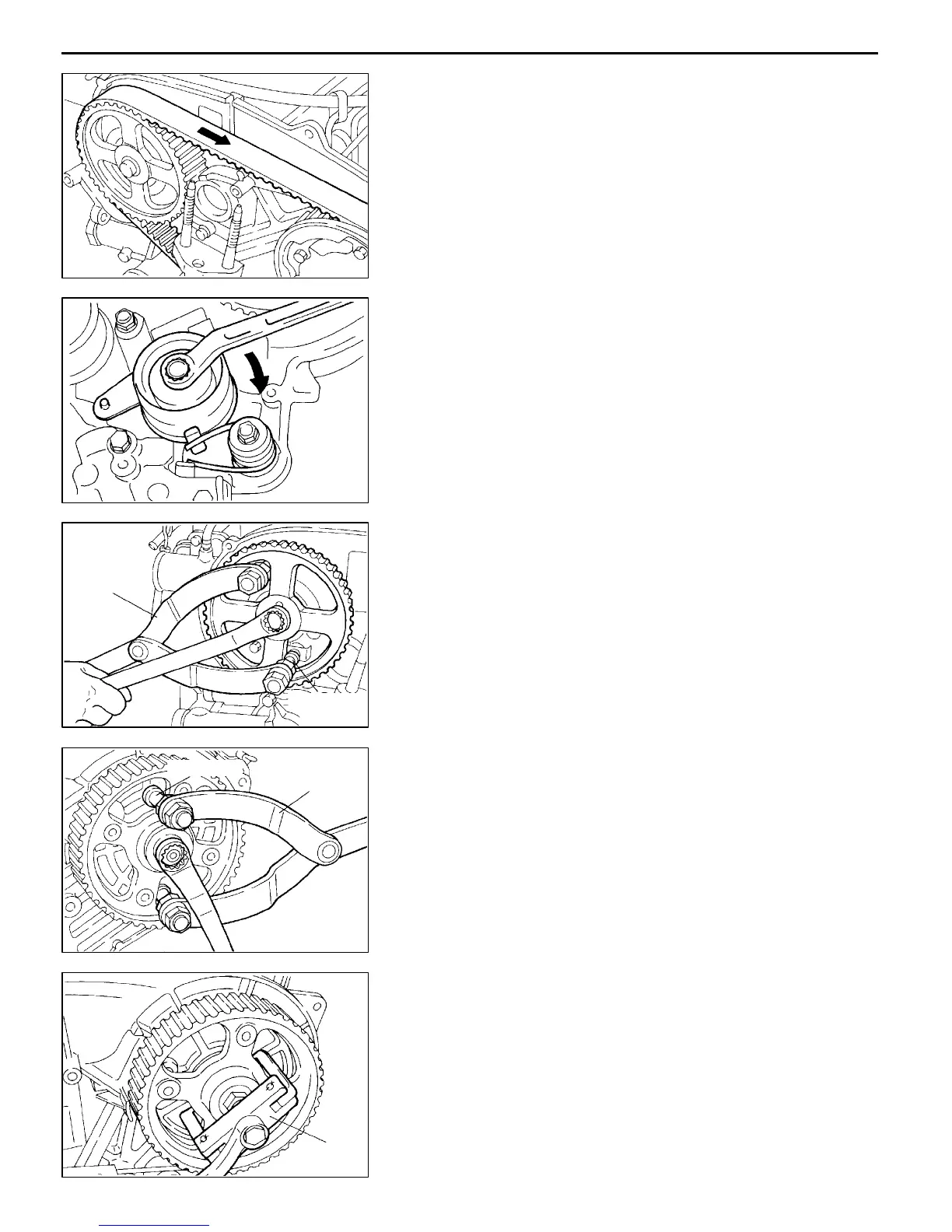

TIMING BELT REMOVAL
(1) Using chalk, etc., mark an arrow on the back of the timing
belt to indicate the direction of rotation. This is to ensure
correct installation of the belt in case it is reused.
(2) Attach a bolt to the front end face of the timing belt
tensioner. Fit an offset wrench onto the bolt and turn the
wrench downward as shown to tighten the tensioner
mounting bolt temporarily.
Caution
D
Use such a short bolt as would not come into
contact with the timing belt tensioner mounting
bolt at the rear end face when it is tightened.
(3) Remove the timing belt.
A
B
"
CAMSHAFT SPROCKET BOLT LOOSENING
A
C
"
INJECTION PUMP SPROCKET NUT LOOSENING
A
D
"
INJECTION PUMP SPROCKET REMOVAL
(1) Do not strike the sprocket and drive shaft to remove these
parts.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DEN0739
DEN0838
DEN0741
MB990767
MD998719
DEN0742
MB990767
MB998719
DFU0625
MD998388
