Mitsubishi 4D68

4D68 ENGINE (E-W) -
Pistons and Connecting Rods
11A-11-6

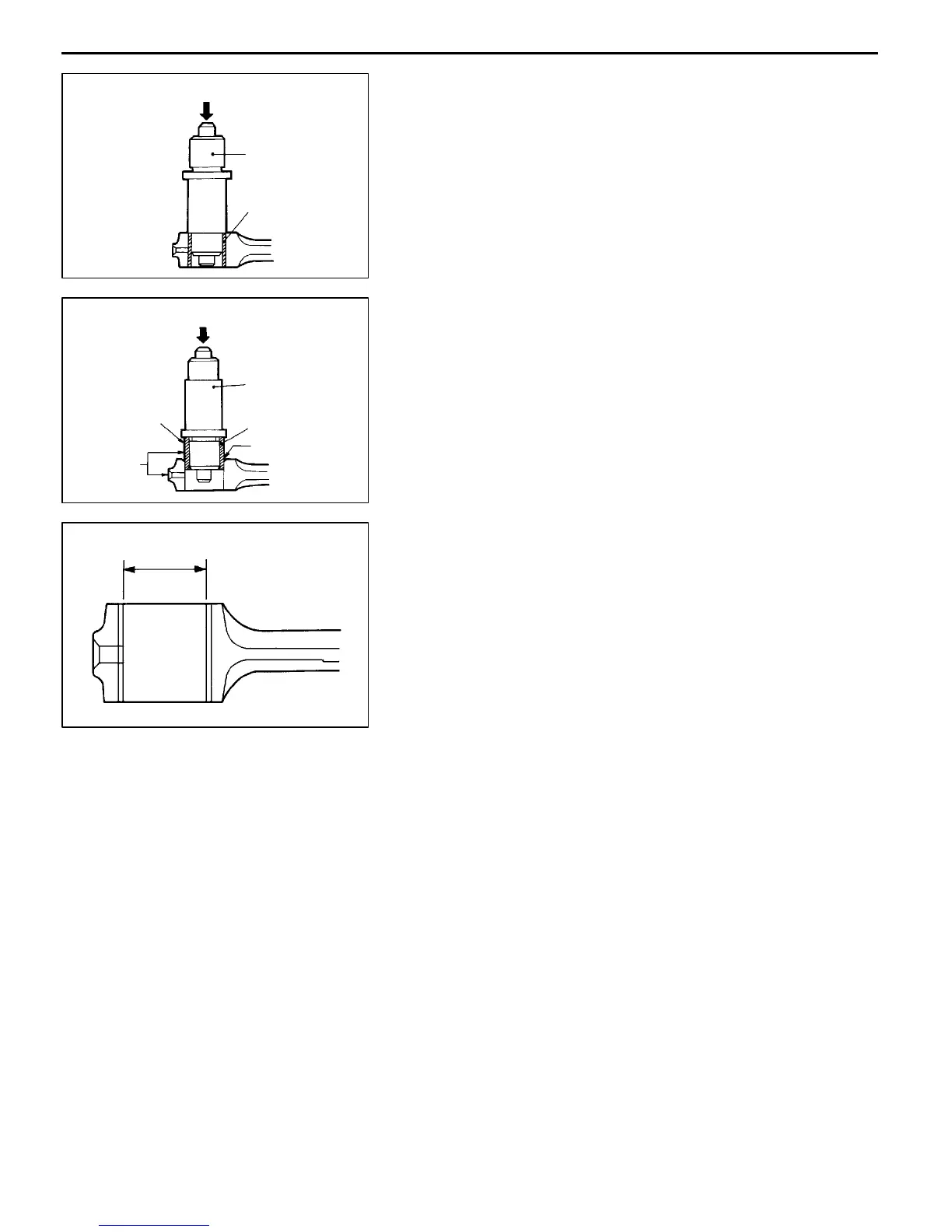

CONNECTING ROD BUSHING REPLACEMENT
(1) Using the special tool, remove the bushing.
(2) Using the special tool, install the bushing, aligning the
oil hole of the bushing with the oil hole at the small end
of the connecting rod.
(3) Finish the bushing I.D. to the standard value.
Bushing I.D. (d) standard value:
25.015 - 25.025 mm
Bend (Parallelism between big end center line and
small end center line): 0.05 mm
Twist (Deflection between big end center line and small
end center line): 0.1 mm
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DEN204
Removal
MD998702
Bushing
DEN205
Installation
MD998702
Bushing
Chamfered end
Apply oil
Align oil
holes
DEN206
d
