[1] LAN1 Settings
LAN1 settings vary depending on whether the AE-200/AE-50 is connected to a dedicated LAN or an existing LAN.
See the sections below for how to set the AE-200/AE-50 IP addresses, subnet mask, and gateway addresses.
Although the settings for LAN1 and LAN2 will appear on the screen, only the settings for LAN1 is required if the
BACnet
®
function is not used. Before making the settings, make sure that the LAN cable is connected to LAN1 port.
(1) LAN1 settings for connecting the AE-200/AE-50/EW-50 to a dedicated LAN
Settings for an AE-200
Note: See the procedures below when making LAN1 settings on the AE-50.
(1) Make sure that [AE200] is selected in the [Controller] section.
(2) Enter the AE-200’s IP address in the [IP Address] field. If the LAN has been newly set up, allocate IP
addresses to the AE-200 units in a sequential order starting with [192.168.1.1]. For example, the first
AE-200 unit will have an IP address of [192.168.1.1], the second AE-200 unit will have an IP address of
[192.168.1.2] and so on. (The same IP addresses cannot be used.)
Allocate IP addresses to the AE-50/EW-50 units in a sequential order starting with [192.168.1.211].
Note: The recommended IP address ranges are as follows.
AE-200: Between [192.168.1.1] and [192.168.1.40]
AE-50/EW-50: Between [192.168.1.211] and [192.168.1.249]
PC: Between [192.168.1.101] and [192.168.1.150]
Note: After the AE-200 IP address is changed, the AE-50/EW-50 power will be reset.
Note: A communication error “6920” will be detected by the AE-50/EW-50 when the AE-200’s IP address is changed
with the AE-50/EW-50 connected. In the [Communication error detection] section in the [Network] screen,
change the communication error detection setting for the previous IP address from “Detect” to “Do not detect.”
(3) Enter [255.255.255.0] in the [Subnet Mask] field (only when the IP address is [192.168.1.*]).
Note: If [255.255.255.0] is entered, set the IP addresses of all AE-50 units to [192.168.1.*].
Touch to go to the previous
page.

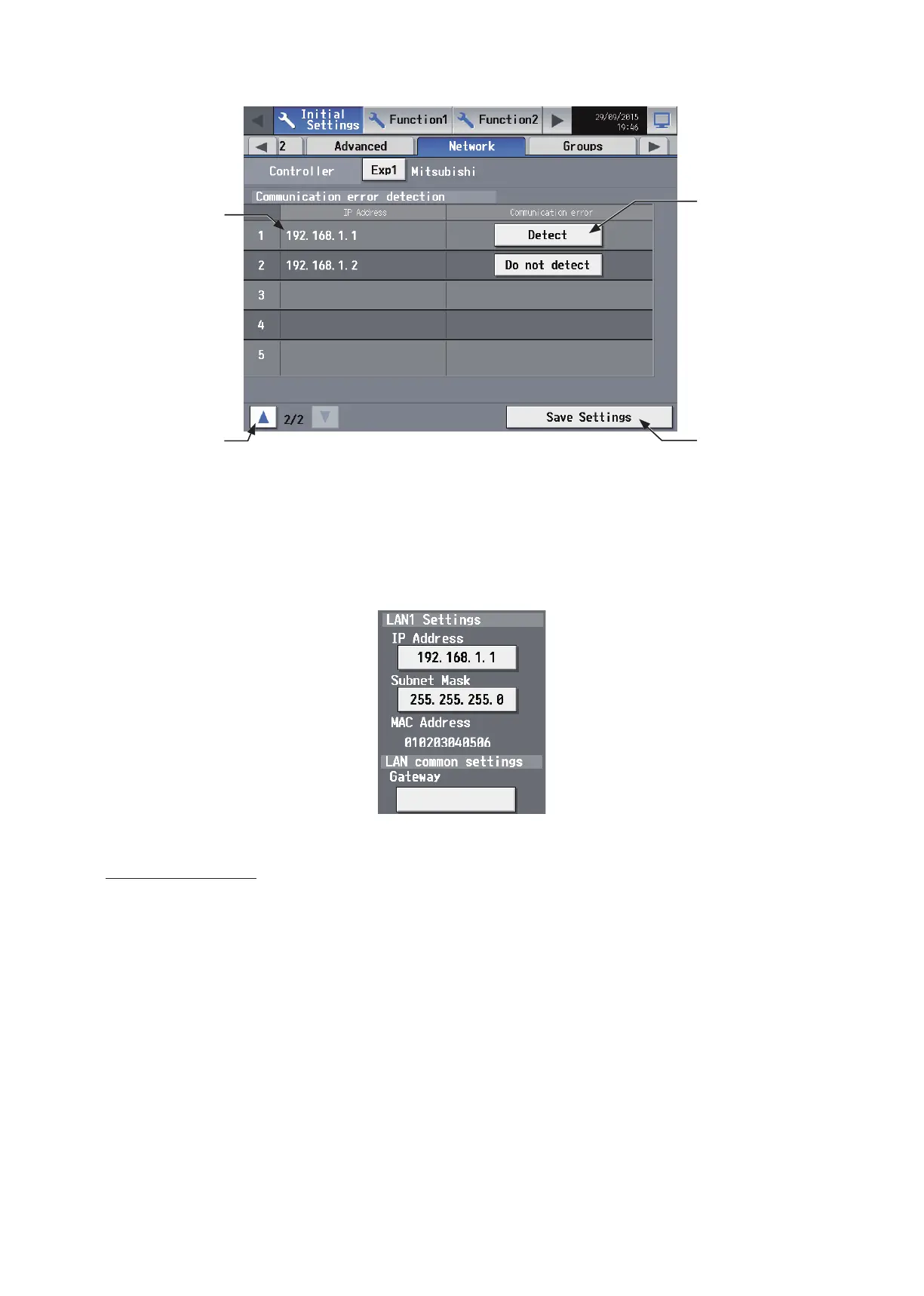

Detect communication
error
Save Settings
Touch to save the changes
made.
IP address
To Next Page
