6-3. Basic settings
6-3-1. System Configuration settings
Make the configuration settings of centralized controllers and expansion controllers on the Initial Setting Tool.
Click [Basic Settings] > [System Configuration] to access the system configuration settings screen.
Note: Connection settings can be made for up to 40 centralized controllers.
AE-200 units set as the [AE-200 (Billing)] or [AE-200 (No M-NET)] will not be included in this 40 controllers.
(1) Clickthe“Controllertype”pull-downmenu(▼)andselect[AE-200],[AE-200(NoM-NET)],[AE-200(Billing)],
or [EW-50].
(2) Enter the IP address in “Destination IP address”.
(3) Click the “Expansion controller” checkbox.
(4) Enter the IP address of the AE-50/EW-50 in “Destination IP address”.
(5) If there are multiple AE-200/EW-50 units, click the “Centralized controller” checkbox and repeat procedures
1 to 4.
(6) Click [Save] after completing the settings.
Note: The selectable options vary depending on the type of centralized controller selected in the “Controller type” of
Centralized controller.
Note: The AE-200/AE-50/EW-50 IP address and expansion controller connection settings cannot be changed in this setting
screen.
To set the AE-200/AE-50/EW-50 IP address, set on the AE-200/AE-50’s LCD, the web browser for initial settings, or
the quick IP address setting switch (EW-50 only).

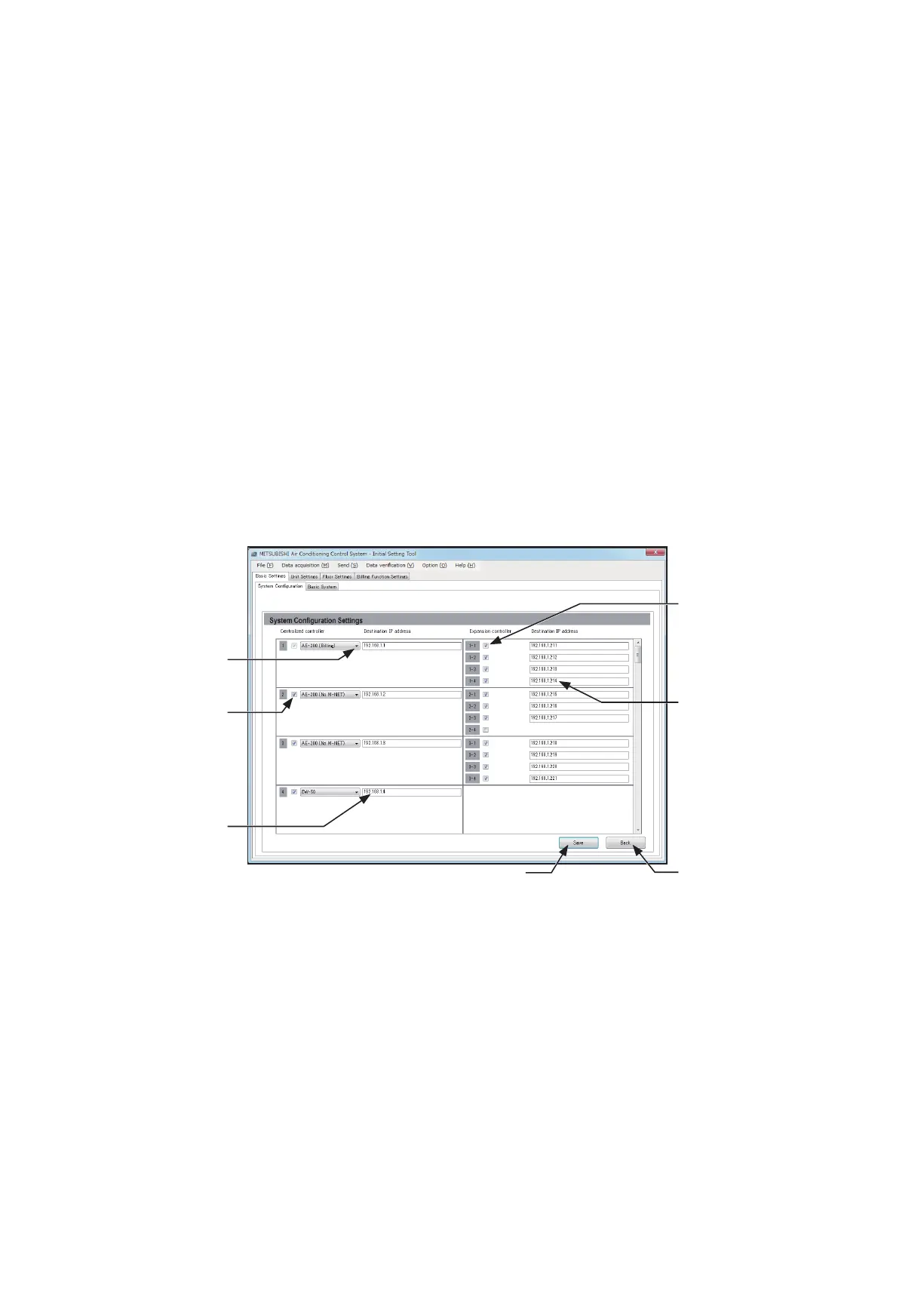

Controller type
Set the centralized controller
type.
Centralized controller
Check the checkbox to add
a centralized controller.
The checkbox of the first
row is checked and cannot
be unchecked.
Destination IP address
Set the IP address of the
centralized controller.
Save
Click to save the settings.
Expansion controller
Check the checkbox to add
an expansion controller.
Destination IP address
Set the IP address of the
expansion controller.
Back
Click to display the previous
settings without making any
changes.
