5-1-5. Network
Touch [Initial Settings] in the menu bar, and then touch [Network].
Make necessary basic system settings such as LAN settings, M-NET settings, and external input settings for each
AE-200, AE-50, and EW-50, and then touch [Save Settings]. A message will appear asking whether or not to restart
the controller. Touch [OK] to restart the AE-200/AE-50 to reflect the changes.
Note: The Network settings may not be accessible if logged in as a building manager.
Note: The [Controller] setting will appear (only on the AE-200’s LCD) when the [System Exp] setting on the [Unit Info.] screen is set
to [Expand]. Switch the [Controller] setting between [AE200] and [Exp1] through [Exp4] to make settings for each AE-200,
AE-50, and EW-50 individually.
Important
● Network settings for the AE-50/EW-50 must be made with the AE-50/EW-50 properly connected to ensure proper settings.
Those settings made without the connection of AE-50/EW-50 will not be reflected.

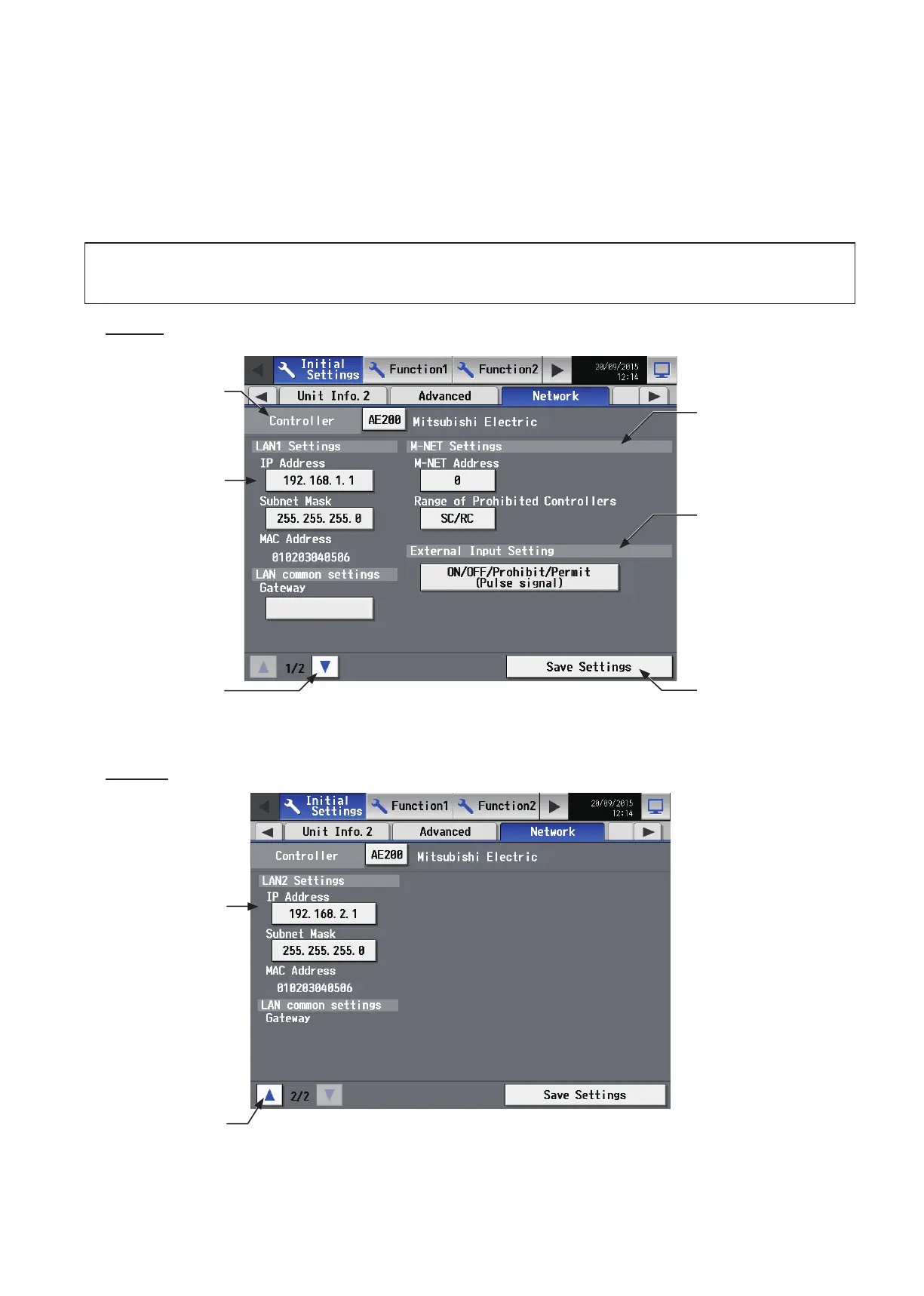

1st page
2nd page
*1 BACnet
®
is a registered trademark of ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers, INC.).
Controller
Select [AE] to make
settings for AE-200, and
select [1], [2], [3], or [4]
to make settings for each
AE-50/EW-50.
LAN1 Settings
Set the IP address, subnet
mask, and gateway address.
Touch to go to the next
page.
M-NET Settings
Set the M-NET address
and range of prohibited
controllers.
External Input Setting
Set the external signal input
mode.
Save Settings
Touch to save the changes
made.
Touch to go to the previous
page.
LAN2 Settings
Exclusively used for
BACnet
®
function
*1
.
To Next Page
